Honeywell CC-TAIN01 51306513-175 Replacement for C300

Product Overview

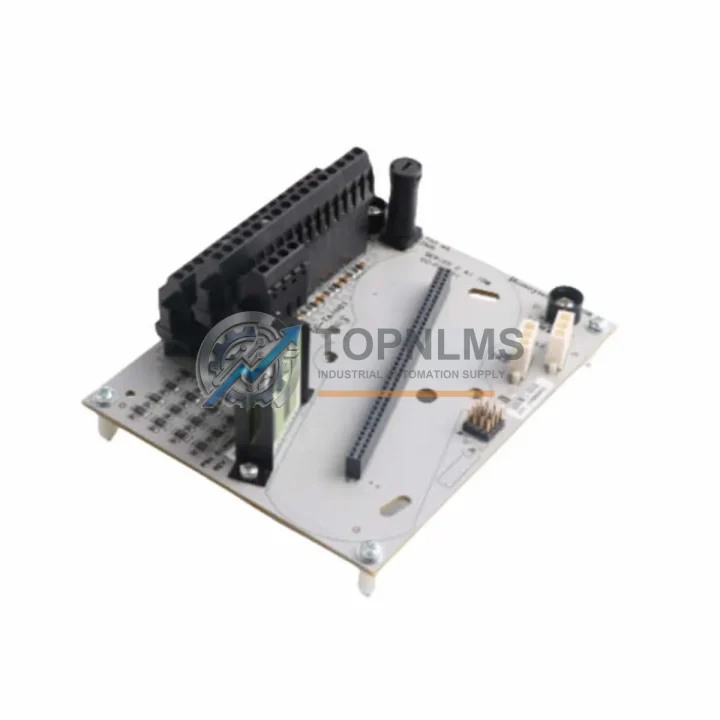

Honeywell CC-TAIN01 51306513-175 Replacement for C300: Seamless DCS Migration & Upgrade Solution

The Honeywell CC-TAIN01 (Part No. 51306513-175) is a 16-channel analog input module designed for the Experion PKS C300 Controller Series. As legacy DCS installations age and original Honeywell TDC 3000, TPS, or early Experion R100/R200 systems approach end-of-life, plant engineers increasingly require a direct, drop-in replacement that preserves existing field wiring, marshalling cabinet layouts, and SCADA/DCS program logic without a full system overhaul.

TOPNLMS maintains verified stock of the CC-TAIN01 51306513-175 to support urgent replacement, scheduled turnaround maintenance, and phased migration projects across refining, petrochemical, power generation, and advanced manufacturing facilities.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy DCS or aging Experion PKS installation to a modernized C300 architecture involves more than swapping a single module. The CC-TAIN01 51306513-175 is typically deployed alongside a coordinated set of components that together ensure electrical, mechanical, and software compatibility throughout the upgrade process.

In most retrofit projects, the CC-TAIN01 mounts directly onto the CC-TAIX11 or CC-TAIX51 IOTA (Input/Output Termination Assembly), which serves as the field-wiring interface between the marshalling cabinet and the C300 module. Retaining the existing IOTA eliminates the need to re-terminate field cables — a critical advantage when minimizing plant downtime during a live cutover. Where the IOTA itself is degraded or incompatible, the CC-TAIX11 can be replaced independently without disturbing upstream field wiring.

The C300 controller module — typically the CC-PCF901 or CC-PCF902 — communicates with the CC-TAIN01 over the C300 backplane bus and routes process data upstream via the Fault Tolerant Ethernet (FTE) network. In redundant configurations, a paired CC-TAIN01 module operates in hot-standby mode, ensuring bumpless transfer in the event of a module fault. The FTE network itself is typically supported by Cisco IE series industrial Ethernet switches, which must be verified for compatibility with the plant’s existing FTE topology before cutover.

For installations migrating from older TDC 3000 or TPS systems, the CC-PDOB01 power distribution module and the CC-PWR001 C300 power supply module are commonly replaced in the same maintenance window, as aging power infrastructure is a frequent root cause of spurious module faults. Ensuring the C300 chassis receives clean, regulated 24 VDC is essential for stable analog signal acquisition across all 16 channels of the CC-TAIN01.

On the software side, the CC-TAIN01 is configured and commissioned using Honeywell Experion Control Builder (R400 or later). During migration, existing control strategies from legacy platforms are typically re-imported or rebuilt in Control Builder, with channel assignments mapped to the new module’s I/O database. Engineers performing this work should verify that HART pass-through is enabled at the channel level if smart field instruments — such as Rosemount 3051 pressure transmitters or Yokogawa EJA series — are connected and require device-level diagnostics.

In projects where physical cabinet space is constrained, the compact form factor of the CC-TAIN01 within the standard C300 chassis allows engineers to consolidate I/O density compared to older, bulkier legacy modules. Where signal isolation is required between field loops and the DCS backplane — particularly in high-noise environments or when integrating third-party instrumentation — signal isolators or loop-powered barriers (such as those from the MTL or P+F series) are commonly installed at the marshalling level without impacting the CC-TAIN01’s channel configuration.

For sites requiring a complete C300 I/O subsystem refresh, the CC-TAON01 analog output module and CC-TDIL01 digital input module are frequently ordered alongside the CC-TAIN01 to standardize the I/O module population across the C300 chassis, simplifying spare parts management and reducing the number of unique module types held in site inventory.

Retrofit Guidance FAQ

Q: Can the CC-TAIN01 51306513-175 be installed without re-terminating field wiring?
A: Yes — provided the existing IOTA (CC-TAIX11 or CC-TAIX51) is in serviceable condition and correctly matched to the C300 chassis slot. Field cables terminate at the IOTA, not the module itself, so the CC-TAIN01 can be hot-swapped or replaced during a planned outage without disturbing marshalling wiring.

Q: Is the CC-TAIN01 compatible with HART field instruments?
A: Yes. The CC-TAIN01 supports HART communication on each analog input channel. HART pass-through must be enabled in Experion Control Builder at the channel level. Ensure the Experion server is running a HART-compatible FDM (Field Device Manager) version for full device diagnostics.

Q: What Experion PKS software version is required for commissioning?
A: Experion Control Builder R400 or later is recommended. Earlier releases (R300 and below) may not fully support the CC-TAIN01’s diagnostic and redundancy features. Confirm the server’s Experion release level before scheduling the cutover.

Q: Can the CC-TAIN01 operate in a redundant configuration?
A: Yes. Two CC-TAIN01 modules can be paired in a redundant I/O configuration within the C300 chassis. The primary and secondary modules synchronize over the backplane, providing bumpless transfer with no process interruption in the event of a single module failure.

Q: What are the physical space requirements for installation?
A: The CC-TAIN01 occupies a single slot in the standard C300 I/O chassis. No additional DIN rail space or external enclosure is required. Verify that the target chassis slot is unoccupied and that the backplane connector is undamaged before insertion.

Q: How do I migrate control logic from a TDC 3000 or TPS system to the C300 with this module?
A: Control strategies must be rebuilt or imported into Experion Control Builder. Channel tag assignments should be remapped to the CC-TAIN01’s I/O database. Honeywell’s Migration Toolkit (where licensed) can assist with automated tag translation. A full loop check against each of the 16 channels is recommended before returning the system to automatic control.

Q: What communications protocol does the CC-TAIN01 use?
A: The CC-TAIN01 communicates with the C300 controller over the C300 backplane bus. Process data is transmitted upstream to the Experion server via Fault Tolerant Ethernet (FTE), Honeywell’s proprietary redundant Ethernet architecture based on IEEE 802.3.

Warranty Assurance

Every CC-TAIN01 51306513-175 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-point pre-shipment inspection covering physical integrity, connector condition, firmware label verification, and functional power-on testing where applicable. Units that do not meet our quality threshold are quarantined and not offered for sale.

In the event of a confirmed module defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a full refund — whichever the customer prefers — with priority handling to minimize plant downtime. Our after-sales response target is within 24 business hours of a warranty claim submission.

For urgent plant shutdowns or unplanned outages, TOPNLMS maintains ready stock of the CC-TAIN01 and related C300 I/O modules to support same-day or next-business-day dispatch from our Xiamen warehouse. Express international freight options (DHL, FedEx, UPS) are available for time-critical shipments.

Customers are encouraged to contact our technical team before purchase to confirm compatibility with their specific Experion PKS revision, chassis configuration, and IOTA type. We provide pre-sales technical consultation at no charge to ensure the correct module is ordered the first time.
