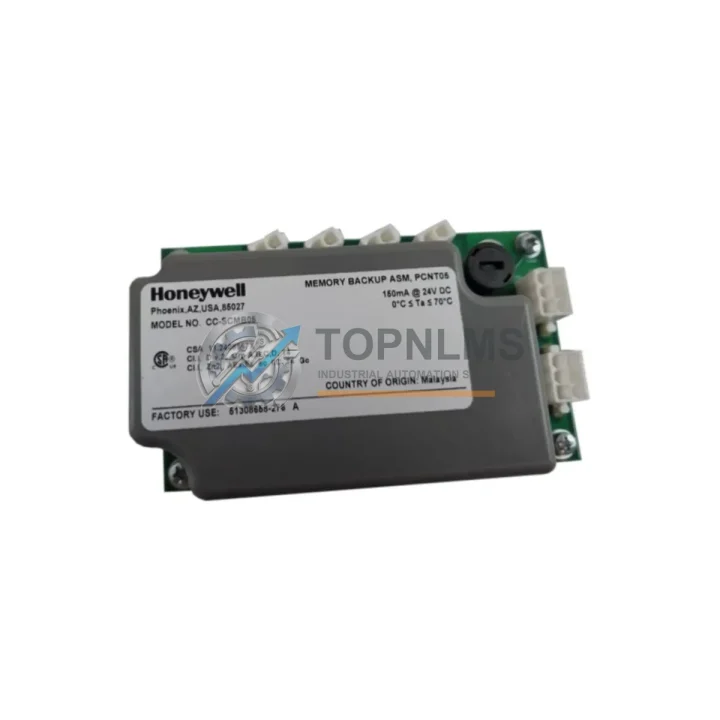

Honeywell CC-SCMB05 FF H1 Replacement for Experion PKS C300

Product Overview

Honeywell CC-SCMB05 FF H1 Replacement for Experion PKS C300: Seamless Migration & Upgrade

The Honeywell CC-SCMB05 is a FOUNDATION Fieldbus H1 Communication Module designed for the Experion PKS C300 Controller platform. As legacy DCS installations age and original CC-SCMB05 units reach end-of-service life, plant engineers face the challenge of sourcing verified replacement modules that maintain full compatibility with existing field wiring, segment topology, and control strategies — without forcing a full system overhaul.

TOPNLMS supplies tested, ready-to-ship CC-SCMB05 modules with a 12-month warranty, enabling maintenance teams to execute a smooth, low-risk swap-out during planned or emergency shutdowns. Whether you are replacing a failed module, building a critical spare inventory, or executing a phased migration from an older Honeywell TDC 3000 or PlantScape system to the Experion PKS architecture, the CC-SCMB05 slots directly into the C300 Controller Carrier without requiring re-engineering of the H1 segment wiring or reconfiguration of the FOUNDATION Fieldbus device descriptors.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CC-SCMB05 replacement or system migration rarely involves a single module in isolation. In practice, plant engineers working on Experion PKS C300 upgrades typically address several interdependent components in the same maintenance window to minimize repeat shutdowns and ensure system coherence.

The CC-SCMB05 works in conjunction with the C300 Controller Module (CC-PCNT01), which serves as the primary process controller on the carrier. When migrating from a TDC 3000 environment, the CC-PCNT02 Enhanced C300 Controller is often installed alongside the CC-SCMB05 to take advantage of improved scan rates and expanded I/O capacity. The carrier itself — typically the CC-PWRR01 Redundant Power Supply Module — must be verified for compatibility with the updated module revision to ensure stable backplane power delivery.

On the field side, the H1 segment connected to the CC-SCMB05 may include FOUNDATION Fieldbus instruments such as pressure transmitters, flow meters, and valve positioners. These devices communicate via the same FF-H1 protocol and do not require reconfiguration when the communication module is swapped, provided the segment terminator and coupler — such as the MTL Fieldbus Segment Coupler or equivalent — remain in place and correctly terminated.

For plants that also operate HART-based I/O subsystems alongside their FF segments, the CC-TAIX11 Analog Input Module and CC-TAOX11 Analog Output Module are commonly found in the same C300 cabinet. Ensuring these modules are at compatible firmware revisions before and after the CC-SCMB05 swap prevents unexpected I/O scan conflicts during commissioning.

Where the migration scope extends to the control network layer, the Honeywell ESVT Ethernet Switch or equivalent managed switch supporting the FTE (Fault Tolerant Ethernet) backbone should be reviewed. The CC-SCMB05 relies on the C300 controller’s FTE connection for supervisory communication with the Experion PKS server, so network topology integrity is a prerequisite for a clean cutover.

In larger migration projects involving multiple C300 cabinets, the CC-SCMB05 is often ordered in parallel with CC-SCMB01 or CC-SCMB02 units being phased out, allowing engineering teams to maintain a mixed-revision environment during the transition period before full standardization on the -05 revision. Additionally, Honeywell Control Builder software licenses and programming cables compatible with the C300 platform should be confirmed available on-site before the maintenance window begins, as firmware verification and module commissioning require a live connection to the Experion PKS server.

Retrofit Guidance FAQ

Q: Can I replace a CC-SCMB01 or CC-SCMB02 with a CC-SCMB05 without rewiring the H1 segment?
A: Yes. The CC-SCMB05 uses the same H1 segment terminal interface on the C300 carrier. Existing field cables, segment terminators, and FF device wiring can be reused without modification. Only the module itself is swapped.

Q: Will my existing FOUNDATION Fieldbus device configurations survive the module swap?
A: In most cases, yes. The Experion PKS server retains the FF device descriptors and function block configurations in the project database. After the CC-SCMB05 is installed and powered, the server re-establishes communication with field devices automatically. A full download from Control Builder may be required if the module revision changes the firmware baseline.

Q: Is the CC-SCMB05 compatible with redundant C300 controller configurations?
A: Yes. The CC-SCMB05 supports redundant C300 controller pairs. Both the primary and secondary C300 modules on the carrier can access the FF H1 segments managed by the CC-SCMB05, ensuring bumpless transfer during controller failover.

Q: What is the physical installation space requirement?
A: The CC-SCMB05 occupies one module slot on the C300 Controller Carrier. No additional cabinet space is required beyond the existing carrier slot. Cabinet depth and DIN rail clearance remain unchanged.

Q: Does the CC-SCMB05 support both FF-H1 segments simultaneously?
A: Yes. The module provides two independent FF H1 segment ports, each capable of supporting up to 16 field devices per segment under standard loading conditions, subject to segment power budget and cable length constraints.

Q: What communication protocol does the CC-SCMB05 use for supervisory communication?
A: The CC-SCMB05 communicates with the C300 controller via the carrier backplane. The C300 controller in turn communicates with the Experion PKS server over the FTE (Fault Tolerant Ethernet) network. No additional protocol configuration is required for the CC-SCMB05 itself.

Q: How do I verify the module is functioning correctly after installation?
A: Use Honeywell Control Builder to check the module status in the C300 hardware tree. The CC-SCMB05 should report as online with both H1 segment ports active. Field device communication status can be verified in the Experion PKS Station display or via the FF diagnostics view in Control Builder.

Warranty Assurance

Every CC-SCMB05 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes a functional verification check to confirm power-up integrity, communication port status, and physical condition. Units are packaged in anti-static protective packaging with appropriate cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed defect. Our after-sales response target is within 24 business hours of claim submission. We maintain stock of CC-SCMB05 and related C300 platform modules to support rapid replacement dispatch, minimizing the impact on your plant operations.

For procurement teams requiring documentation, we can provide product datasheets, test records, and shipping declarations upon request. All units are shipped with commercial invoice and packing list. Export compliance documentation is available for international shipments.

TOPNLMS has been supplying industrial automation components to process plants, OEMs, and system integrators across Asia, the Middle East, and Europe. Our inventory is sourced through verified supply channels, and we do not supply counterfeit or refurbished-as-new components.
