Honeywell CC-PDOD51 51454408-175 Replacement for C300

Product Overview

Honeywell CC-PDOD51 51454408-175 Replacement for C300: Seamless Migration & Upgrade Solution

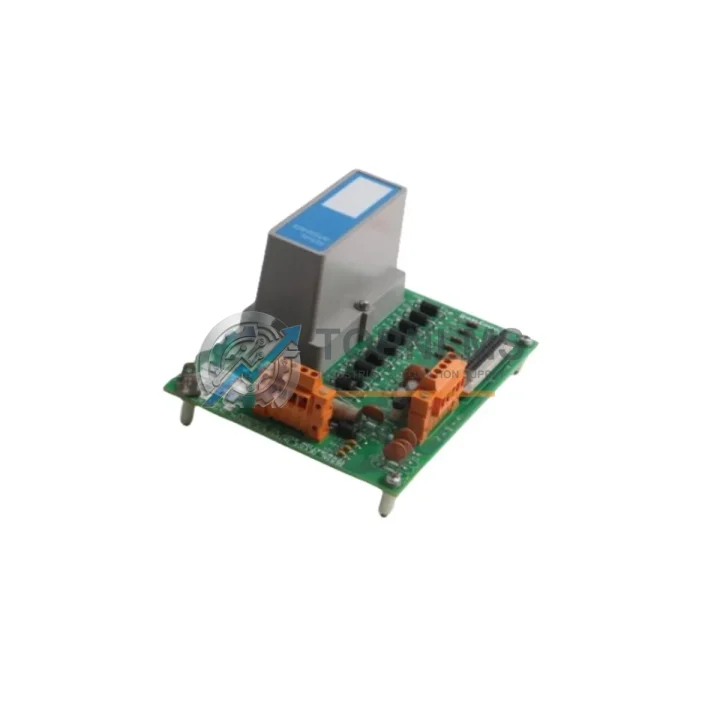

The Honeywell CC-PDOD51 (P/N 51454408-175) is a 24 VDC Digital Output Module engineered for the Experion PKS C300 Controller platform. As legacy DCS installations age and original spare inventories deplete, facilities running Honeywell TDC 3000, PlantScape, or early Experion R100–R310 architectures increasingly require a verified, drop-in replacement that preserves existing wiring, I/O channel assignments, and control logic without forcing a full system re-engineering cycle. The CC-PDOD51 answers that need directly.

This module occupies a standard C300 I/O Link slot within the CC-PCNT01 / CC-PCNT02 I/O Link Termination Assembly chassis, maintaining the same physical footprint and DIN-rail or rack-mount profile as the original unit. Field wiring connected to the CC-TBRC01 or CC-TBRC02 Remote Termination Panel requires no re-termination: the 24 VDC sourcing output channels map directly to the existing terminal block layout, eliminating the risk of mis-wiring during a live-plant swap.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful C300 platform migration rarely involves a single module swap. In practice, engineers replacing the CC-PDOD51 are simultaneously auditing adjacent components to eliminate all single points of failure before returning the loop to service. The most common companion items addressed during the same maintenance window include the CC-PDID51 24 VDC Digital Input Module, which shares the same I/O Link slot architecture and termination panel, and the CC-PAIH01 Analog Input High-Level Module used for 4–20 mA process variable acquisition on the same C300 node.

Where the control cabinet houses a CC-PWR001 or CC-PWR002 24 VDC Power Supply Module, technicians should verify bus voltage stability under the full channel load of the replacement DO module before commissioning. Facilities that have migrated from TDC 3000 Highway to the Experion FTE (Fault Tolerant Ethernet) backbone often also require a CC-TCF901 FTE Interface Module to maintain redundant controller communications during the cutover window.

For sites still operating Honeywell SM Series Safety Manager I/O in parallel with the C300 process controller, the CC-SDOB01 Safety Digital Output Module may be required alongside the CC-PDOD51 to maintain SIL-rated loop integrity. Programming engineers using Honeywell Control Builder R500 or later will find that the replacement module is auto-discovered on the I/O Link scan without requiring manual hardware configuration changes, significantly reducing the commissioning time from hours to minutes.

Cabinet-level integration should also account for the CC-SCMB01 System Cabinet Mounting Base and any associated CC-CBLT05 I/O Link Cables that may have aged alongside the original module. Replacing these passive components during the same outage window prevents latent failures from undermining the reliability gains achieved by installing a new CC-PDOD51. Finally, sites planning a broader Experion PKS upgrade from R400 to R501 should confirm that the CC-PDOD51 firmware revision shipped is compatible with the target Experion release — TOPNLMS pre-verifies firmware alignment for all units prior to dispatch.

Retrofit Guidance FAQ

Q: Can I replace the CC-PDOD51 without re-terminating field wiring?
Yes. The module interfaces to the field through the CC-TBRC01 or CC-TBRC02 Remote Termination Panel. The termination panel remains in place; only the module card is extracted and replaced. All 16 DO channel assignments are preserved.

Q: Will the C300 controller recognize the replacement module automatically?
Yes. The Experion PKS C300 controller performs an I/O Link scan on power-up and auto-discovers the CC-PDOD51 by module type. No manual hardware configuration changes are required in Control Builder, provided the slot assignment and module type match the existing database entry.

Q: Is the communication protocol compatible with older Experion releases?
The CC-PDOD51 uses Honeywell’s proprietary I/O Link protocol, which is backward-compatible across Experion PKS R400 through R501. Sites running R310 or earlier should consult their Experion release notes for I/O Link module compatibility matrices before installation.

Q: What are the physical space requirements?
The CC-PDOD51 occupies one standard I/O Link slot in the CC-PCNT01 or CC-PCNT02 chassis. No additional cabinet space is required. The module dimensions and DIN-rail mounting profile are identical to all previous CC-PDOD51 revisions.

Q: Can this module replace earlier part number revisions (e.g., 51454408-150)?
Yes. The -175 revision is the current production revision and is a direct functional replacement for all earlier -125 and -150 suffix variants. Honeywell’s revision history for this part number reflects incremental hardware improvements with full backward compatibility.

Q: How long does commissioning take after module swap?
For a like-for-like replacement with no wiring or configuration changes, experienced DCS technicians typically complete the physical swap, I/O Link re-scan, and channel verification in under 30 minutes per module, minimizing process downtime.

Warranty Assurance

Every Honeywell CC-PDOD51 51454408-175 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination, connector integrity verification, and functional power-on testing where applicable. Units that do not meet our quality threshold are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. We maintain a dedicated inventory buffer of high-demand C300 platform modules specifically to support rapid warranty replacements without extended lead times.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. Export packaging is designed for international air freight and sea freight, with anti-static protection, foam cushioning, and moisture barrier bags as standard. Shipments from our Xiamen warehouse typically reach customers in Southeast Asia within 3–5 business days and Europe or the Americas within 5–10 business days via DHL, FedEx, or UPS.

TOPNLMS has supplied industrial automation spare parts to process plants, petrochemical facilities, power generation stations, and manufacturing operations across more than 30 countries. Our sourcing network and quality control processes are built around the needs of maintenance engineers who cannot afford uncertainty in a critical spare part purchase.
