Honeywell CC-PDOB01 51405043-176 Ruggedized Digital Output Module

Product Overview

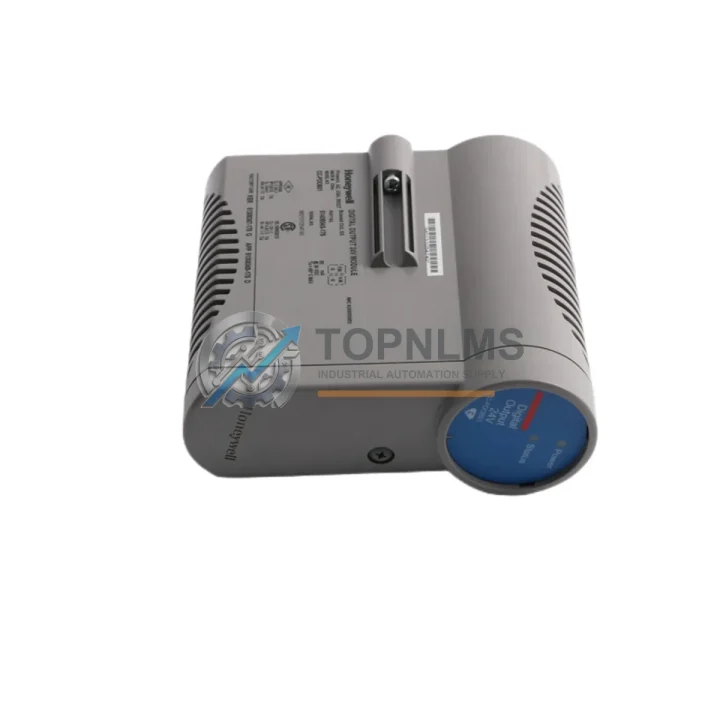

Honeywell CC-PDOB01 51405043-176 Ruggedized Digital Output Module for Harsh Industrial Environments

The Honeywell CC-PDOB01 (P/N 51405043-176) is a 16-channel, 24 VDC digital output module engineered for the Experion PKS (Process Knowledge System) distributed control architecture. Designed to operate continuously in demanding process environments — including high-temperature refineries, high-humidity water treatment plants, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this module delivers the deterministic switching performance and fault-tolerant reliability that safety-critical infrastructure demands.

Built to Honeywell’s rigorous industrial hardening standards, the CC-PDOB01 maintains stable output signaling even under sustained electromagnetic interference (EMI) from variable-frequency drives, large motor starters, and high-current bus systems operating in the same control cabinet. Its conformal-coated PCB and robust backplane connector resist corrosive atmospheres and condensation cycles common in coastal petrochemical facilities and offshore platforms.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated Experion PKS control system, the CC-PDOB01 digital output module works in close coordination with a suite of complementary Honeywell components to ensure end-to-end process safety and signal integrity. The Honeywell CC-PDIB01 51405042-175 digital input module pairs directly with the CC-PDOB01 on the same C300 chassis, enabling synchronized I/O scanning for interlock and permissive logic. Upstream process data is managed by the Honeywell C300 Process Controller (51309288-175), which executes the control strategy and drives output commands to the CC-PDOB01 with sub-millisecond determinism.

For analog process variables feeding into the same control loop, the Honeywell CC-PAIM01 51405038-175 analog input module provides 16-channel, HART-enabled signal acquisition, while the Honeywell CC-PAOX01 analog output module closes the loop on modulating control valves and positioners. Power integrity across the chassis is maintained by the Honeywell CC-PWR01 51405174-175 power supply module, which provides redundant 24 VDC rail conditioning and protects all I/O modules — including the CC-PDOB01 — from voltage transients and brownout conditions common in heavy industrial substations.

Communication redundancy is handled by the Honeywell FTE (Fault-Tolerant Ethernet) switch infrastructure, ensuring that the C300 controller and its associated I/O modules maintain uninterrupted data exchange even during single-link failures. For safety-instrumented system (SIS) integration, the Honeywell FSC (Fail-Safe Controller) safety module can be configured to monitor the digital output states of the CC-PDOB01 and trigger emergency shutdown sequences when predefined thresholds are breached. Terminal block assemblies such as the Honeywell CC-TCNT01 provide secure field-wiring termination, reducing installation errors and simplifying maintenance access during planned turnarounds. Together, these components form a cohesive, ruggedized control architecture capable of sustaining 24/7 continuous operation in the most demanding process environments.

Application in Critical Infrastructure

The CC-PDOB01 is a proven workhorse across the full spectrum of critical process industries. In oil and gas upstream and midstream operations, it drives solenoid valves, motor starters, and shutdown actuators on wellhead control panels and pipeline compressor stations, where ambient temperatures can swing from sub-zero arctic conditions to desert heat exceeding 50 °C. Its conformal coating and sealed backplane connector prevent sulfur-laden and saline atmospheres from degrading contact resistance over multi-year deployment cycles.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the module controls auxiliary systems such as cooling water pumps, lube oil heaters, and breaker trip circuits. The deterministic output response of the Experion PKS platform ensures that protective relay commands issued through the CC-PDOB01 reach field devices within the tight timing windows required by grid-code protection schemes.

Mining and mineral processing environments subject control hardware to extreme vibration from crushers, ball mills, and conveyor drives, as well as pervasive conductive dust that can compromise poorly sealed electronics. The CC-PDOB01’s robust mechanical design and IEC 60068-2-6 vibration compliance make it a reliable choice for controlling ore-handling equipment, flotation cell agitators, and tailings pump stations.

In water and wastewater treatment plants, the module manages pump start/stop sequences, valve actuators, and UV disinfection system enables across facilities that operate continuously with minimal on-site staffing. Its low-maintenance design and long mean time between failures (MTBF) reduce unplanned downtime in infrastructure where service interruptions carry regulatory and public-health consequences. Metallurgical and steel-making operations similarly rely on the CC-PDOB01 to control furnace burner management systems, ladle transfer equipment, and rolling mill auxiliary drives in environments characterized by intense radiant heat, electromagnetic noise from arc furnaces, and airborne metallic particulates.
