Honeywell CC-PDIL51 51454405-175 Upgrade for C300

Product Overview

Honeywell CC-PDIL51 51454405-175 Upgrade for C300: Seamless Transition to Modern DCS Architecture

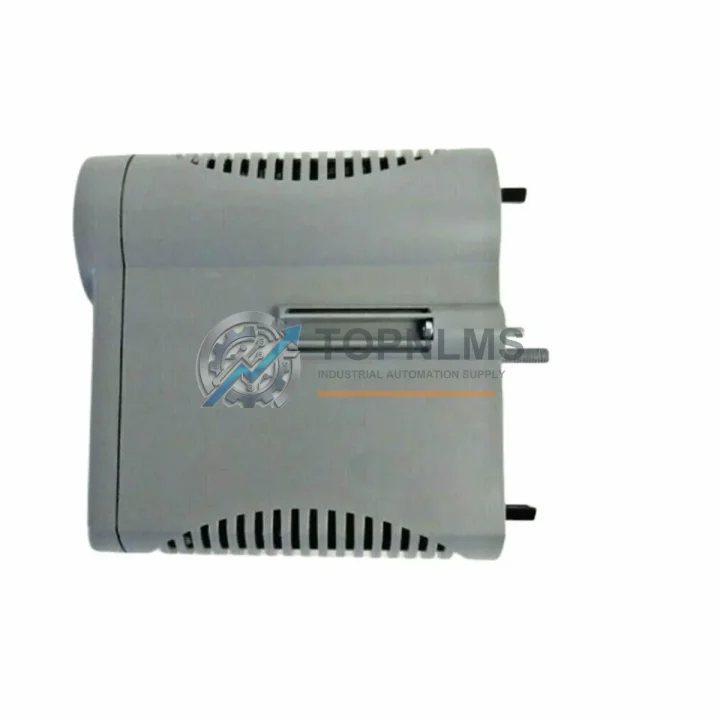

The Honeywell CC-PDIL51 (part number 51454405-175) is a 24 VDC Digital Input Module designed for the Experion PKS C300 Controller platform — one of the most widely deployed distributed control systems in refining, petrochemical, power generation, and continuous process industries. As aging Experion PKS installations approach end-of-support milestones, plant engineers and procurement teams are actively sourcing verified replacement modules to maintain system integrity without committing to a full DCS migration. TOPNLMS maintains ready stock of the CC-PDIL51 51454405-175 to support both emergency breakdown replacements and planned preventive maintenance programs.

The CC-PDIL51 is a Series C Process I/O module that slots directly into the C300 I/O Link chassis. It provides 32 channels of 24 VDC digital input, with each channel individually isolated and capable of detecting field-side signals from limit switches, proximity sensors, solenoid feedback contacts, and discrete process interlocks. The module communicates over the C300 I/O Link — a proprietary high-speed serial bus — and is fully managed through Honeywell’s Control Builder engineering environment. When replacing a failed or end-of-life CC-PDIL51, no re-engineering of the control strategy is required: the replacement module inherits the existing tag database, I/O assignments, and alarm configurations upon insertion and download.

For sites running mixed C300 and C200/C200E controller architectures, the CC-PDIL51 is interchangeable across compatible I/O Link chassis generations, provided the firmware revision of the replacement module is aligned with the site’s Experion PKS R-level software release. TOPNLMS verifies firmware compatibility prior to shipment on request. Engineers migrating from older TDC 3000 or PlantScape systems to Experion PKS will find that the CC-PDIL51 fits within the same cabinet footprint as legacy HPM I/O modules, significantly reducing panel re-wiring scope during brownfield upgrades.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CC-PDIL51 replacement or C300 system expansion typically involves coordinating several interdependent components. The CC-PDIL51 mounts into a C300 I/O Link chassis — either the CC-TCNT01 (standard 12-slot) or the CC-TCNT11 (extended chassis) — and connects to field wiring through a dedicated Field Termination Assembly. For 24 VDC digital input applications, the matching FTA is the CC-TDIL01 or CC-TDIL11, which provides the screw-terminal interface for up to 32 field cables. Ensuring the correct FTA variant is on hand before a planned shutdown is critical to avoiding extended downtime.

In multi-controller architectures, the C300 Controller module itself — typically the CC-PCF901 or CC-PCF902 — manages the I/O Link segment on which the CC-PDIL51 resides. Sites performing a controller firmware upgrade alongside an I/O module replacement should verify that the CC-PCF901 firmware revision is compatible with the CC-PDIL51 module revision to prevent I/O Link initialization faults. Similarly, the C300 I/O Link Terminator (CC-TLRX01) must be correctly installed at the end of each I/O Link segment to prevent communication errors after module insertion.

For plants integrating the Experion PKS system with third-party SCADA or safety systems, the Honeywell CC-PAIH01 Analog Input Module and CC-PDOB01 Digital Output Module are frequently ordered alongside digital input modules to complete a full I/O complement for a new control loop or interlock group. Where cabinet space is constrained during a brownfield retrofit, the compact form factor of the CC-PDIL51 allows engineers to maximize channel density without expanding the panel footprint. Power distribution within the C300 cabinet is typically handled by a dedicated 24 VDC DIN-rail power supply feeding the chassis backplane, and TOPNLMS recommends verifying the existing power supply capacity before adding additional I/O modules to an existing chassis.

For sites requiring serial or Modbus connectivity to legacy field devices during a phased migration, the Honeywell CC-SCMB01 Serial Communications Module can be installed in the same C300 chassis alongside the CC-PDIL51, enabling parallel operation of new digital I/O and legacy serial device integration without requiring a separate gateway panel. Programming and configuration changes are managed through the Honeywell Control Builder engineering workstation, and TOPNLMS can supply the CC-PDIL51 pre-configured to a customer-supplied tag list on request to further reduce commissioning time on site.

Retrofit Guidance FAQ

Q: Can I replace a failed CC-PDIL51 without shutting down the C300 controller?
A: Yes. The CC-PDIL51 supports online hot-swap replacement within a powered C300 I/O Link chassis. The controller will detect the new module automatically and re-download the I/O configuration. Field wiring on the FTA side remains undisturbed during the swap.

Q: Does the replacement module need to match the exact firmware revision of the failed unit?
A: The module firmware must be compatible with the site’s Experion PKS R-level software. In most cases, a newer firmware revision is backward compatible. TOPNLMS can verify the firmware revision of the supplied unit against your Experion PKS release level before shipment.

Q: We are migrating from a TDC 3000 HPM system. Can the CC-PDIL51 reuse existing field wiring?
A: Field wiring can often be reused if the cable specifications (wire gauge, shielding) meet C300 FTA requirements. However, the FTA terminal layout differs from HPM FTA blocks, so a wiring schedule review and re-termination at the FTA is required. The control cabinet space footprint is comparable, minimizing structural modifications.

Q: What communications protocol does the CC-PDIL51 use?
A: The CC-PDIL51 communicates exclusively over the Honeywell C300 I/O Link — a proprietary high-speed serial bus managed by the C300 Controller. It does not support PROFIBUS, FOUNDATION Fieldbus, or Modbus directly. For legacy protocol integration, a separate communications module such as the CC-SCMB01 is required.

Q: How much physical space does the CC-PDIL51 require in the cabinet?
A: The CC-PDIL51 occupies one slot in a standard C300 I/O Link chassis. The chassis itself is DIN-rail or panel-mount compatible. The associated FTA mounts on a separate FTA rail within the same cabinet section. Total additional space requirement for a single module addition is minimal — typically one chassis slot plus one FTA rail position.

Warranty Assurance

Every CC-PDIL51 51454405-175 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional verification check including power-on self-test, I/O Link communication initialization, and channel continuity verification. Units that do not pass pre-shipment testing are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our standard response time for warranty cases is 1–2 business days from claim submission. Replacement units are dispatched from our Xiamen warehouse with expedited freight to minimize plant downtime. We maintain a dedicated after-sales support channel at [email protected] and by phone at +86 18359293191 for urgent breakdown situations.

All units are shipped with anti-static packaging, individual serial number documentation, and a TOPNLMS inspection certificate. For customers requiring third-party inspection or FAT (Factory Acceptance Test) documentation, this can be arranged prior to shipment on request. Bulk procurement customers and MRO (Maintenance, Repair & Operations) accounts are eligible for priority stock reservation and extended payment terms — please contact our sales team to discuss your site’s requirements.
