Honeywell CC-PDIH01 51405041-176 Replacement Experion PKS: Seamless Migration & Legacy System Upgrade

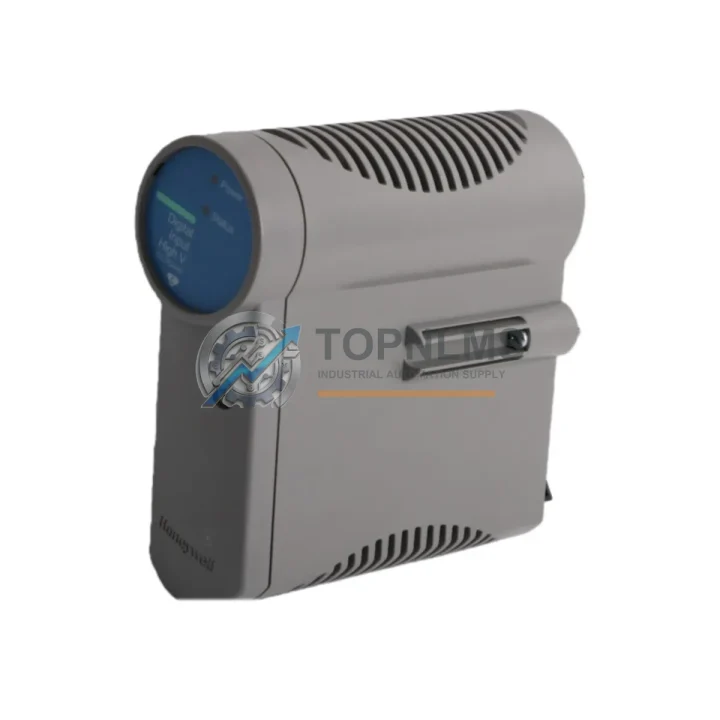

The Honeywell CC-PDIH01 (Part No. 51405041-176) is a 32-channel digital input module designed for the Experion PKS Series C distributed control system platform. As Honeywell progressively phases out legacy C300 I/O hardware, many process plants, refineries, and manufacturing facilities are facing urgent replacement decisions. This module serves as a direct drop-in replacement or a validated upgrade path for sites currently running the CC-PDIH01 or its predecessor variants within the Experion PKS architecture.

At TOPNLMS, we maintain ready stock of the CC-PDIH01 (51405041-176) sourced from authorized channels and verified through functional testing prior to dispatch. Whether your facility is executing a planned turnaround, responding to an unplanned failure, or building a strategic spare-parts inventory, our team can support fast fulfillment from our Xiamen warehouse with international logistics to minimize control system downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating from a legacy Honeywell TDC 3000 or PlantScape system to the Experion PKS C300 platform involves more than swapping a single I/O card. A complete and reliable migration typically requires coordinating several interdependent components across the control cabinet and field wiring infrastructure.

The CC-PDIH01 digital input module connects to the C300 controller via the standard I/O chassis backplane. In most retrofit projects, engineers pair this module with the CC-TAIX32 Field Termination Assembly, which provides the screw-terminal interface for field wiring — preserving existing cable runs and eliminating the need for complete rewiring of the marshalling cabinet. This is one of the most significant cost and time savings in a C300 migration.

For sites upgrading from HPM (High-Performance Process Manager) or PM I/O cards, the transition to C300 architecture also involves replacing the controller backbone. The CC-PCF901 C300 Controller serves as the primary processing unit in the new architecture, and its associated CC-PWR001 Power Supply Module must be correctly sized for the I/O chassis load — particularly when populating a full chassis with mixed digital and analog modules such as the CC-PAIH01 Analog Input Module and CC-PAOH01 Analog Output Module.

Communication continuity is another critical factor. Many legacy Honeywell systems relied on the Universal Control Network (UCN) or Local Control Network (LCN) for controller-to-controller and controller-to-HMI communication. In the Experion PKS environment, this is replaced by the FTE (Fault Tolerant Ethernet) network, which requires compatible network switches and, in some cases, the CC-SCMB01 Server Communication Module to bridge legacy data highways during phased migration. Ensuring that the Experion Station HMI is updated to a compatible software revision is equally important before commissioning the new I/O modules.

For digital output control loops, the CC-PDOB01 Digital Output Module is the natural companion to the CC-PDIH01 in the same I/O chassis, enabling coordinated DI/DO channel management within a single C300 node. In applications where signal isolation is required between field devices and the control system — common in high-voltage or noisy industrial environments — inline signal isolators or intrinsic safety barriers mounted on DIN rail within the control cabinet remain compatible with the FTA wiring approach.

For facilities managing a phased migration where some legacy HPM or ACE nodes remain operational alongside new C300 nodes, the CC-LINK01 ControlNet Link Module or equivalent gateway modules can maintain data exchange between old and new system segments, reducing the risk of a full cutover and allowing production to continue during the transition period.

Retrofit Guidance FAQ

Q: Can the CC-PDIH01 (51405041-176) be installed directly into an existing C300 I/O chassis without any hardware modification?
A: Yes. The CC-PDIH01 is designed for direct slot insertion into any standard Experion PKS C-series I/O chassis. No hardware modification is required. The module is hot-swappable in systems configured for redundant I/O, allowing replacement without shutting down the controller node.

Q: Is the field wiring compatible when replacing an older CC-PDIH01 with a new unit?
A: Yes, provided the existing Field Termination Assembly (FTA) — typically the CC-TAIX32 — is retained. The FTA carries all field wiring connections and remains in place during module swap. Only the I/O module itself is removed and replaced, making the wiring fully compatible.

Q: What programming changes are required after replacing the CC-PDIH01?
A: For a like-for-like replacement (same part number, same slot), no programming changes are required. The Experion PKS Control Builder configuration is stored on the C300 controller, not on the I/O module itself. The replacement module will be automatically recognized and loaded upon insertion.

Q: Is the CC-PDIH01 compatible with both 24 VDC and 120 VAC field signals?
A: The CC-PDIH01 (51405041-176) is rated for 24 VDC digital input signals. For 120 VAC field signals, a different FTA variant or signal conditioning relay is required. Confirm your field voltage specification before ordering.

Q: How does the CC-PDIH01 communicate with the C300 controller?
A: Communication is via the C300 I/O chassis backplane bus — no separate communication cable is required. The C300 controller scans all I/O modules in the chassis at the configured scan rate defined in Control Builder. This is fundamentally different from legacy UCN or LCN-based I/O, which required dedicated coaxial or fiber network cabling.

Q: What is the physical space requirement for installation?
A: The CC-PDIH01 occupies one standard I/O slot in the Experion PKS C-series chassis. The chassis itself is typically mounted in a 19-inch rack or dedicated Honeywell control cabinet. Compared to legacy TDC 3000 card files, the C300 chassis offers significantly higher I/O density per rack unit, which is a key advantage in cabinet space-constrained retrofit projects.

Q: Can I use this module as a spare for a system that is still running legacy HPM I/O?
A: No. The CC-PDIH01 is exclusively compatible with the Experion PKS C300 platform. It is not interchangeable with HPM, PM, or ACE I/O cards. If your system is still running on HPM hardware, you will need HPM-specific spare parts until a full migration to C300 is completed.

Warranty Assurance

Every Honeywell CC-PDIH01 (51405041-176) unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment testing protocol includes power-on functional verification, backplane communication check, and channel integrity testing to ensure the module performs to Honeywell’s published specifications upon arrival at your facility.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection. Our after-sales response team is reachable via email and phone, with typical response times within one business day. For urgent plant situations, we offer expedited shipping options from our Xiamen warehouse to major industrial hubs across Asia, the Middle East, and Europe.

We understand that unplanned control system failures carry significant production risk. Our inventory management approach ensures that high-demand Experion PKS modules — including the CC-PDIH01 and its companion I/O and controller components — are maintained in ready stock to support same-week dispatch for qualified orders.

All units are shipped with appropriate ESD-protective packaging, and documentation including test records and certificate of conformance is available upon request for quality-controlled procurement processes.
