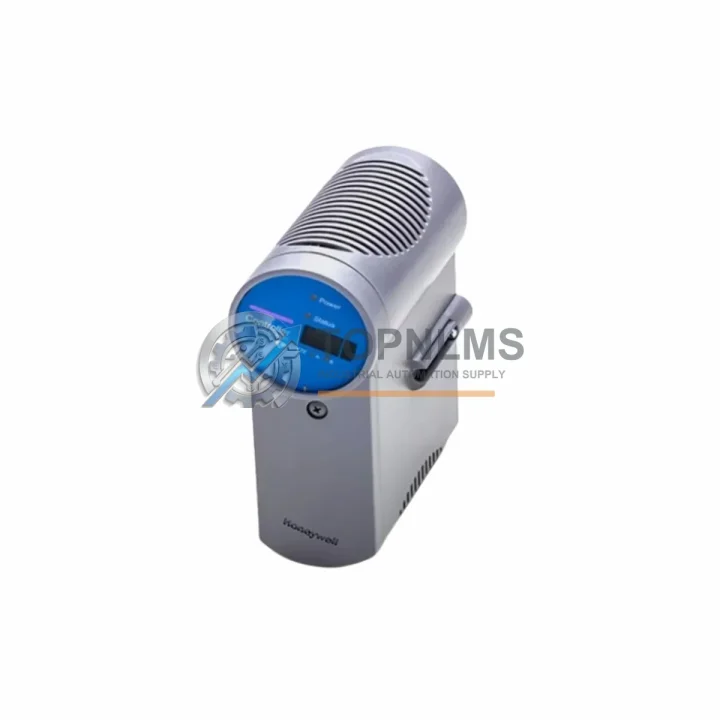

Honeywell CC-PCNT01 Replacement for Experion PKS C300

Product Overview

Honeywell CC-PCNT01 / CC-PDIL01 / CC-PAON01 — Seamless Replacement & Upgrade Solution for Experion PKS C300

When your Honeywell Experion PKS C300 distributed control system requires a critical module replacement or a planned migration away from aging hardware, the CC-PCNT01 (Pulse Counter Input Module), CC-PDIL01 (Digital Input Module, Low-Side), and CC-PAON01 (Analog Output Module) represent the most direct, lowest-risk path to restoring full system integrity. These modules are engineered for drop-in compatibility within the C300 controller architecture, preserving your existing wiring infrastructure, I/O termination assemblies, and Experion PKS configuration databases without requiring a full system redesign.

Industrial facilities operating legacy Honeywell TDC 3000, PlantScape, or early-generation Experion R100–R310 platforms frequently encounter end-of-life module failures that demand immediate action. The CC-PCNT01, CC-PDIL01, and CC-PAON01 are fully compatible with the C300 controller chassis and the IOTA (I/O Termination Assembly) wiring base, meaning field wiring remains undisturbed during the swap. Engineers can complete the physical replacement during a planned maintenance window without re-terminating a single wire — a critical advantage in continuous-process environments such as refining, petrochemical, power generation, and pharmaceutical manufacturing.

For sites migrating from the older Honeywell PM I/O or HPM (High-Performance Process Manager) subsystems, these C300-compatible modules serve as the bridge hardware that allows phased migration. Rather than a costly forklift upgrade, your team can migrate one I/O subsystem at a time, keeping the C300 Controller (CC-PCNT01 host) and the Experion PKS server online while individual field I/O loops are transitioned. The CC-PDIL01 handles 24 VDC digital input signals from field devices such as limit switches, proximity sensors, and valve position feedback — all of which retain their existing wiring to the IOTA base. The CC-PAON01 provides 4–20 mA analog output signals to control valves, variable-speed drives, and positioners, maintaining full loop integrity with your existing FTA (Field Termination Assembly) wiring.

Communication within the C300 architecture relies on the FTE (Fault Tolerant Ethernet) protocol, and all three modules communicate natively over this redundant network backbone. No protocol converters, gateways, or additional communication modules are required. If your site also operates PROFIBUS DP or FOUNDATION Fieldbus H1 segments, the CC-PCNT01 and its companion modules integrate seamlessly alongside Honeywell CC-PBSM01 (PROFIBUS Slave Module) and CC-FFBM01 (Foundation Fieldbus Module) within the same C300 chassis, preserving your multi-protocol field architecture.

Power supply compatibility is another key consideration during module replacement. The C300 chassis is powered by the Honeywell CC-PWR01 (Power Supply Module), which supports both redundant and non-redundant configurations. The CC-PCNT01, CC-PDIL01, and CC-PAON01 draw power directly from the chassis backplane — no separate field power wiring to the module is required. This simplifies the replacement procedure and eliminates the risk of incorrect power connections during a live-system swap.

From a programming and configuration standpoint, replacement of these modules within an existing Experion PKS project requires only a hardware re-assignment in Experion Control Builder. The existing Control Module (CM) logic, parameter blocks, and historian tags remain intact. Engineers familiar with the Honeywell Series C I/O architecture will find the re-commissioning process straightforward: download the updated hardware configuration, perform a module self-test, and verify loop integrity through the Experion Station operator interface. No PLC ladder logic rewrite or DCS function block redesign is necessary.

Physical installation space is a common concern when retrofitting aging control cabinets. The CC-PCNT01, CC-PDIL01, and CC-PAON01 all conform to the standard C300 I/O module form factor, occupying a single slot in the CC-CIMS01 (C300 I/O Module Slot) chassis. If your cabinet houses a mix of C300 and legacy Honeywell RM (Remote Multiplexer) or PLC Gateway hardware, the C300 chassis dimensions remain unchanged, and no panel modifications are required for a like-for-like module swap.

For sites that have already standardized on the Honeywell Safety Manager or are integrating safety instrumented functions alongside the C300 process control layer, these I/O modules operate independently of the safety layer, ensuring that SIL-rated loops are not affected by the replacement activity. The CC-PAON01 analog output can be configured for HART pass-through, enabling continued communication with HART-capable field instruments such as smart positioners and transmitters without additional hardware.

TOPNLMS maintains verified stock of the CC-PCNT01, CC-PDIL01, and CC-PAON01 at our Xiamen warehouse. Each unit undergoes pre-shipment functional verification, including power-on self-test and communication handshake confirmation. Units are shipped in original or equivalent ESD-protective packaging with full documentation. Expedited air freight is available for emergency breakdown situations, with typical lead times of 3–7 business days to most global destinations. A 12-month replacement warranty is provided on all modules, covering manufacturing defects and functional failures under normal operating conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete C300 migration or module replacement project rarely involves a single component. In practice, engineers sourcing the CC-PCNT01, CC-PDIL01, or CC-PAON01 are simultaneously evaluating a broader set of system components to ensure the upgraded subsystem operates reliably from day one.

The CC-PWR01 Power Supply Module is the first component to verify during any C300 chassis expansion or module replacement. If the existing power supply is operating near its rated load, adding replacement I/O modules may require a second CC-PWR01 in a redundant configuration. Similarly, the CC-CIMS01 C300 I/O Chassis must have available slots; if the existing chassis is fully populated, a chassis expansion using an additional C300 I/O chassis connected via the CC-LINK01 I/O Link Module may be required.

For sites migrating PROFIBUS DP field devices alongside the I/O module replacement, the CC-PBSM01 PROFIBUS Slave Module provides native PROFIBUS DP integration within the C300 chassis, eliminating the need for external gateways. FOUNDATION Fieldbus H1 segments are handled by the CC-FFBM01 FF Linking Device, which connects H1 field devices directly to the Experion PKS network without additional infrastructure.

When the migration scope includes operator interface upgrades, the Honeywell Experion Station HMI running on Windows Server with Experion PKS R500 or later provides the supervisory layer for the C300 system. For field-level operator interaction, Honeywell Uniformance PHD historian integration ensures that all process data from the replaced I/O modules is captured without gaps in the historical record.

Finally, for sites that require signal isolation between legacy field wiring and the new C300 I/O modules — particularly when migrating from older 4-wire transmitter loops to 2-wire HART configurations — signal isolators and loop-powered barriers compatible with the CC-TAON01 and CC-TPCT01 IOTA bases are recommended as part of the migration bill of materials. These components, combined with the CC-PCNT01, CC-PDIL01, and CC-PAON01, form a complete, validated replacement solution for your Experion PKS C300 system.

Retrofit Guidance FAQ

Q: Can I replace the CC-PDIL01 without rewiring the field terminals?
A: Yes. The CC-PDIL01 mounts directly onto the CC-TDIL01 or CC-TDIL11 IOTA wiring base. All field wiring remains connected to the IOTA; only the module itself is swapped. No field wiring changes are required.

Q: Do I need to modify my Experion PKS Control Builder project after replacing the CC-PCNT01?
A: Only a hardware re-assignment is required in Control Builder. Existing Control Module logic, parameter configurations, and historian tags are preserved. After downloading the updated hardware configuration, perform a module self-test and verify loop operation through the Experion Station.

Q: Is the CC-PAON01 compatible with HART field instruments?
A: Yes. The CC-PAON01 supports HART pass-through communication, allowing continued communication with HART-capable positioners, transmitters, and actuators without additional hardware or wiring changes.

Q: What communication protocol do these modules use, and is it compatible with my existing FTE network?
A: All three modules communicate natively over Honeywell FTE (Fault Tolerant Ethernet). No protocol converters or additional network hardware are required. The modules integrate directly into your existing FTE switch infrastructure.

Q: Can these modules be installed in a live C300 system without a full shutdown?
A: In redundant I/O configurations with redundant IOTA assemblies, hot-swap replacement is supported. For non-redundant configurations, a controlled loop hold or process shutdown is recommended before module replacement to avoid process upsets.

Q: What is the physical space requirement for these modules in the control cabinet?
A: Each module occupies one standard C300 I/O chassis slot. No additional panel space or DIN rail mounting is required beyond the existing chassis footprint.

Q: Are these modules suitable for migration from a Honeywell HPM or TDC 3000 system?
A: Yes. These modules are the standard migration target for HPM and TDC 3000 I/O subsystems being upgraded to the Experion PKS C300 platform. The migration preserves field wiring and allows phased I/O subsystem migration without a full system cutover.

Warranty Assurance

Every CC-PCNT01, CC-PDIL01, and CC-PAON01 unit shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Our pre-shipment inspection process includes power-on self-test, communication handshake verification, and visual inspection for physical damage or ESD exposure. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of claim confirmation. Our after-sales response team is reachable via email at [email protected] or by phone at +86 18359293191 for urgent breakdown situations. We maintain buffer stock of high-demand C300 modules specifically to support emergency replacement requests.

All units are shipped in ESD-protective packaging with original or equivalent documentation. Export documentation, including commercial invoices, packing lists, and certificates of origin, is provided for all international shipments. Customs HS code classification support is available upon request.

TOPNLMS is committed to supporting industrial facilities through planned maintenance cycles and unplanned breakdown events with equal urgency. Our procurement team can provide formal quotations, lead time confirmations, and technical datasheets within one business day of inquiry.
