Honeywell CC-PAIX02 Replacement for Experion PKS C300

Product Overview

Honeywell CC-PAIX02 Replacement for Experion PKS C300: Seamless DCS Analog Input Upgrade

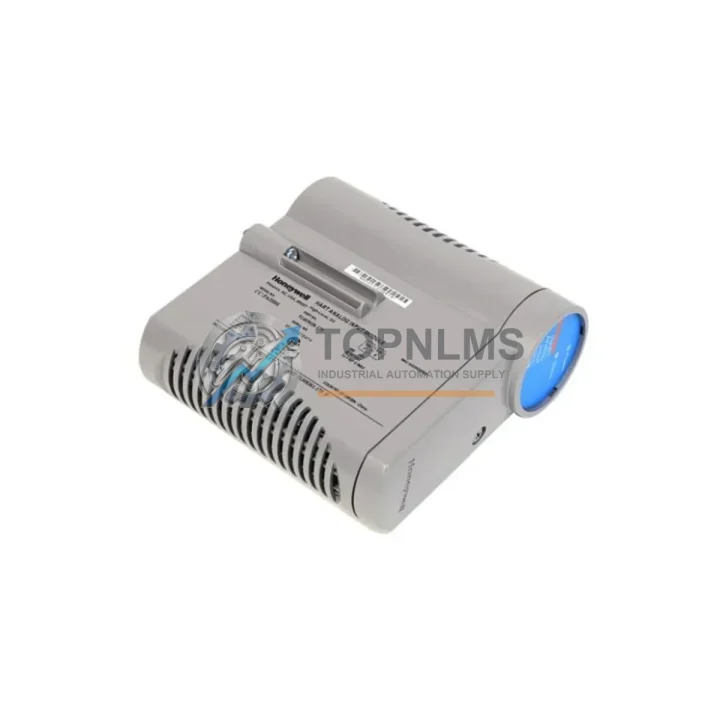

The Honeywell CC-PAIX02 (part number 51405038-475) is a high-density analog input module designed for the Experion PKS C300 DCS platform. As legacy Honeywell TDC 3000, TPS, and early Experion R100/R200 systems approach end-of-life, plant engineers and procurement teams are actively seeking verified replacement and upgrade paths that minimize engineering rework, preserve existing field wiring, and reduce unplanned downtime. The CC-PAIX02 serves as a direct functional replacement within the C300 controller architecture, supporting 4–20 mA HART-enabled field instruments across a wide range of process industries including refining, petrochemical, power generation, and pharmaceutical manufacturing.

This module slots into the standard C300 I/O Link chassis alongside other C300-series I/O modules, maintaining full compatibility with the existing Experion PKS server infrastructure, FTE (Fault Tolerant Ethernet) network backbone, and Control Builder engineering environment. No changes to the FTE switch configuration or server licensing are required when performing a like-for-like swap of a failed or obsolete analog input module.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy Honeywell DCS to the Experion PKS C300 platform rarely involves a single module swap. In practice, the CC-PAIX02 analog input module is deployed alongside a broader set of C300-series components that together form a complete, validated I/O subsystem.

The CC-TAIX02 termination assembly is the recommended field-side companion to the CC-PAIX02, providing screw-terminal access for up to 8 analog input channels and eliminating the need to re-terminate existing 2-wire or 4-wire field cables. Where analog output capability is required in the same control loop — for example, driving a control valve positioner — the CC-PAOX01 analog output module integrates directly into the same C300 I/O chassis without additional bus configuration.

For digital field devices, the CC-PDIL01 digital input module and CC-PDOB01 digital output module share the same chassis backplane and I/O Link bus, allowing mixed analog and discrete I/O within a single compact enclosure. This is particularly valuable in retrofit projects where control cabinet space is constrained and the existing panel layout must be preserved.

Communication between the C300 controller and the Experion PKS server relies on the FTE (Fault Tolerant Ethernet) network, typically implemented with managed industrial Ethernet switches. During migration, the C300 controller module itself — the CC-PCF901 or its successor — acts as the central processing unit coordinating all attached I/O modules, and its firmware version must be verified for compatibility with the installed Experion PKS server release before commissioning.

In plants where legacy HART field instruments are being retained during the migration, a HART multiplexer or HART-over-PROFIBUS gateway may be required to bridge asset management data from the field to the Experion Asset Manager. For sites integrating third-party PLCs or safety systems via serial communication, the CC-SCMB01 serial communication module provides Modbus RTU and RS-485 connectivity within the C300 architecture.

Power distribution within the C300 I/O chassis is handled by the CC-PWR001 power supply module, which accepts 24 VDC input and distributes regulated power to all installed I/O modules. Redundant power configurations are supported by installing a second CC-PWR001 in the chassis, a common requirement in SIL-rated or high-availability process applications. Finally, for sites requiring physical signal isolation between field devices and the DCS — particularly in high-voltage or electrically noisy environments — signal isolators and barriers (such as Pepperl+Fuchs or MTL series Zener barriers) are typically installed at the marshalling cabinet level and remain fully compatible with the CC-PAIX02 input signal range.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing a legacy Honeywell AI module with the CC-PAIX02?
A: In most cases, yes. The CC-PAIX02 accepts standard 4–20 mA two-wire and four-wire field instrument connections via the CC-TAIX02 termination assembly. If your legacy system used a different termination form factor, a wiring adapter or re-termination at the marshalling cabinet may be required, but the field cable runs themselves do not need to be replaced.

Q: Do I need to modify my Experion PKS Control Builder configuration when swapping a failed CC-PAIX02?
A: For a like-for-like hardware replacement (same part number, same slot position), no Control Builder changes are required. The C300 controller will automatically recognize the replacement module upon power-up. If you are migrating from a different module type or changing the slot assignment, a Control Builder download to the C300 controller will be necessary.

Q: Is the CC-PAIX02 compatible with HART field instruments?
A: Yes. The CC-PAIX02 supports HART Revision 5, 6, and 7 communication, enabling digital HART variable pass-through to the Experion PKS server for use with Experion Asset Manager or third-party asset management tools.

Q: What communication protocol does the CC-PAIX02 use to connect to the C300 controller?
A: The CC-PAIX02 communicates with the C300 controller via the proprietary C300 I/O Link bus, which is a high-speed serial backplane connection. This is not an open protocol (not Modbus, PROFIBUS, or EtherNet/IP) — the module must be installed in a C300-compatible I/O chassis.

Q: Can the CC-PAIX02 be installed in a redundant I/O Link configuration?
A: Yes. The C300 I/O architecture supports redundant I/O Link connections, providing continued process data acquisition even in the event of a single I/O Link cable or interface failure. Redundancy configuration is performed in Control Builder and requires no additional hardware beyond the standard C300 chassis and cabling.

Q: How much panel space does the CC-PAIX02 require compared to legacy HPM I/O cards?
A: The C300 I/O chassis has a significantly smaller footprint than legacy HPM or APM card cages. A single 12-slot C300 chassis can replace multiple legacy card cages, freeing panel space for additional equipment or simplifying cabinet layout during a brownfield retrofit.

Q: What is the lead time and shipping arrangement for the CC-PAIX02?
A: TOPNLMS maintains ready stock of the CC-PAIX02 at our Xiamen warehouse. Standard orders are processed and shipped within 1–3 business days. International express delivery (DHL, FedEx, UPS) is available to most destinations. Contact us at [email protected] or +86 18359293191 for urgent requirements.

Warranty Assurance

Every CC-PAIX02 (51405038-475) supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional test to verify power-up behavior, channel integrity, and communication bus response. This test is documented and the test record is available upon request.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, subject to inspection of the returned module. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units for warranty claims are prioritized from in-stock inventory to minimize your plant downtime.

For procurement teams requiring documentation, we can provide a commercial invoice, packing list, certificate of conformity, and — where applicable — a test report. All units are shipped in anti-static packaging with appropriate export markings for customs clearance.

TOPNLMS is an independent supplier of industrial automation components. We are not an authorized Honeywell distributor. All brand names, part numbers, and trademarks referenced are the property of their respective owners and are used solely for identification and compatibility reference purposes.
