Honeywell CC-PAIX01 51405038-275 Replacement for Experion PKS

Product Overview

Honeywell CC-PAIX01 51405038-275 Replacement for Experion PKS: Seamless Migration & Upgrade Solution

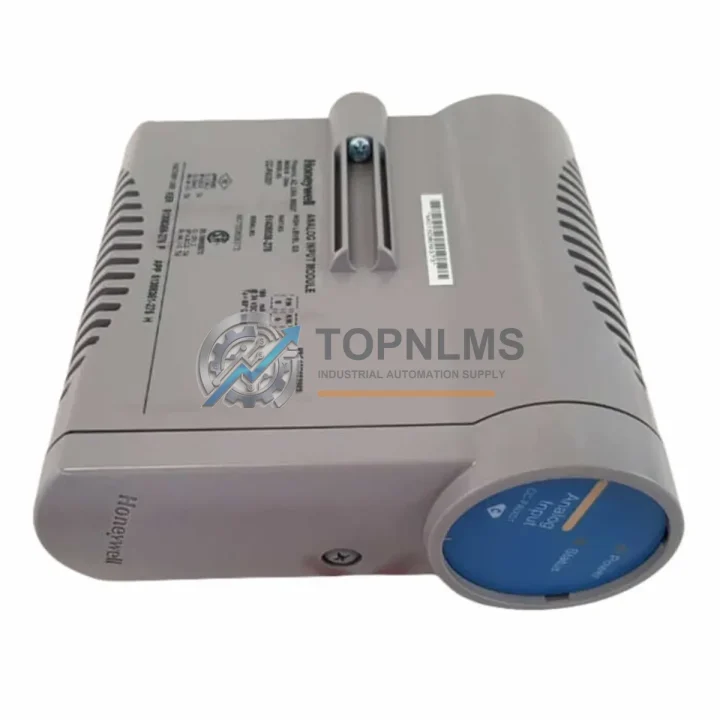

The Honeywell CC-PAIX01 (Part No. 51405038-275) is a Process Automation I/O module designed for the Experion PKS (Process Knowledge System) distributed control architecture. As aging Experion PKS installations approach end-of-support milestones, facilities running legacy TDC 3000, PlantScape, or early-generation Experion R100–R300 systems increasingly require a reliable, drop-in replacement or upgrade path that preserves existing wiring infrastructure, control logic, and cabinet footprint.

This listing provides a tested, in-stock CC-PAIX01 / 51405038-275 module ready for immediate dispatch. Whether you are executing a planned turnaround, responding to an unplanned failure, or building a critical-spare inventory buffer, TOPNLMS maintains stock to support your timeline with a 12-month warranty on every unit shipped.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy DCS to a modern Experion PKS architecture rarely involves a single module swap. In practice, the CC-PAIX01 / 51405038-275 is deployed alongside a coordinated set of components that together ensure wiring continuity, communication integrity, and cabinet-level compatibility.

On the termination side, the CC-SCMX01 Smart Junction Box and CC-TCNT01 termination assembly allow existing field cables to connect directly to the new PAIX module without re-pulling wires — a critical advantage when minimizing shutdown windows. For HART-enabled field instruments, the CC-PAIX01 passes HART signals transparently, enabling asset management through Experion’s integrated Field Device Manager (FDM) without additional multiplexers.

Power distribution within the upgraded cabinet is typically handled by the CC-PWR001 or CC-PWR002 24 VDC power modules, which slot directly into the Experion PKS chassis and provide redundant power paths. Where the legacy system used a standalone 24 VDC rail, these modules consolidate power management and add diagnostic visibility at the controller level.

The C300 Process Controller serves as the host for the CC-PAIX01 in most Experion PKS architectures. During migration, the existing control strategy — originally written for a PM or APM controller — is re-engineered in Experion Control Builder and downloaded to the C300 over FTE. This process preserves loop logic, alarm setpoints, and historian tags while eliminating the UCN/LCN bus dependency.

For facilities that also need to upgrade discrete I/O alongside analog channels, the CC-PDIX01 Digital Input module and CC-PDOX01 Digital Output module share the same chassis and IOTA architecture as the CC-PAIX01, simplifying spare-parts management and technician training. Where signal isolation is required between field instruments and the DCS backplane — particularly in hazardous-area installations — inline Zener barrier or galvanic isolator assemblies are recommended and can be retained from the legacy marshalling panel.

For sites that require operator interface upgrades in parallel, Honeywell’s Experion Station (ES) or Flex Station HMI platforms integrate natively with the C300 / CC-PAIX01 architecture over FTE, providing a consistent upgrade path from legacy GUS or Universal Station consoles without rewriting display graphics from scratch.

Finally, commissioning and firmware management require a Honeywell-compatible programming cable and Experion Builder software license. TOPNLMS can advise on compatible cable assemblies and software revision requirements based on your specific Experion PKS release level.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing a legacy HLAI module with the CC-PAIX01?
A: Yes. Using the CC-SCMX01 or CC-TCNT01 termination assemblies, existing 4–20 mA field wiring connects directly to the new IOTA without modification. Verify loop power sourcing (active vs. passive) matches the new module’s input configuration.

Q: What communication protocol changes are required during migration?
A: The CC-PAIX01 communicates over FTE (Fault Tolerant Ethernet) rather than the legacy UCN/LCN bus. The C300 controller manages FTE communication; no additional protocol converters are required within the Experion PKS cabinet.

Q: Does the CC-PAIX01 support HART communication?
A: Yes. HART pass-through is supported, enabling digital communication with HART-enabled field transmitters through the Experion Field Device Manager without additional hardware.

Q: How much physical space does the CC-PAIX01 require compared to legacy modules?
A: The CC-PAIX01 mounts on a standard Experion PKS IOTA in the C300 chassis. Legacy TDC 3000 card cages are typically larger; the Experion PKS chassis is more compact, often allowing consolidation of multiple legacy racks into a single cabinet.

Q: What is the recommended procedure for replacing a failed module with minimal downtime?
A: Power down the affected I/O channel group, swap the CC-PAIX01 module, reconnect the IOTA, and restore power. The C300 controller will automatically re-establish communication and resume scanning. No re-download of the control strategy is required for a like-for-like module replacement.

Q: Can the CC-PAIX01 be used in a redundant I/O configuration?
A: Redundant I/O configurations in Experion PKS require paired modules and a redundancy-capable IOTA. Confirm your system’s redundancy architecture with your Experion PKS revision documentation before ordering.

Warranty Assurance

Every CC-PAIX01 / 51405038-275 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a functional verification check including power-on self-test, communication interface inspection, and visual examination for physical damage or component degradation.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed fault. Our after-sales response target is within 24 hours of a warranty claim submission. Replacement units are dispatched with priority shipping to minimize your operational impact.

For time-critical procurement — including emergency breakdown orders — TOPNLMS maintains ready stock and can confirm availability, issue a proforma invoice, and arrange same-day or next-day dispatch upon payment confirmation. We ship globally from Xiamen, China, with DHL Express, FedEx, and UPS options available.

For volume orders, critical-spare agreements, or consignment stock arrangements, contact our team directly to discuss lead times, pricing, and logistics coordination.
