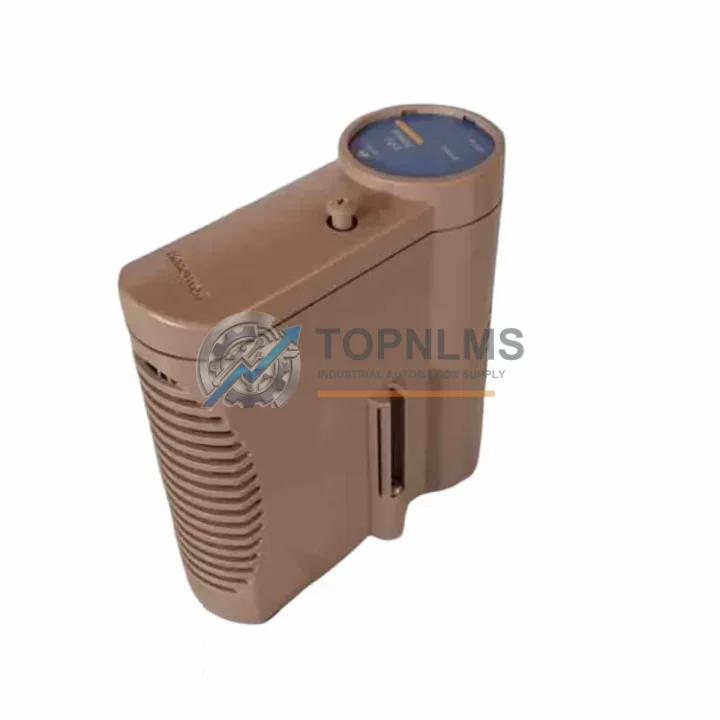

Honeywell CC-PAIN01 51410069-175 Original Spare Experion PKS Compatible: Ensuring System Stability in Critical Industrial Environments

The Honeywell CC-PAIN01 (Part No. 51410069-175) is an original analog input module engineered for the Experion PKS (Process Knowledge System) distributed control system platform. Designed to meet the demanding requirements of continuous process industries — including oil & gas, petrochemical, power generation, pulp & paper, and pharmaceutical manufacturing — this module delivers reliable, high-accuracy analog signal acquisition that forms the backbone of stable process control loops.

In industrial facilities where unplanned downtime translates directly into production loss and safety risk, maintaining a verified spare of the CC-PAIN01 is not optional — it is a fundamental element of any responsible maintenance strategy. Whether you are managing a scheduled turnaround, responding to an unexpected module fault, or building out a preventive maintenance inventory, the CC-PAIN01 51410069-175 provides the exact form, fit, and function required to restore your Experion PKS system to full operational status with minimal intervention time.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your Experion PKS Investment

A single analog input module failure in a live DCS environment can cascade into process upsets, safety system activations, and costly emergency shutdowns. Experienced maintenance engineers understand that the CC-PAIN01 does not operate in isolation — it is one node in a tightly integrated control architecture. A comprehensive preventive maintenance program must account for the full signal chain and control cabinet ecosystem surrounding this module.

When scheduling inspection or replacement of the CC-PAIN01, it is best practice to simultaneously audit the CC-TAIX01 IOTA carrier board, which provides the physical termination and backplane interface for the module. Worn or corroded IOTA connectors are a common root cause of intermittent analog signal faults that are frequently misdiagnosed as module failures. Alongside the IOTA, inspect the field termination assembly (FTA) wiring and terminal blocks for oxidation, loose connections, or insulation degradation — particularly in high-humidity or chemically aggressive environments.

The C300 Process Controller paired with the CC-PAIN01 should be included in any scheduled maintenance window. Firmware version alignment between the C300 and its associated I/O modules is critical for maintaining communication integrity and avoiding nuisance alarms. If your facility is running legacy firmware, this is an opportune moment to evaluate a controlled upgrade path.

Power quality is another frequently overlooked factor. The Experion PKS power supply modules (such as the CC-PWR001 or equivalent) feeding the control cabinet should be load-tested and inspected for capacitor aging, especially in systems that have been in continuous service for more than five years. A degraded power supply can introduce voltage ripple that manifests as analog signal noise — symptoms that are often chased at the I/O module level when the root cause lies upstream.

For facilities using HART-enabled field instruments, verify that the HART multiplexer or HART pass-through configuration is functioning correctly. HART communication failures can prevent asset management software from reading device diagnostics, masking developing faults in transmitters, control valves, and other field devices connected to the CC-PAIN01 channels.

During cabinet inspections, also evaluate the condition of signal isolators and surge protection modules on analog input loops running from field instruments located in hazardous areas or across long cable runs. These passive and active components absorb electrical transients that would otherwise damage I/O module input circuits. Replacing aging surge protectors proactively is far less costly than an unplanned CC-PAIN01 replacement during a production run.

Finally, consider the status of your Experion PKS communication modules and FTE network switches. The redundancy architecture of the Experion PKS platform depends on healthy FTE (Fault Tolerant Ethernet) infrastructure. A degraded network switch port or a failing communication module can cause the system to lose redundancy without triggering an immediate process alarm — a silent risk that only becomes apparent during an actual primary path failure.

Maintaining a structured spare parts inventory that includes the CC-PAIN01, its IOTA carrier, associated power modules, and key communication components is the most cost-effective insurance policy against extended downtime in any Experion PKS-based facility.

Strategic Replacement Solutions: Minimizing Downtime, Preserving System Compatibility

The CC-PAIN01 51410069-175 is a direct original replacement for aging or failed analog input modules within the Experion PKS I/O subsystem. Unlike third-party alternatives that may require configuration changes, driver updates, or system re-qualification, an original Honeywell CC-PAIN01 installs into the existing IOTA carrier and is recognized by the Experion PKS system without modification to the control database or hardware configuration files.

For facilities managing end-of-life Experion PKS systems where new production modules are no longer available through standard distribution channels, sourcing verified original surplus or refurbished CC-PAIN01 units is the most reliable path to extending system life without the capital expenditure of a full DCS migration. This approach preserves existing engineering documentation, operator training, and process tuning — all of which represent significant embedded value that would be lost in a platform replacement.

Each CC-PAIN01 unit shipped from TOPNLMS undergoes functional verification testing prior to dispatch. Units are inspected for physical integrity, connector condition, and where applicable, powered-up functional testing against known-good reference systems. This pre-shipment process significantly reduces the risk of receiving a non-functional spare during a critical maintenance window.

Lead time is a critical factor in spare parts strategy. Maintaining at least one on-shelf CC-PAIN01 spare per control cabinet — or per process unit in high-criticality applications — eliminates the procurement lead time variable from your emergency response plan. For multi-train or multi-unit facilities, a centralized spare pool with documented check-out procedures provides both cost efficiency and availability assurance.
