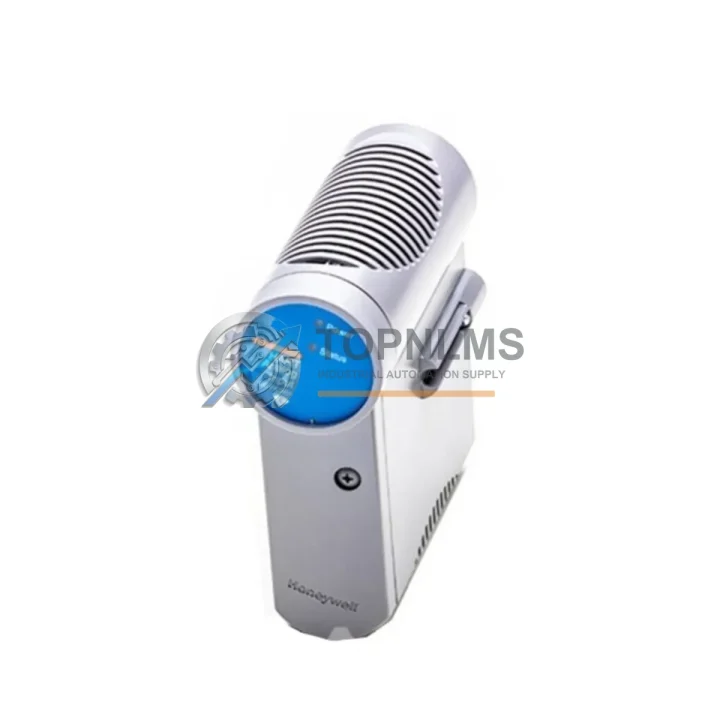

Honeywell CC-PAIH02 51405038-376 Original Industrial Spare C300 Compatible: System Stability and Industrial Spare Maintenance Value

The Honeywell CC-PAIH02 (P/N 51405038-376) is an original HART-enabled analog input module designed for the Experion PKS C300 Controller platform — one of Honeywell’s most widely deployed Distributed Control Systems in refining, petrochemical, power generation, and continuous process industries. Maintaining an available stock of this module is a cornerstone of any serious preventive maintenance and spare parts strategy for facilities running Experion PKS-based control architectures.

In high-availability production environments, an unplanned failure of a HART analog input module can cascade into process shutdowns, loss of field device diagnostics, and extended downtime. The CC-PAIH02 provides 8-channel HART analog input capability, enabling simultaneous process variable acquisition and HART communication for connected field instruments such as pressure transmitters, flow meters, and temperature sensors. Keeping a verified original spare on the shelf — tested, serialized, and ready for hot-swap — is the most cost-effective insurance against unplanned outages.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for Experion PKS C300 systems goes well beyond replacing a single I/O module. During scheduled shutdowns or annual turnarounds, maintenance teams should treat the CC-PAIH02 replacement as part of a broader cabinet-level inspection. When pulling and testing the CC-PAIH02, it is best practice to simultaneously inspect the CC-TAIX11 or CC-TAIX51 Field Termination Assembly (FTA) for terminal corrosion, loose wiring, and relay contact wear — these FTAs are the physical interface between the module and field wiring, and degraded terminals are a leading cause of intermittent HART communication faults.

The C300 Controller module (CC-PCF901) itself should be checked for firmware currency and memory health during the same maintenance window. If the C300 controller is approaching end-of-support lifecycle, proactive stocking of a spare controller alongside the CC-PAIH02 significantly reduces mean time to repair (MTTR) in the event of a dual failure. Similarly, the CC-PWR001 or CC-PWR002 power supply modules that feed the C300 chassis should be load-tested and inspected for capacitor aging — power supply degradation is a silent contributor to I/O module instability and spurious HART read errors.

For facilities with dense HART field device populations, the CC-PAOH01 analog output module and CC-PDIL01 digital input module are frequently co-located in the same I/O cabinet as the CC-PAIH02. Stocking these alongside the analog input module ensures that a single cabinet failure event does not require multiple procurement cycles. Maintenance planners should also review the CC-SCMB01 system cabinet module bus and backplane connectors for oxidation, particularly in humid or coastal environments.

HART signal integrity is also dependent on loop wiring quality. During inspection, verify that field cable shielding is intact and that HART signal isolators or repeaters (such as those used in intrinsically safe zones) are within their rated service life. Faulty signal isolators are frequently misdiagnosed as module failures, leading to unnecessary CC-PAIH02 replacements. Including a HART communicator or handheld device in the maintenance toolkit allows technicians to verify HART device health independently of the DCS before condemning the module.

For sites running hybrid architectures, the CC-TCNT01 communication module and CC-LINK01 I/O Link extender should be inspected for connector integrity and firmware alignment. These components govern the data path between the C300 controller and its distributed I/O nodes — a degraded link module can produce symptoms that mimic I/O module failure. Rounding out the cabinet inspection with a review of terminal block assemblies, fuse modules, and surge protection devices on the field wiring side ensures that a newly installed CC-PAIH02 is not immediately exposed to damaging transients from the field.

Strategic Replacement Solutions

The CC-PAIH02 (51405038-376) is a direct original replacement for aging or failed HART analog input modules within the Experion PKS C300 I/O subsystem. Unlike third-party alternatives, the original Honeywell module maintains full compatibility with Experion PKS configuration tools, including Control Builder and Experion Station, without requiring re-parameterization or firmware patching. This plug-and-play compatibility is critical in time-sensitive maintenance scenarios where production restart timelines are measured in hours, not days.

For facilities managing legacy Experion PKS R400 or R500 installations, the CC-PAIH02 remains backward-compatible with earlier C300 firmware revisions, making it a viable long-term spare for systems that are not scheduled for platform migration. This extended compatibility window allows maintenance managers to consolidate spare parts inventory — a single CC-PAIH02 can serve multiple cabinet locations across the plant, reducing total spare parts carrying cost.

When replacing a failed module in a live system, the C300’s hot-swap capability allows the CC-PAIH02 to be replaced without a full controller restart, provided the replacement is performed according to Honeywell’s documented I/O replacement procedure. This minimizes process disruption and allows the replacement to be completed during a brief operational window rather than requiring a full planned shutdown. All units shipped from TOPNLMS are pre-tested against Honeywell factory acceptance criteria and serialized for traceability.

Support FAQ

Q1: Is the CC-PAIH02 51405038-376 compatible with all Experion PKS C300 revisions?
A: Yes. The CC-PAIH02 with P/N 51405038-376 is compatible with Experion PKS C300 controller revisions from R400 onward. It supports both HART 5 and HART 6 field devices. For R300 or earlier systems, please contact us to confirm firmware compatibility before ordering.

Q2: What testing is performed before shipment?
A: Each CC-PAIH02 unit undergoes functional verification including power-on self-test (POST) confirmation, channel continuity check, and HART communication loop test. Units are serialized and shipped with a test report. All units are covered by a 12-month warranty from the date of shipment.

Q3: How should I manage CC-PAIH02 inventory for a multi-unit plant?
A: Industry best practice for critical DCS I/O modules is to maintain a minimum of one spare per 10 installed units, with a floor of two spares per plant site. For Experion PKS installations with more than 50 CC-PAIH02 modules deployed, a dedicated spare pool of 5–8 units is recommended to cover both corrective and preventive replacement cycles across annual turnarounds.

Q4: Can the CC-PAIH02 be replaced in a live system without shutting down the C300 controller?
A: Yes, the C300 I/O architecture supports hot-swap replacement of I/O modules including the CC-PAIH02, provided the replacement is executed per Honeywell’s documented procedure. The controller will automatically re-download the module configuration upon insertion. It is recommended to verify HART device communication on all 8 channels after replacement before returning the loop to automatic control.
