Honeywell CC-MCAR01 Replacement for Experion PKS C300

Product Overview

Honeywell CC-MCAR01 Replacement for Experion PKS C300: Smooth Migration & Legacy System Upgrade

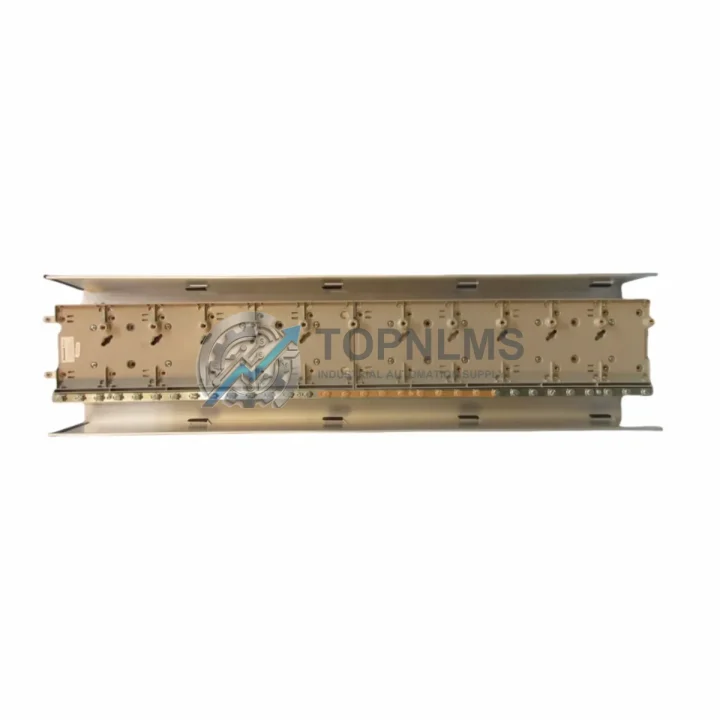

The Honeywell CC-MCAR01 is a carrier channel assembly module designed for the Experion PKS C300 Series distributed control system. As aging DCS infrastructure reaches end-of-life or spare parts become increasingly scarce, facilities running legacy Honeywell TDC 3000, PlantScape, or early-generation Experion PKS platforms face mounting pressure to migrate to supported, maintainable hardware. The CC-MCAR01 serves as a critical bridge component in this transition — enabling engineers to retrofit existing control cabinets, preserve wiring infrastructure, and maintain communication continuity without a full system overhaul.

TOPNLMS maintains verified stock of the CC-MCAR01 carrier channel assembly, sourced and tested to meet original Honeywell specifications. Each unit undergoes pre-shipment functional inspection and ships with a 12-month replacement warranty, giving procurement teams and plant engineers the confidence to plan scheduled maintenance windows or respond to unplanned failures with minimal downtime exposure.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy Honeywell DCS to the Experion PKS C300 architecture involves more than swapping a single carrier module. The CC-MCAR01 is typically deployed alongside a coordinated set of components that together ensure wiring continuity, communication integrity, and cabinet space efficiency.

In most retrofit projects, the CC-MCAR01 carrier channel assembly is installed in conjunction with the C300 Controller (CC-PCF901), which serves as the primary process controller managing I/O scanning and control execution. Field I/O signals are terminated through analog input modules such as the CC-PAIX01 and digital output modules such as the CC-PDOB01, both of which mount directly onto the CC-MCAR01 carrier. For applications requiring redundant I/O or high-density signal termination, engineers frequently pair the carrier assembly with CC-TAIX11 and CC-TDOB11 termination assemblies, which preserve existing field wiring without re-termination.

Communication between the C300 controller and the Experion PKS server is maintained over Fault Tolerant Ethernet (FTE), typically using a dedicated FTE switch or ESVT network infrastructure. During migration, the Experion PKS Engineering Station running Control Builder software is used to download updated control strategies and verify I/O channel assignments — a process that is significantly simplified when the carrier assembly is wiring-compatible with the existing field termination layout.

For facilities upgrading from TDC 3000 or PlantScape environments, the Series C to C300 I/O Link (SCIO) gateway module is often used in parallel to maintain communication with legacy Series C I/O during phased migration. Power distribution within the control cabinet is managed through Honeywell 24 VDC power supply modules, which must be verified for adequate current capacity when adding new C300 carrier assemblies. In applications where signal isolation is required between field devices and the DCS, signal isolators or safety barriers are installed at the terminal strip level, upstream of the CC-MCAR01 carrier.

This coordinated approach — combining the CC-MCAR01 with compatible controllers, I/O modules, termination assemblies, communication infrastructure, and power distribution hardware — allows plant engineers to execute a phased, low-risk migration that minimizes production interruption and preserves the investment in existing field wiring.

Retrofit Guidance FAQ

Q: Can the CC-MCAR01 be installed in an existing TDC 3000 cabinet without rewiring field devices?
A: In most cases, yes — provided the cabinet has been adapted to accept C300 carrier rails and the field wiring termination points are compatible with C300 termination assemblies (e.g., CC-TAIX11). A wiring audit is recommended before installation to confirm terminal block compatibility and cable routing clearance.

Q: What communication protocols does the CC-MCAR01 support?
A: The CC-MCAR01 operates within the Experion PKS C300 architecture, which uses Fault Tolerant Ethernet (FTE) for controller-to-server communication and the C300 I/O bus for module-to-controller communication. It does not natively support PROFIBUS, HART, or Modbus without additional gateway modules.

Q: How much physical space does the CC-MCAR01 require in the control cabinet?
A: The CC-MCAR01 follows the standard C300 carrier form factor. Cabinet space requirements depend on the number of I/O modules mounted on the carrier. Consult the Honeywell Experion PKS C300 Hardware Planning Guide for exact dimensional specifications and minimum clearance requirements.

Q: Is reprogramming required when replacing a failed carrier assembly?
A: No. The CC-MCAR01 is a passive carrier — control logic resides in the C300 controller module (CC-PCF901), not the carrier itself. Replacing the carrier assembly does not require downloading new control strategies, provided the controller and I/O modules are reseated correctly and the FTE network connection is restored.

Q: Can the CC-MCAR01 be used in a redundant I/O configuration?
A: Yes. The C300 architecture supports redundant I/O through paired carrier assemblies and redundant I/O modules. Consult the Experion PKS I/O Redundancy documentation for configuration requirements specific to your process application.

Q: What is the lead time for the CC-MCAR01?
A: TOPNLMS maintains in-stock inventory of the CC-MCAR01. Standard orders ship within 1–3 business days from our Xiamen warehouse. Expedited shipping options are available for urgent plant maintenance requirements.

Warranty Assurance

Every Honeywell CC-MCAR01 shipped by TOPNLMS is backed by a 12-month replacement warranty from the date of delivery. Our pre-shipment inspection process includes visual examination, connector integrity verification, and functional testing against C300 carrier specifications to ensure each unit meets operational standards before dispatch.

In the event of a warranty claim, TOPNLMS provides a direct replacement unit — no lengthy RMA queues or repair cycles. Our after-sales response team is reachable via email and phone to support fault diagnosis, installation guidance, and replacement coordination. For plant engineers managing unplanned outages, we offer priority processing for warranty replacements to minimize production downtime.

Procurement teams can purchase with confidence: each order includes a packing list, inspection record, and warranty certificate. We support purchase orders, wire transfer, and standard B2B payment terms for qualified industrial buyers.

For volume orders, long-term supply agreements, or technical pre-sales consultation, contact our industrial automation team directly.
