Honeywell CC-GDIL01 51306317-175 Ruggedized Digital Input Module

Product Overview

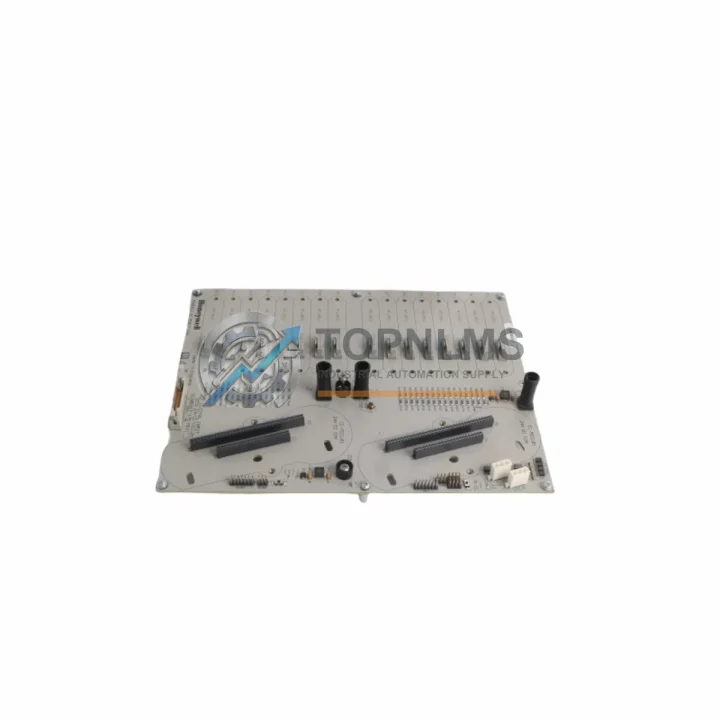

Honeywell CC-GDIL01 51306317-175 Ruggedized Digital Input Module for Harsh Environments

The Honeywell CC-GDIL01 (part number 51306317-175) is a 24VDC digital input module engineered for the Experion PKS C300 Distributed Control System platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and electrically noisy heavy manufacturing floors — this module delivers the signal integrity and uptime that critical infrastructure demands. Whether deployed in a continuous production line, a hazardous-area control cabinet, or a remote field junction box, the CC-GDIL01 maintains stable digital input acquisition without compromise.

At TOPNLMS, every CC-GDIL01 51306317-175 unit is sourced from verified supply channels, individually inspected, and function-tested prior to dispatch. We maintain ready stock to support urgent spare-parts requirements, planned maintenance windows, and long-term procurement contracts for plant operators worldwide.

Rugged Specifications Table

Comprehensive Protection Solutions

The CC-GDIL01 51306317-175 is rarely deployed in isolation. In a fully engineered Honeywell Experion PKS C300 architecture, it works in concert with a suite of complementary modules and components to deliver end-to-end process control reliability. The CC-GDOL01 digital output module pairs directly with the CC-GDIL01 on the same CIOM-A I/O carrier, enabling coordinated discrete control loops for motor starters, solenoid valves, and safety interlocks. For analog process variables such as pressure, temperature, and flow, the CC-MAIL01 analog input module and CC-MAOL01 analog output module extend the C300 I/O subsystem to cover the full signal spectrum of a modern process plant.

System redundancy — a non-negotiable requirement in continuous production environments — is achieved through the C300 Controller module itself, which supports redundant controller pairs communicating over the Fault-Tolerant Ethernet (FTE) network. The CC-PCF901 FTE interface card and associated FTE switches maintain deterministic, high-availability communication between the C300 controller and the supervisory Experion PKS server, ensuring that a single network fault never interrupts process visibility or control. For power distribution within the control cabinet, Honeywell-compatible 24VDC DIN-rail power supplies and the CC-PWR001 power conditioner module provide clean, regulated power to the I/O subsystem, protecting the CC-GDIL01 from voltage transients and brownouts common in heavy industrial environments.

Where functional safety is mandated — such as in SIL 2 or SIL 3 rated safety instrumented systems — the CC-GDIL01 is often installed alongside Honeywell Safety Manager SM modules, including the SM-DI digital input safety module, which handles emergency shutdown (ESD) and fire-and-gas (F&G) logic independently of the basic process control system. Communication gateways such as the Honeywell ControlEdge HC900 or third-party Modbus/PROFIBUS interface modules bridge the C300 DCS to field devices, variable frequency drives (VFDs), and intelligent motor control centers (MCCs) that do not natively support the Honeywell I/O Link protocol. Terminal modules and marshalling panels — including WAGO 750-series or Phoenix Contact FLKM terminal blocks — are commonly used in the field junction boxes that aggregate wiring before it reaches the CC-GDIL01 input channels, providing an additional layer of surge and short-circuit protection.

Application in Critical Infrastructure

In upstream oil and gas facilities — wellhead platforms, FPSO vessels, and onshore gathering stations — the CC-GDIL01 51306317-175 monitors discrete field signals from pressure switches, level switches, valve position feedback, and motor run/fault contacts. Its high noise immunity and field-side isolation prevent ground loops and EMI-induced false trips that could trigger unplanned shutdowns in a continuous production environment. On offshore platforms where ambient salt spray and humidity are constant threats, the module’s conformal-coated PCB construction and sealed housing provide the corrosion resistance necessary for multi-year service intervals between planned maintenance cycles.

In coal-fired and combined-cycle power generation plants, the CC-GDIL01 integrates with turbine control systems and boiler management systems, capturing digital status signals from breakers, damper actuators, and flame scanners. Its deterministic scan cycle ensures that safety-critical state changes — such as a turbine trip or a boiler high-pressure alarm — are captured and transmitted to the C300 controller within the required response time. In water and wastewater treatment facilities, where the module may be installed in remote pump stations subject to wide temperature swings and power quality issues, its robust design ensures continuous monitoring of pump run/stop status, valve open/close feedback, and flow switch signals without requiring frequent field service visits.

Mining and mineral processing operations present some of the harshest conditions for any electronic control component: heavy vibration from crushers and conveyors, airborne conductive dust, and frequent voltage sags from large motor starts. The CC-GDIL01’s vibration-rated design and high common-mode rejection ratio make it a proven choice for conveyor belt monitoring, crusher interlock systems, and hopper level detection in these environments. In metallurgical plants and steel mills, where electromagnetic interference from arc furnaces and induction heaters is extreme, the module’s EMC-compliant design maintains signal integrity across all 32 input channels simultaneously, supporting the high-density I/O requirements of rolling mill automation and ladle tracking systems.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
Every CC-GDIL01 51306317-175 sold by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. If a unit fails within the warranty period, contact us at [email protected] with your order reference and a description of the fault. We will arrange a replacement or repair at no additional cost, including return shipping coordination for international customers.

Q2: How is each unit tested before shipment?
All CC-GDIL01 modules undergo a pre-shipment functional inspection that includes visual examination for physical damage, power-on verification, and channel-level continuity checks. Units that do not pass inspection are quarantined and not dispatched. Test records are retained and can be provided upon request for customers with quality management system (QMS) documentation requirements.

Q3: Is this module compatible with my existing Honeywell Experion PKS C300 system?
Yes. The CC-GDIL01 51306317-175 is a standard Honeywell C300 I/O module designed for use with the CIOM-A I/O carrier and the C300 Controller. It is backward-compatible with existing C300 and C200 controller revisions running current Experion PKS software releases. If you are unsure about compatibility with a specific firmware version or carrier configuration, contact our technical team with your system details and we will confirm before you order.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. We specialize in long-term spare-parts supply for industrial automation systems, including Honeywell DCS components. We maintain buffer stock of high-demand modules such as the CC-GDIL01 and can establish blanket purchase orders or scheduled delivery agreements for plant operators who require guaranteed availability over multi-year maintenance contracts. Contact us to discuss your procurement requirements.
