Honeywell BXA3K-1A BXM4N Original Industrial Spare BX Series Compatible: System Stability and Industrial Spare Parts Maintenance Value

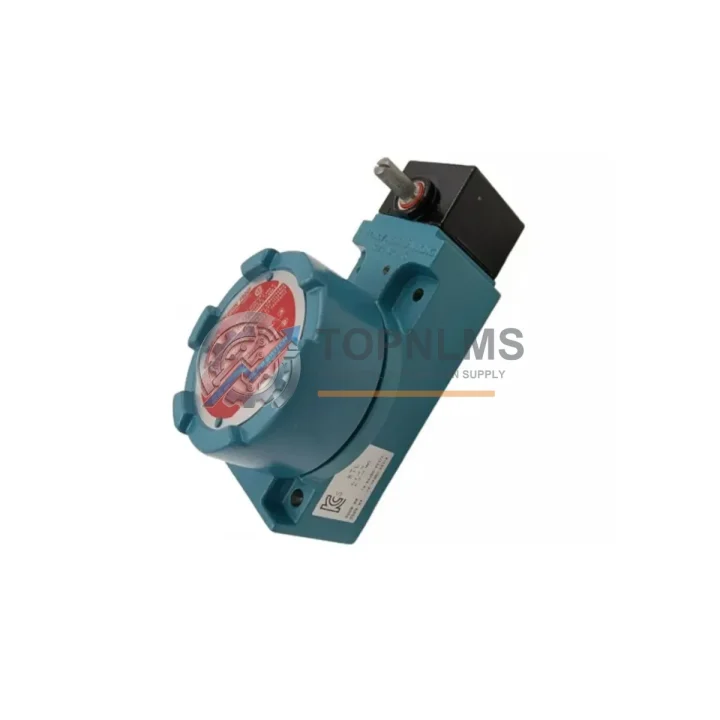

The Honeywell BXA3K-1A BXM4N is an original explosion-proof limit switch from the MICRO SWITCH BX Series, engineered for demanding industrial environments where system reliability and personnel safety are non-negotiable. Designed for use in hazardous locations classified under ATEX, IECEx, and NEC standards, this limit switch delivers precise, repeatable actuation in petrochemical plants, oil and gas facilities, mining operations, grain handling systems, and heavy manufacturing lines. When a control system depends on accurate position feedback from actuators, conveyors, valve stems, or rotating machinery, the BXA3K-1A BXM4N provides the dependable switching action that keeps production running and prevents unplanned shutdowns.

In industrial maintenance practice, the BX Series limit switch is a foundational component in safety interlock circuits, motor control centers, and automated conveyor systems. Its robust die-cast aluminum housing, sealed against dust and moisture ingress, ensures long service life even in corrosive or high-vibration environments. Maintenance engineers and procurement specialists who manage aging control systems recognize the BXA3K-1A BXM4N as a direct, drop-in replacement that preserves original wiring configurations and panel layouts, eliminating costly re-engineering during emergency shutdowns.

Critical Technical Specs Table

Preventive Maintenance Strategy

A proactive maintenance program for explosion-proof control systems goes well beyond replacing a single limit switch. When scheduling a planned shutdown or responding to a nuisance trip on a BXA3K-1A BXM4N, experienced maintenance teams use the opportunity to audit the entire electrical circuit and adjacent components in the same control cabinet or junction box.

Begin by inspecting the conduit sealing fittings and explosion-proof conduit bodies connected to the BXM4N actuator head — degraded seals are a common source of moisture ingress that accelerates contact wear. Next, verify the integrity of the Honeywell MICRO SWITCH BXM actuator head assembly itself; the roller lever arm on the BXM4N variant is subject to mechanical fatigue in high-cycle applications such as conveyor position sensing or valve travel indication, and stocking a spare BXM4N actuator head alongside the BXA3K-1A switch body is a recognized best practice in petrochemical PM programs.

Within the same motor control circuit, check the Honeywell MICRO SWITCH 11SM series snap-action micro switches used in auxiliary contact blocks, as well as any Honeywell SZL-WL series safety limit switches installed on adjacent guard doors or safety gates — these components share the same maintenance window and failure modes. If the BXA3K-1A BXM4N is wired into a PLC digital input module, this is also the right time to verify the 24VDC field power supply module output voltage and ripple, since under-voltage conditions cause intermittent switching faults that are frequently misdiagnosed as limit switch failures.

For systems using a Honeywell or third-party signal isolator or intrinsic safety barrier between the hazardous-area limit switch and the safe-area PLC input card, inspect the barrier for correct Zener diode function and terminal torque. Loose terminals on DIN-rail terminal blocks — particularly Phoenix Contact or Weidmüller types commonly used in the same marshalling cabinet — are a leading cause of intermittent open-circuit faults that mimic limit switch failures. Replace any discolored or heat-damaged terminals during the same maintenance event.

If the BXA3K-1A BXM4N is part of a valve position feedback loop, coordinate with the instrument team to simultaneously verify the solenoid valve coil resistance and pilot valve seat condition, and confirm that the valve positioner feedback potentiometer or LVDT is within calibration. Stocking a Honeywell BX Series replacement switch body (BXA3K-1A) together with a spare BXM4N roller lever actuator head, a set of explosion-proof conduit seals (EYS/EYD type), and a spare 10A fuse module for the field power circuit gives maintenance teams the complete kit needed to restore operation within a single shift — minimizing mean time to repair (MTTR) and protecting production throughput.

Strategic Replacement Solutions

The BXA3K-1A BXM4N addresses one of the most persistent challenges in industrial maintenance: sourcing a certified, drop-in replacement for an explosion-proof limit switch in an aging control system without triggering a full panel re-design or re-certification process. Many facilities operating equipment installed in the 1990s and 2000s rely on BX Series switches that are no longer stocked by regional distributors, creating critical single-point-of-failure risks in their spare parts inventory.

By sourcing original Honeywell BXA3K-1A BXM4N units, maintenance managers can replace failed or end-of-life switches using the original conduit entry size (1/2-14 NPT), the original mounting hole pattern, and the original wiring configuration — preserving the existing hazardous-area installation certification and avoiding the cost and delay of a Management of Change (MOC) process. This is particularly valuable in facilities operating under ISA-84 / IEC 61511 functional safety requirements, where any modification to a safety instrumented function (SIF) triggers a formal re-validation cycle.

For facilities managing large installed bases of BX Series switches across multiple production units, establishing a consignment stock arrangement or a minimum reorder point (typically 2–4 units per critical circuit) is strongly recommended. The 12-month warranty on each unit shipped from TOPNLMS provides a defined quality assurance baseline, and each switch is tested prior to dispatch to confirm correct actuation force, contact resistance, and insulation resistance — reducing the risk of infant mortality failures during commissioning after a planned shutdown.

Support FAQ

Q1: Is the BXA3K-1A BXM4N a direct replacement for older Honeywell BX Series limit switches in my existing hazardous-area installation?
Yes. The BXA3K-1A BXM4N maintains the same conduit entry (1/2-14 NPT), mounting pattern, and contact configuration (SPDT, 1NO+1NC) as the standard BX Series platform. In most installations, replacement requires only disconnecting the existing conduit, unbolting the old switch body, and installing the new unit — no wiring changes or re-certification are required, provided the replacement is like-for-like. Always verify with your site’s electrical safety authority before proceeding in classified locations.

Q2: What pre-shipment testing is performed on each BXA3K-1A BXM4N unit?
Each unit shipped by TOPNLMS is inspected and tested for correct mechanical actuation, contact continuity, contact resistance (typically <50mΩ), and insulation resistance (>100MΩ at 500VDC) before dispatch. Units are shipped in original or equivalent protective packaging to prevent transit damage. A 12-month warranty from the date of shipment covers manufacturing defects and premature failure under normal operating conditions.

Q3: How should I manage BXA3K-1A BXM4N inventory for a facility with multiple hazardous-area limit switch installations?
Best practice is to maintain a minimum stock of 2–4 units per critical circuit, with a reorder trigger set at 1 unit remaining. For facilities with 10 or more BX Series switches installed, a consignment or blanket purchase order arrangement reduces lead time risk. Given the 12-month warranty period, rotating stock on a first-in-first-out (FIFO) basis ensures warranty coverage is maximized at the point of installation.

Q4: Can the BXA3K-1A BXM4N be used in both Class I (gas/vapor) and Class II (dust) hazardous locations?
Yes. The BX Series enclosure is rated NEMA 7 for Class I, Division 1 and 2 (Groups C and D) and NEMA 9 for Class II, Division 1 and 2 (Groups E, F, and G), making it suitable for a wide range of hazardous-area applications including petrochemical, grain handling, pharmaceutical, and mining environments. Always confirm the specific group and division classification of your installation against the switch’s nameplate rating before installation.
