Honeywell ACX633 51196655-100 Replacement for Experion PKS

Product Overview

Honeywell ACX633 51196655-100 Replacement for Experion PKS — Smooth System Transition

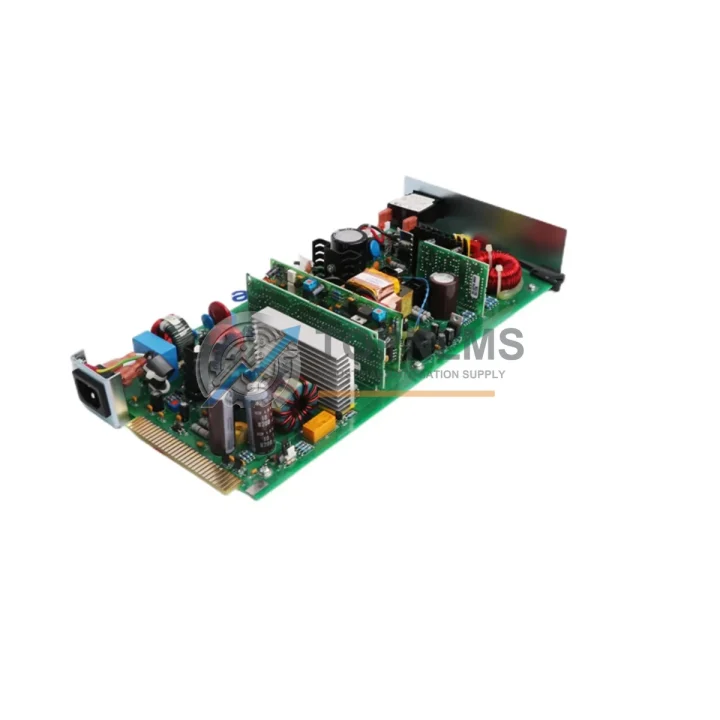

The Honeywell ACX633 (part number 51196655-100) is a critical DCS power supply module designed for the Experion PKS platform, specifically supporting C300 controller-based architectures. As aging TPS (TotalPlant Solution) and legacy Experion R100–R400 systems approach end-of-life, plant engineers and procurement teams are actively sourcing verified replacement units to maintain uptime and defer costly full-system overhauls. TOPNLMS maintains ready inventory of the ACX633 51196655-100, fully tested and backed by a 12-month warranty, enabling rapid like-for-like swap with zero programming changes required.

The ACX633 functions as the primary power conditioning and distribution module within the Experion PKS C300 controller chassis. It accepts standard 24 VDC input from the cabinet power rail and delivers regulated, isolated DC outputs to the C300 controller card, associated I/O link modules, and downstream Series C I/O modules mounted in the same or adjacent chassis. When replacing a failed or degraded ACX633, the physical form factor, DIN-rail or chassis mounting footprint, and connector pinout are identical to the original — no cabinet re-wiring or backplane modification is needed.

In a typical Experion PKS migration scenario, the ACX633 works in close coordination with the C300 Process Controller (51309288-175 or equivalent), the IOTA (I/O Termination Assembly) backplane, and the FIM4 or FIM8 Fault-Isolation Modules that protect field wiring. Engineers migrating from older TDC 3000 or PlantScape systems will find that the ACX633 slots directly into the same cabinet space previously occupied by legacy HPM power modules, provided the 24 VDC supply rail is retained — a common condition in brownfield upgrades. The module communicates no protocol of its own; it is a passive power distribution component, so there are no Ethernet, ControlNet, or FTE (Fault-Tolerant Ethernet) configuration changes required upon replacement.

For sites running parallel redundancy, the ACX633 is typically deployed in pairs — one active, one standby — within the same C300 chassis. Replacing one unit while the redundant partner remains online allows a hot-swap procedure that eliminates process interruption entirely. This is a key advantage over older non-redundant HPM power architectures where any power module failure required a full controller shutdown. Commissioning after replacement involves only a visual LED status check and a brief controller health poll via Experion Station or the Engineering Console — no re-download of the C300 control strategy is necessary.

Sites that are simultaneously upgrading their I/O infrastructure will often pair the ACX633 replacement with new Series C I/O modules such as the HC900 analog input cards or digital output modules, as well as updated FTEB (Fault-Tolerant Ethernet Bridge) modules that extend the C300’s I/O link to remote cabinets. In larger DCS modernization projects, the ACX633 replacement is frequently bundled with C300 controller card refreshes, new FIM fault-isolation modules, and updated IOTA termination assemblies — all of which TOPNLMS can supply from the same order to reduce freight cycles and simplify incoming inspection.

For plants operating Honeywell Safety Manager or Safety Builder environments alongside the Experion PKS process controller, the ACX633 power module replacement does not affect the safety network topology or the FSC (Fail-Safe Controller) power domain, as these are electrically isolated systems. However, it is good practice to notify the safety system integrator before performing any cabinet-level power work, particularly in SIL 2 or SIL 3 classified loops.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Experion PKS power infrastructure refresh typically involves more than a single ACX633 module. In most brownfield projects, the C300 Process Controller card itself (51309288-175) is evaluated alongside the power module — if the controller firmware is below R410 or R500, a coordinated card and power module replacement ensures the entire chassis is brought to a consistent revision level. The IOTA backplane assembly, which provides the physical termination points for field wiring, is another common co-replacement item; worn or corroded IOTA connectors are a frequent root cause of intermittent I/O faults that are initially misdiagnosed as power supply issues.

On the I/O side, Series C analog input modules (such as the AI-HART 8-channel cards) and digital output modules mounted in the same chassis draw their operating power directly from the ACX633 rail — confirming the replacement module’s output voltage tolerance is therefore a prerequisite before re-energizing the chassis. For sites with remote I/O cabinets connected via the C300’s I/O Link, the FTEB Fault-Tolerant Ethernet Bridge module should also be inspected; a degraded power supply can cause intermittent FTEB link drops that are resolved once the ACX633 is replaced. Additionally, FIM4 and FIM8 Fault-Isolation Modules, which protect field wiring from cabinet faults, are often refreshed in the same maintenance window to eliminate any latent isolation degradation.

For plants that are also modernizing their operator interface layer, Honeywell Experion Station workstations and the associated FTE network switches are natural companion upgrades — a stable, fully warranted power infrastructure at the controller level is a prerequisite for reliable HMI connectivity. TOPNLMS can source and supply all of these Experion PKS ecosystem components, allowing procurement teams to consolidate vendor contacts and simplify the qualification process.

Retrofit Guidance FAQ

Q: Do I need to re-download the C300 control strategy after replacing the ACX633?
A: No. The ACX633 is a power distribution module with no embedded logic. The C300 controller retains its loaded strategy in non-volatile memory. After hot-swap, the controller resumes normal execution within seconds of the new module reaching operating voltage.

Q: Is the wiring pinout identical to the unit I am removing?
A: Yes. The 51196655-100 part number designates a specific hardware revision with a fixed connector layout. No field wiring changes are required for a like-for-like replacement.

Q: Can I replace the ACX633 while the process is running?
A: In a redundant power configuration (two ACX633 modules in the same chassis), yes — the standby unit sustains the chassis while the failed unit is swapped. In a non-redundant installation, a brief controller shutdown is required.

Q: What communication protocol does the ACX633 use?
A: None. It is a passive power supply module. No IP address, node address, or protocol configuration is involved in the replacement procedure.

Q: How much physical space does the ACX633 occupy?
A: The module occupies a single slot in the standard Experion PKS C300 chassis. Its dimensions are identical to the original, so no cabinet re-layout is needed.

Q: What if my site is migrating from TDC 3000 HPM to Experion PKS?
A: The ACX633 is native to the Experion PKS platform. A full HPM-to-C300 migration requires a new chassis, C300 controller, and associated I/O modules — the ACX633 is part of that new infrastructure, not a direct HPM power module replacement. TOPNLMS can advise on the full bill of materials for such migrations.

Warranty Assurance

Every Honeywell ACX633 51196655-100 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes bench-level power-on testing: input voltage acceptance, output voltage regulation verification, and LED status confirmation. Units that do not meet Honeywell’s published output specifications are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of fault confirmation, with return freight covered for verified defective units. Our after-sales team responds to technical inquiries within 24 hours on business days. All units are shipped with anti-static packaging, individual serial number documentation, and a test report upon request.

Procurement teams requiring formal quality documentation — including incoming inspection reports, certificate of conformance, or third-party test records — may request these at the time of order. TOPNLMS supports net-30 terms for qualified industrial accounts and accepts T/T, L/C, and major credit card payment methods.
