Honeywell 900RTC-BA50 Replacement Cable for Experion PKS C300

Product Overview

Honeywell 900RTC-BA50 Replacement Cable for Experion PKS C300: Seamless Migration & Legacy System Upgrade

When your Experion PKS C300 distributed control system requires a cable replacement or a controlled migration away from aging infrastructure, the Honeywell 900RTC-BA50 AO RTP Cable delivers a direct, wiring-compatible solution that minimizes engineering rework and plant downtime. Whether you are retiring a legacy TDC 3000 node, decommissioning an older Honeywell PlantScape controller, or simply replacing a worn or damaged termination cable in an active C300 rack, the 900RTC-BA50 slots into your existing architecture without requiring panel rewiring or I/O reassignment.

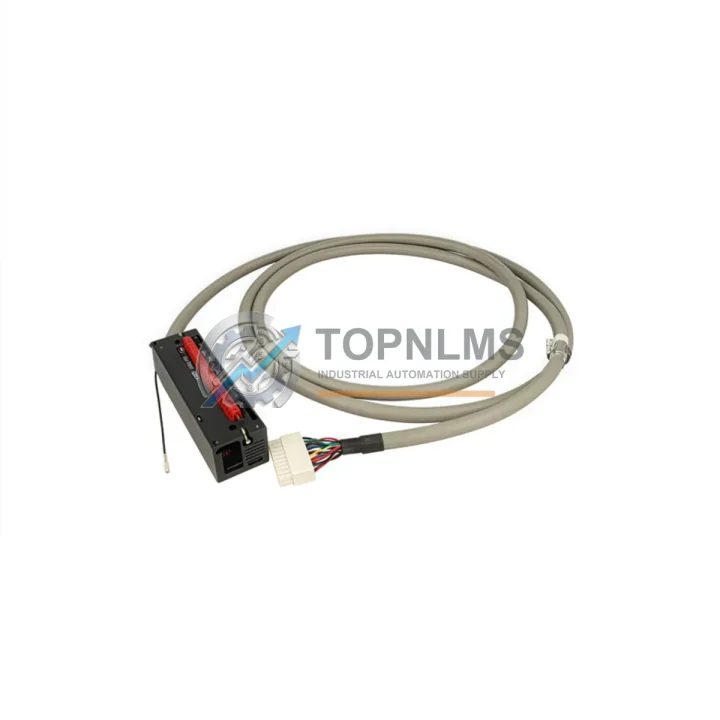

The 900RTC-BA50 is the factory-specified Analog Output Remote Termination Panel (RTP) cable for the C300 Controller platform within the Experion PKS environment. It provides the physical and electrical bridge between the C300 Controller Chassis and the field termination assembly, maintaining signal integrity across the full analog output channel range. Its 50-pin connector format is mechanically and electrically compatible with the standard Honeywell Series C I/O termination blocks, meaning that field wiring landed on your existing terminal strips does not need to be disturbed during a swap-out — a critical advantage when working in live production environments where partial shutdowns are the only option.

In retrofit projects where engineers are migrating from older Honeywell HC900 hybrid controllers or decommissioning legacy PMIO racks, the 900RTC-BA50 frequently appears as a required component in the new C300-based replacement architecture. The cable’s pinout and shielding design are optimized for the C300’s analog output modules, such as the Honeywell 900A016-0101 16-Channel Analog Output Module, ensuring that 4–20 mA loop signals remain stable and within specification after the transition. Engineers replacing a Honeywell 51304485-100 Analog Output Module from a legacy TDC 3000 system with a modern C300 equivalent will find that the 900RTC-BA50 cable is the correct termination interface for the updated rack configuration.

For system integrators managing a phased migration — where some I/O racks remain on the older Honeywell EPKS R310 or R400 platform while others are upgraded to R501 or later — the 900RTC-BA50 maintains backward compatibility across Experion PKS software revisions. This means your control strategy, function block diagrams, and loop tuning parameters can be preserved in the migration, with only the physical termination hardware being updated. The cable is also compatible with the Honeywell 51309288-225 C300 Controller Module and the associated 900P01-0001 C300 Power Supply Module, both of which are commonly retained during partial rack upgrades to reduce capital expenditure.

In control cabinet environments where DIN rail space and cable routing are constrained, the 900RTC-BA50’s flexible construction and standard 50-pin D-sub termination format allow it to be routed alongside existing Honeywell 900RTC-BA25 Digital Output RTP Cables and 900RTC-BA50-AI Analog Input RTP Cables without requiring additional cable management hardware. This is particularly relevant in brownfield upgrades where the original cabinet layout must be preserved and new cabling must follow existing conduit paths.

Communication protocol compatibility is not a concern with this cable, as the 900RTC-BA50 operates at the physical I/O termination layer below the FTE (Fault Tolerant Ethernet) and FOUNDATION Fieldbus communication stacks used by the C300 platform. However, when the broader migration project involves replacing legacy Modbus RTU or HART-based field instruments, the 900RTC-BA50’s analog output channels support HART pass-through when used with compatible C300 AO modules, preserving your ability to communicate with HART-enabled field devices such as smart positioners and transmitters without additional signal conditioning hardware.

For plants upgrading from older Yokogawa CENTUM VP or ABB 800xA systems to a Honeywell Experion PKS C300 platform, the 900RTC-BA50 is a standard line item in the termination hardware BOM. Its availability as a stocked spare part — rather than a long-lead factory order — is a significant procurement advantage during time-sensitive turnaround projects. Facilities that maintain a Honeywell 900RTC-BA50 as a critical spare alongside their C300 Controller Chassis (900C52S-0001) and Experion PKS FTE Switch modules can achieve same-shift restoration of analog output loops following an unplanned cable failure, avoiding the multi-day delays associated with emergency factory orders.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Experion PKS C300 analog output migration typically involves more than just the RTP cable. During the upgrade process, engineers commonly source the following components alongside the 900RTC-BA50 to complete the termination assembly and ensure system-level compatibility:

The Honeywell 900A016-0101 16-Channel Analog Output Module is the primary I/O module that the 900RTC-BA50 cable connects to, and it is frequently replaced as a matched pair with the cable during a rack refresh. The Honeywell 51309288-225 C300 Controller Module serves as the processing core of the upgraded rack and is often procured simultaneously when the migration involves replacing the controller as well as the I/O termination hardware. For power distribution within the C300 chassis, the Honeywell 900P01-0001 Power Supply Module provides the regulated 24 VDC required by the I/O modules and must be verified for capacity when adding new analog output channels.

In projects where digital output termination is also being upgraded, the Honeywell 900RTC-BA25 Digital Output RTP Cable is sourced alongside the 900RTC-BA50 to standardize the termination cable inventory across the rack. Similarly, the Honeywell 900RTC-BA50-AI Analog Input RTP Cable is a common companion part when both AI and AO channels are being migrated in the same shutdown window. For HART-enabled field device communication, a Honeywell Multifunction Controller (MFC) HART Interface Module may be added to the rack to enable asset management integration without additional field wiring changes.

When the migration project extends to the control network layer, Experion PKS FTE (Fault Tolerant Ethernet) Switch Modules are typically upgraded in parallel to support the increased I/O bandwidth of the new C300 architecture. For facilities that require signal isolation between field loops and the control system — particularly in hazardous area applications — MTL or P+F Signal Isolator Barriers are installed at the termination panel to maintain intrinsic safety compliance after the cable swap.

Retrofit Guidance FAQ

Q: Do I need to rewire field terminals when replacing the legacy RTP cable with the 900RTC-BA50?
A: No. The 900RTC-BA50 connects at the RTP connector on the C300 I/O module side. Field wiring landed on your existing termination blocks remains undisturbed, making this a non-intrusive replacement that can be completed during a brief process hold rather than a full shutdown.

Q: Is the 900RTC-BA50 compatible with older Experion PKS software revisions such as R310 or R400?
A: Yes. The cable is a passive termination component and is compatible across all Experion PKS software revisions from R310 through the current R501+ releases. No firmware or configuration changes are required on the C300 controller after the cable is replaced.

Q: Can the 900RTC-BA50 support HART communication to field devices?
A: HART pass-through capability depends on the C300 Analog Output module variant installed in the rack. When used with HART-enabled AO modules such as the 900A016-0101, the 900RTC-BA50 cable does not impede HART signal transmission, allowing continued communication with smart field devices.

Q: What is the physical installation space requirement for the 900RTC-BA50 in an existing control cabinet?
A: The cable uses a standard 50-pin D-sub connector and is designed to route within the existing cable management channels of a C300 chassis cabinet. No additional panel space or cable tray modifications are required for a direct replacement installation.

Q: Can this cable be used during a phased migration where some racks remain on legacy hardware?
A: Yes. The 900RTC-BA50 is specific to the C300 platform and does not interfere with adjacent legacy racks operating on HC900 or TDC 3000 hardware. Phased migrations can proceed rack-by-rack without cross-system compatibility issues.

Warranty Assurance

Every Honeywell 900RTC-BA50 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional inspection and continuity verification to confirm connector integrity and cable shielding performance. In the event of a confirmed defect within the warranty period, TOPNLMS provides direct replacement support with priority processing to minimize impact on your production schedule.

Our procurement team maintains stock of the 900RTC-BA50 in our Xiamen warehouse, enabling same-day dispatch for orders confirmed before 15:00 CST. International shipments are supported via DHL Express, FedEx International Priority, and sea freight consolidation for bulk orders. All units are shipped with original manufacturer packaging where available, and each order is accompanied by a test report and packing list for customs and incoming inspection purposes.

For time-critical turnaround projects or emergency replacement requirements, please contact our technical sales team directly to confirm stock availability and arrange expedited logistics. We support purchase orders, TT wire transfer, and letter of credit payment terms for qualified industrial buyers.
