Honeywell 900R12-0200 Original Industrial Spare HC900 Compatible

Product Overview

Honeywell 900R12-0200 Original Industrial Spare HC900 Compatible: System Stability and Industrial Spare Parts Maintenance Value

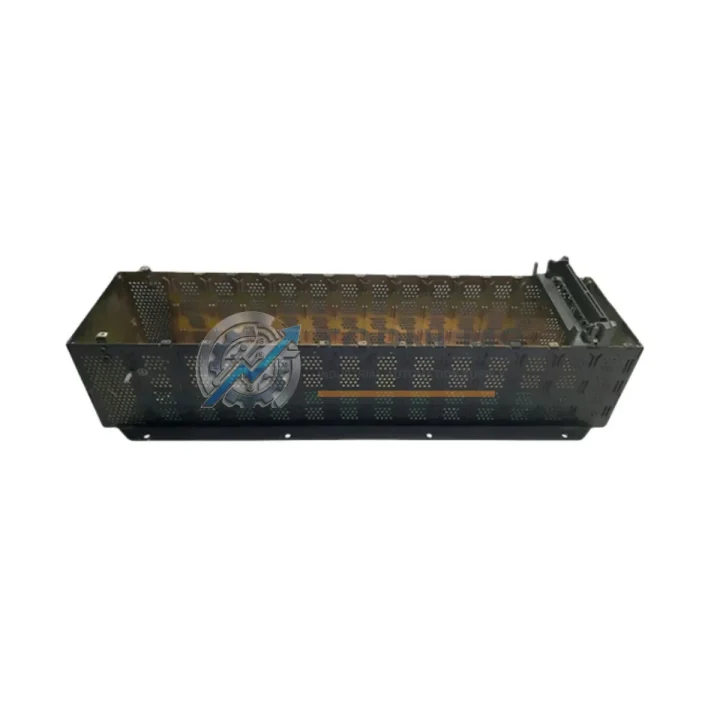

The Honeywell 900R12-0200 (also referenced as 900R12R-0200) is a 12-slot I/O expansion rack engineered for the HC900 Hybrid Controller platform — one of Honeywell’s most widely deployed process automation architectures in refining, chemical processing, power generation, and discrete manufacturing environments. For maintenance engineers and reliability teams managing aging DCS infrastructure, this rack is a mission-critical component: it physically houses and electrically interconnects the I/O modules that form the backbone of field signal acquisition and control output. When this rack fails or degrades, the entire I/O subsystem it supports goes offline, triggering unplanned shutdowns that can cost thousands of dollars per hour in lost production.

Stocking a verified original 900R12-0200 as a ready-to-deploy spare is one of the highest-ROI decisions a maintenance planner can make for any facility running HC900-based control loops. This unit ships fully tested, with a 12-month warranty, and is ready for immediate installation without firmware reconfiguration of the rack itself.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled inspection of the HC900 I/O expansion rack should never be performed in isolation. The 900R12-0200 rack is the structural and electrical hub for all I/O modules installed within it, meaning its health is directly tied to the reliability of every signal path it supports. During any planned maintenance window or annual shutdown, technicians should treat the rack inspection as the starting point for a broader control cabinet audit.

Begin by verifying the integrity of the HC900 rack link cables that connect the expansion rack back to the primary controller rack — cable degradation is a leading cause of intermittent I/O communication faults that are difficult to diagnose under live conditions. Next, inspect the HC900 power supply module (such as the 900P01-0001) seated in the rack; power supply aging is the second most common cause of rack-level failures in long-running HC900 installations. While the cabinet is open, it is good practice to check the status of installed HC900 analog input modules (e.g., 900G32-0101 for 4–20 mA loops) and digital output modules (e.g., 900G16-0101) for signs of thermal stress, connector oxidation, or firmware version mismatches.

For facilities running HC900 in safety-adjacent applications, the HC900 C70 or C75 controller module itself should be cross-checked for firmware currency and battery backup status during the same maintenance cycle. If the installation includes remote I/O over HC900 Ethernet communication modules, verify link status and packet error rates — communication module degradation often precedes rack-level faults by weeks. Maintenance teams should also inspect terminal blocks and field wiring terminations on each I/O module within the rack; loose terminations cause signal drift that is frequently misdiagnosed as sensor or transmitter failure rather than a rack-side wiring issue.

For facilities with redundant HC900 architectures, the 900R12R-0200 redundant rack variant should be stocked alongside the standard 900R12-0200 to ensure both primary and redundant I/O paths can be restored without lead-time delays. Additionally, HC900 signal isolator modules and surge protection devices on field signal inputs are worth inspecting during the same window, as these components protect the I/O modules from transient damage and are often overlooked until a failure event occurs.

Strategic Replacement Solutions

The 900R12-0200 is a direct replacement for aging or failed HC900 12-slot expansion racks across all HC900 controller generations. Because the HC900 platform has been in continuous deployment since the early 2000s, many facilities are operating racks that are 15–20 years old — well beyond the typical 10–15 year design life for industrial backplane hardware. Replacing a degraded rack proactively, rather than reactively after a failure, eliminates the risk of an unplanned shutdown during peak production.

Unlike third-party or refurbished alternatives, an original 900R12-0200 ensures full backplane signal integrity and eliminates compatibility risks with newer HC900 I/O module firmware versions. The rack installs directly into the existing control cabinet footprint with no mechanical modifications required, and all previously installed I/O modules transfer over without reconfiguration — minimizing the time from rack swap to system restoration to under two hours in most field scenarios.

For facilities planning a phased modernization rather than a full DCS migration, stocking one or two 900R12-0200 units as long-term spares extends the operational life of the HC900 platform by a decade or more, deferring capital expenditure on full system replacement while maintaining process reliability. This approach is particularly valuable in industries where DCS migration requires extensive revalidation, such as pharmaceutical manufacturing, specialty chemicals, and regulated utilities.

Support FAQ

Q1: Is the 900R12-0200 compatible with all HC900 controller versions?
Yes. The 900R12-0200 is compatible with all HC900 controller variants including the C30, C50, C70, and C75, connected via standard HC900 rack link cables. No firmware changes to the rack are required when replacing an existing unit.

Q2: What is the recommended spare parts stocking strategy for HC900 I/O racks?
For facilities with 3 or more HC900 expansion racks, we recommend stocking at least one 900R12-0200 as a cold spare. For critical or redundant architectures using the 900R12R-0200 variant, maintain one spare of each type. Rack failures are low-frequency but high-impact events — the cost of a single unplanned shutdown typically exceeds the cost of a spare rack by an order of magnitude.

Q3: How is the unit tested before shipment?
Each 900R12-0200 unit undergoes functional verification of the backplane bus, slot connectors, and power distribution rails prior to shipment. Units are shipped with protective packaging to prevent connector damage in transit. A test report is available upon request.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement or repair at our discretion.
