Honeywell 900R08R-0300 Replacement/Upgrade for HC900: Seamless Transition from Legacy Process Control Systems

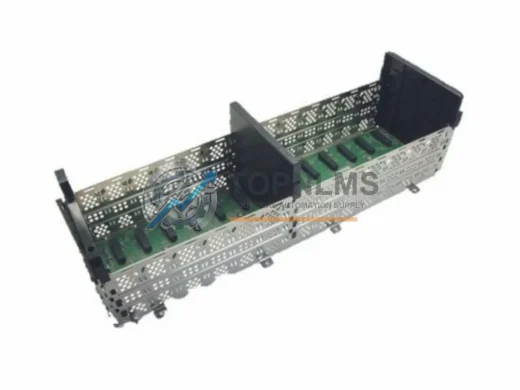

The Honeywell 900R08R-0300 is an 8-slot expansion rack designed for the HC900 Hybrid Controller platform — one of Honeywell’s most widely deployed process control architectures in refining, chemical, power generation, and discrete manufacturing environments. As legacy HC900 installations age and original racks reach end-of-service life, facilities face increasing pressure to source verified replacement chassis that maintain full backward compatibility with existing I/O modules, wiring infrastructure, and communication topology.

TOPNLMS supplies the 900R08R-0300 as a direct drop-in replacement and upgrade solution for HC900 systems currently running on aging or discontinued rack hardware. Whether your facility is executing a phased modernization, responding to an unplanned rack failure, or building a strategic spare-parts inventory, this chassis delivers the physical and electrical compatibility required to minimize engineering rework and reduce total downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful HC900 rack replacement rarely involves the chassis alone. In practice, field engineers executing a migration from a failed or end-of-life rack will simultaneously audit and often replace adjacent components to ensure system integrity across the full control loop.

The 900R08R-0300 expansion rack is most commonly deployed alongside the HC900 C50 or C70 Controller Module, which serves as the primary CPU and communication hub for the HC900 platform. When the expansion rack is replaced, it is standard practice to verify the controller module firmware version and confirm backplane communication is re-established before returning the loop to automatic mode.

Power integrity is equally critical. The HC900 Power Supply Module (900P01-0101 or 900P24-0101) feeds the rack backplane, and a rack swap is an ideal opportunity to inspect or replace the power supply if it has accumulated significant operating hours. Facilities running 24 VDC distributed power architectures should also verify that the upstream power distribution panel and fusing remain within specification after the rack is reinstalled.

I/O module transfer is the most labor-intensive step in any rack migration. Analog input modules such as the 900G32-0101 (32-channel analog input) and digital output modules like the 900B08D-0101 (8-channel digital output) must be carefully removed from the old rack, inspected for contact wear, and reseated in the replacement chassis. Field wiring connected to the terminal blocks on these modules does not need to be disturbed if the replacement rack is installed in the same panel position.

Communication continuity is another key concern. HC900 systems typically use Ethernet-based Modbus TCP to interface with SCADA, DCS historian, or HMI platforms. The HC900 Communication Module (900CS-0001) handles this interface, and its configuration — including IP address, node ID, and polling rate — is stored in the controller, not the rack, so no reconfiguration is required after a rack swap. For facilities using RS-485 serial links to legacy field devices, the existing serial wiring can be reconnected to the communication module without modification.

HMI connectivity should also be validated post-replacement. Operator stations running Honeywell Experion PKS or third-party SCADA platforms communicating via OPC-DA or OPC-UA will automatically re-establish their data connections once the controller module is powered and the Ethernet link is restored. No tag remapping or server reconfiguration is typically required.

For facilities managing a broader HC900 modernization program, it is common to simultaneously source HC900 Analog Output Modules (900AO-0001 series) and HC900 Thermocouple Input Modules (900TI-0001 series) as part of a consolidated spare-parts order. Consolidating procurement reduces per-unit shipping costs and ensures that all replacement components arrive together, enabling a single planned maintenance window rather than multiple unplanned interventions.

Finally, for sites where the HC900 rack is installed in a control cabinet alongside a Honeywell Safety Manager or a third-party safety PLC, it is important to verify that the rack replacement does not affect the physical separation or grounding requirements specified in the site’s functional safety documentation. TOPNLMS can provide documentation support and pre-shipment testing reports upon request.

Retrofit Guidance FAQ

Q: Do I need to rewire field terminals when replacing the 900R08R-0300 rack?
A: No. The 900R08R-0300 uses the same backplane connector and physical slot layout as the original HC900 expansion rack. I/O modules with their attached terminal blocks can be transferred directly to the replacement rack without disturbing field wiring. This is the primary reason facilities prefer a like-for-like rack replacement over a full platform migration.

Q: Will my HC Designer configuration need to be modified after the rack swap?
A: No. The HC900 rack is a passive backplane — it carries no firmware or configuration data. All control logic, tag definitions, and communication parameters reside in the HC900 controller module. After the rack is replaced and the controller is powered, the system resumes normal operation using the existing configuration without any programming changes.

Q: Is the 900R08R-0300 compatible with both C50 and C70 HC900 controllers?
A: Yes. The 8-slot expansion rack is compatible with all HC900 controller variants, including the C30, C50, C70, and C75. The rack communicates with the controller via the HC900 expansion bus, which is consistent across all controller generations.

Q: What communication protocols does the HC900 system support after rack replacement?
A: The HC900 platform supports Modbus TCP/IP, Modbus RTU (RS-485), OPC-DA, and OPC-UA. None of these protocol configurations are affected by a rack replacement. The communication module retains its IP address and protocol settings, and SCADA or DCS connections are restored automatically once the controller is online.

Q: How much physical space does the 900R08R-0300 require in the control cabinet?
A: The 900R08R-0300 has the same physical dimensions as the original HC900 8-slot expansion rack. No cabinet modifications, additional DIN rail sections, or panel cutouts are required. The replacement rack installs in the same mounting position using the existing hardware.

Q: Can I use the 900R08R-0300 as a spare for a system that is still operational?
A: Yes. Maintaining a spare rack in inventory is a best practice for HC900 installations in critical process environments. TOPNLMS recommends storing the spare rack in its original packaging in a climate-controlled environment and performing a functional verification test before placing it into service.

Warranty Assurance

Every 900R08R-0300 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a pre-delivery inspection that includes visual examination, connector integrity verification, and backplane continuity testing. Units that do not pass inspection are not shipped.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or issue a full refund, depending on the customer’s preference and stock availability. Warranty claims are processed within 3 business days of receiving the returned unit and supporting documentation.

TOPNLMS maintains in-stock inventory of the 900R08R-0300 to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipments via DHL, FedEx, or UPS Express. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

For B2B procurement teams managing planned maintenance schedules, TOPNLMS offers consolidated invoicing, packing list documentation, and country-of-origin certificates to support customs clearance. Technical support is available via email and phone throughout the procurement and commissioning process.
