Honeywell 900A01-0102 Replacement Solution for 900 Series: Seamless Transition & Legacy System Compatibility

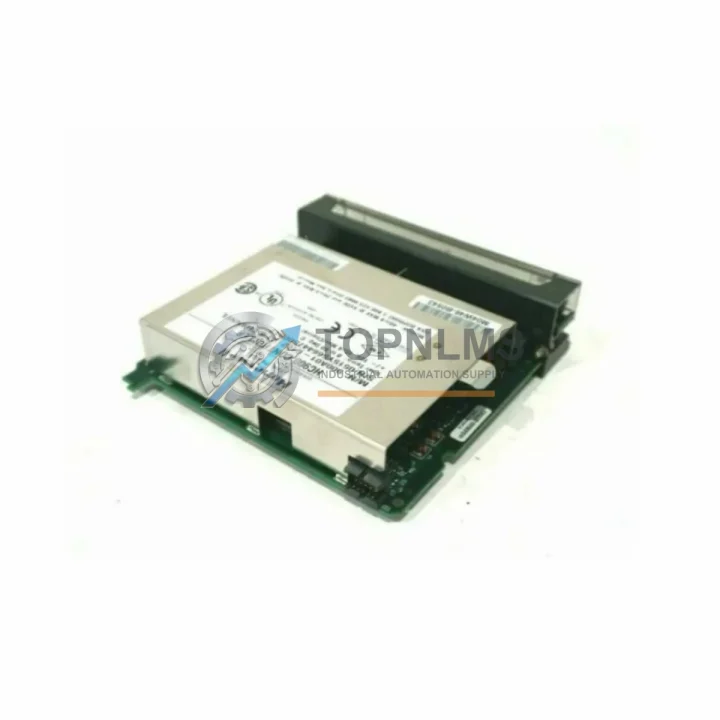

The Honeywell 900A01-0102 is an 8-channel analog input module designed for the HC900 Hybrid Controller platform — one of the most widely deployed distributed control systems in process industries including chemical, oil & gas, power generation, and pharmaceutical manufacturing. As aging HC900 installations approach end-of-life or face discontinued spare parts availability, plant engineers and procurement teams are actively seeking verified replacement and upgrade pathways that minimize engineering rework, reduce downtime, and preserve existing wiring infrastructure.

TOPNLMS maintains ready-to-ship inventory of the 900A01-0102 module, sourced from authorized supply chains and subjected to pre-shipment functional verification. Whether you are executing a like-for-like spare replacement, a phased system modernization, or a full DCS migration project, this module provides the compatibility baseline your engineering team requires to maintain process continuity.

The 900A01-0102 accepts up to 8 analog input channels, supporting standard 4–20 mA current loop signals and thermocouple/RTD inputs depending on configuration. It slots directly into the HC900 controller rack alongside the 900C71-0243-00 HC900 Process Controller and communicates over the HC900 backplane bus without requiring firmware changes or I/O address remapping when replacing a failed unit of the same model. This plug-and-replace compatibility is critical for facilities that cannot afford extended process shutdowns.

For sites upgrading from earlier HC900 rack configurations — including those running the 900C52-0143-00 or 900C32-0143-00 controller variants — the 900A01-0102 retains full backward compatibility with existing rack assemblies, terminal blocks, and field wiring. Engineers migrating from legacy Honeywell TDC 3000 or PlantScape systems to the HC900 platform will find that the 900A01-0102’s signal conditioning and channel density align well with the I/O consolidation goals typical of such migration projects.

In multi-rack HC900 installations, the 900A01-0102 is commonly deployed alongside the 900G01-0001 Remote I/O Scanner module, which extends the HC900 I/O network over Ethernet to remote marshalling cabinets. This architecture is particularly relevant for brownfield upgrades where field wiring cannot be rerouted and remote I/O nodes must be preserved. The 900A01-0102 integrates into these distributed I/O topologies without requiring changes to the HC900 Ethernet peer-to-peer communication configuration.

Control cabinet space is a frequent constraint in retrofit projects. The 900A01-0102 occupies a single slot in the standard HC900 I/O rack, maintaining the same physical footprint as the modules it replaces. This is especially important when upgrading systems housed in existing DIN-rail or 19-inch rack enclosures where panel real estate is limited. The module’s front-face terminal wiring design allows field cables to remain connected during module swap, further reducing installation time during planned maintenance windows.

Communication protocol compatibility is another key consideration for migration engineers. The HC900 platform uses a proprietary backplane protocol for I/O communication, and the 900A01-0102 is fully compliant with this protocol across all supported HC900 firmware revisions. For sites that have integrated HC900 with supervisory SCADA systems via Modbus TCP, OPC DA, or Honeywell’s own Experion PKS interface, the replacement of the 900A01-0102 does not affect the upper-layer communication stack — tag mappings, historian connections, and alarm configurations remain intact.

Procurement teams evaluating this replacement should also consider stocking complementary modules to support a complete system refresh. The 900B01-0102 8-channel analog output module is frequently ordered alongside the 900A01-0102 to complete an I/O pair for PID control loops. Similarly, the 900H01-0202 digital input module and 900G01-0001 scanner are common co-purchases for sites executing a full I/O rack replacement. For power supply redundancy — a best practice in critical process applications — the 900P01-0001 HC900 power supply module should be evaluated as part of the same procurement cycle.

TOPNLMS ships the 900A01-0102 with full pre-shipment inspection documentation, including functional test records and visual inspection reports. All units are packaged in ESD-safe materials with original or equivalent protective packaging to prevent transit damage. Standard lead time from our Xiamen warehouse is 3–7 business days for international orders, with expedited options available for emergency plant shutdowns.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful HC900 system migration rarely involves a single module replacement. In practice, plant engineers executing a retrofit or modernization project will assess the entire I/O rack, controller, and communication infrastructure simultaneously. The 900A01-0102 analog input module is most effective when deployed as part of a coordinated upgrade that also addresses analog outputs, digital I/O, power supply integrity, and network connectivity.

For analog output requirements, the 900B01-0102 8-channel analog output module is the natural complement to the 900A01-0102, providing the output side of closed-loop PID control configurations. Sites running legacy 4-channel analog output modules can consolidate to the 8-channel format, reducing rack slot consumption and simplifying spare parts inventory management.

Digital I/O expansion is commonly required during HC900 upgrades. The 900H01-0202 digital input module and 900H02-0202 digital output module provide 16-channel discrete I/O capability and are fully compatible with the same HC900 rack that houses the 900A01-0102. For applications requiring high-density digital I/O — such as motor control center interfaces or valve position monitoring — these modules can be added to existing racks without controller reconfiguration.

Remote I/O architectures benefit from the 900G01-0001 Remote I/O Scanner, which extends the HC900 I/O network over standard Ethernet to satellite marshalling cabinets located up to several hundred meters from the main controller rack. This is a critical component for brownfield upgrades where field wiring consolidation is not feasible and distributed I/O nodes must be maintained.

Power supply reliability is foundational to any HC900 upgrade. The 900P01-0001 HC900 Power Supply Module provides regulated DC power to the I/O rack and should be evaluated for replacement alongside aging analog input modules, particularly in installations that have been in service for more than a decade. Redundant power supply configurations using dual 900P01-0001 units are recommended for critical process applications.

For sites that require signal isolation between field devices and the HC900 I/O rack — common in high-noise industrial environments or where intrinsic safety barriers are required — signal isolators and Zener barriers should be specified as part of the migration bill of materials. These passive or active isolation components protect the 900A01-0102 input channels from ground loops and transient overvoltage events that are common in legacy plant wiring systems.

Programming and configuration support for HC900 migrations is facilitated by the HC900 Designer software, which communicates with the controller via the 900C71-0243-00 or compatible controller module using a standard Ethernet connection. No proprietary programming cable is required for modern HC900 revisions, simplifying on-site commissioning and remote configuration support.

Retrofit Guidance FAQ

Q: Can I replace a failed 900A01-0102 without powering down the entire HC900 rack?
A: HC900 supports hot-swap of I/O modules in configurations where the controller is set to allow it. However, TOPNLMS recommends a controlled power-down swap during a planned maintenance window to ensure clean I/O initialization and avoid transient process upsets. Consult your HC900 system documentation for hot-swap eligibility based on your controller firmware revision.

Q: Will my existing field wiring connect directly to the replacement 900A01-0102?
A: Yes. The 900A01-0102 uses the same front-face screw terminal wiring interface as previous HC900 analog input modules. Field cables can remain connected to the terminal block during module removal and reinstallation, provided the terminal block is of the removable type used in standard HC900 I/O racks.

Q: Do I need to update my HC900 controller program after replacing the 900A01-0102?
A: A like-for-like replacement of the 900A01-0102 does not require any changes to the HC900 controller program. I/O channel assignments, tag names, scaling parameters, and alarm limits are stored in the controller, not the module. The replacement module will assume the same I/O identity upon rack initialization.

Q: Is the 900A01-0102 compatible with Modbus TCP SCADA integration?
A: Yes. The HC900 controller handles all SCADA communication, including Modbus TCP and OPC DA interfaces. Replacing the 900A01-0102 analog input module does not affect the controller’s communication stack. Existing Modbus register maps and OPC tag configurations remain valid after module replacement.

Q: What is the physical installation space requirement for the 900A01-0102?
A: The 900A01-0102 occupies one standard slot in the HC900 I/O rack. It is compatible with all HC900 rack sizes, including 4-slot, 8-slot, and 12-slot configurations. No additional mounting hardware or panel cutout modifications are required for a direct replacement installation.

Q: Can the 900A01-0102 be used in a migration from Honeywell TDC 3000 to HC900?
A: The 900A01-0102 is a native HC900 module and is not directly interchangeable with TDC 3000 I/O hardware. However, it is the target module for TDC 3000 to HC900 migration projects, where field wiring is re-terminated to HC900 I/O racks housing the 900A01-0102. TOPNLMS can provide migration planning support upon request.

Warranty Assurance

Every 900A01-0102 module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers manufacturing defects, functional failures under normal operating conditions, and any discrepancies between the shipped unit and the product specification. TOPNLMS does not ship untested or uninspected units — each module undergoes a pre-shipment functional verification process that includes power-on testing, channel continuity checks, and visual inspection for physical damage or counterfeit indicators.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to return of the defective module and confirmation of the failure mode. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for replacement dispatch on confirmed warranty cases. Expedited replacement is available for emergency plant situations.

Procurement teams can request pre-shipment inspection reports, test records, and certificate of conformance documentation at the time of order. All units are shipped in ESD-safe packaging with tamper-evident seals. International shipments from our Xiamen facility include commercial invoice, packing list, and country of origin documentation to support customs clearance.

TOPNLMS maintains stock of the 900A01-0102 and related HC900 modules to support both emergency replacement orders and planned procurement cycles. Volume pricing and blanket order arrangements are available for MRO departments and system integrators managing multi-site HC900 installations.
