Honeywell 8C-TDOD51 Replacement/Upgrade Solution for C300

Product Overview

Honeywell 8C-TDOD51 Replacement/Upgrade Solution for C300: Smooth Migration from Legacy DCS to Experion PKS Architecture

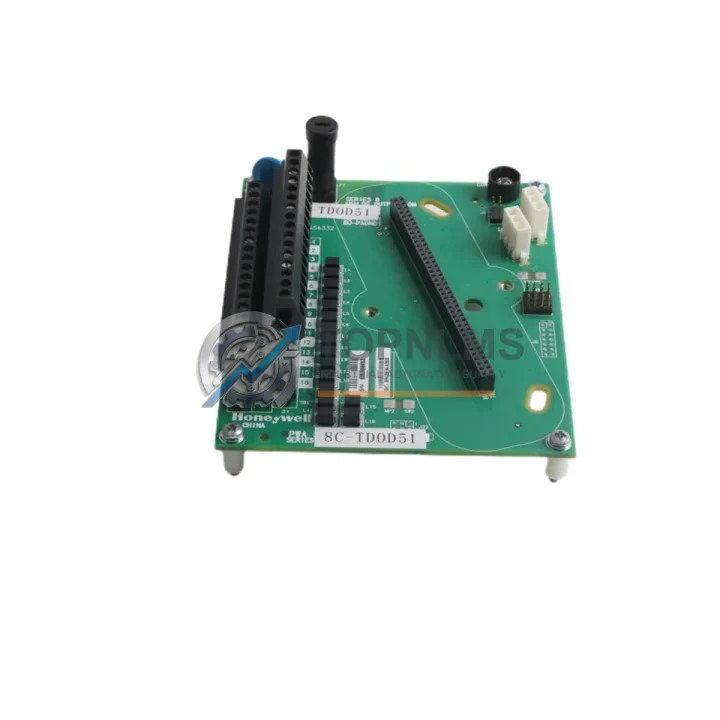

The Honeywell 8C-TDOD51 is a 51-channel Digital Output Module engineered for the C300 Controller platform within the Honeywell Experion PKS (Process Knowledge System) distributed control system. Delivering 24 VDC field output with per-channel diagnostics and open-wire detection, this module is the authoritative replacement and upgrade target for aging or discontinued digital output modules across oil & gas, petrochemical, power generation, pulp & paper, and advanced manufacturing facilities.

At TOPNLMS, we specialize in sourcing, pre-shipment testing, and supplying the 8C-TDOD51 as a direct replacement for failed, end-of-life, or obsolete modules within existing Experion PKS installations. Whether your facility is executing a full DCS migration, replacing a failed module to minimize unplanned downtime, or consolidating spare-parts inventory ahead of a planned turnaround shutdown, this module ships ready for installation with full documentation support and a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to or within the Experion PKS C300 architecture rarely involves a single module swap. Field engineers replacing the 8C-TDOD51 must evaluate the surrounding system components to ensure end-to-end compatibility and long-term reliability across the entire control loop.

The 8C-TDOD51 interfaces directly with its corresponding Field Termination Assembly (FTA) — typically the 8C-TAOX11 or an equivalent digital FTA — via a dedicated cable assembly. Verifying FTA condition and cable integrity before the module swap prevents misdiagnosis of field wiring faults as module failures. In parallel, the C300 Controller module (8C-PCNT02 or 8C-PCNT03) must be confirmed at a compatible firmware revision to ensure the replacement DO module is correctly enumerated on the FTE network without requiring a full controller reload.

For facilities upgrading from a C200 or C200E controller platform, the migration path typically involves replacing the C200 controller chassis with a C300 IOTA backplane assembly, updating the C300 controller card, and then populating I/O slots with current-generation modules such as the 8C-TDID51 (51-channel Digital Input) alongside the 8C-TDOD51 (51-channel Digital Output) to match the original I/O point count. This approach preserves existing field wiring and FTA terminations, dramatically reducing retrofit labor costs and cabinet rework — a critical advantage when working within tight turnaround windows.

Communication infrastructure is equally important during any DCS upgrade. The Experion PKS FTE network relies on a dedicated, redundant Ethernet backbone. Industrial managed switches conforming to Honeywell FTE topology requirements must be validated for port count and VLAN configuration before the new module comes online. If the plant also operates PROFIBUS DP or Modbus RTU field devices, the 8C-PDOB01 PROFIBUS Gateway module or equivalent communication bridge should be reviewed for firmware compatibility with the updated C300 controller revision to avoid protocol translation gaps during commissioning.

Power supply integrity is a prerequisite for any DCS module replacement. The C300 chassis draws regulated 24 VDC from the system power supply — typically a CC-PWR01 or equivalent redundant power module. Confirming power supply output voltage and load capacity before inserting the replacement 8C-TDOD51 prevents inrush-related faults during initial power-on. For larger cabinet upgrades or legacy installations with aging wiring, a signal isolator or surge protection terminal block on the field wiring side is strongly recommended to protect the new module from transient voltages common in brownfield environments.

For sites performing a phased migration — keeping legacy C200 I/O online while commissioning new C300 modules in parallel — the Experion PKS Control Builder engineering workstation must be licensed and configured to manage both controller generations simultaneously. TOPNLMS can advise on module sequencing and staging strategies to support zero-unplanned-downtime migration, including pre-staging spare 8C-TDOD51 units and companion 8C-TDID51 digital input modules for immediate deployment during planned outages.

Retrofit Guidance FAQ

Q: Can I replace the 8C-TDOD51 without rewiring the field terminals?
A: In most cases, yes. The 8C-TDOD51 connects to the field via its FTA, not directly to field wiring. As long as the existing FTA and cable assembly are in good condition, the module can be swapped without touching field terminations. This is one of the key advantages of the Experion PKS modular architecture for brownfield replacements.

Q: Do I need to update the Experion PKS software before installing the replacement module?
A: The 8C-TDOD51 is supported from Experion PKS R310 onward. If your system is running an earlier release, a software patch or upgrade may be required before the module is recognized correctly. TOPNLMS recommends confirming the installed release version in Control Builder before placing your order.

Q: Is the 8C-TDOD51 compatible with both redundant and non-redundant C300 controller configurations?
A: Yes. The module operates in both simplex and redundant C300 controller configurations. In redundant setups, the FTE network handles automatic failover without requiring module-level redundancy on the I/O side, simplifying the spare-parts strategy.

Q: What is the physical installation procedure?
A: Power down the affected I/O chassis slot (or use hot-swap procedures if supported by your system revision), remove the faulty module, insert the 8C-TDOD51 into the same slot, reconnect the FTA cable, and restore power. The C300 controller will automatically detect and configure the module. No manual address setting or DIP switch configuration is required.

Q: Can this module replace units from other DCS brands during a full platform migration?
A: The 8C-TDOD51 is a Honeywell-native module and is not a direct plug-in replacement for modules from other DCS vendors such as ABB, Emerson DeltaV, or Siemens PCS 7. However, it is the correct target module when migrating field I/O to an Experion PKS C300 platform from any legacy system, provided the FTA and field wiring are re-terminated to Honeywell standards during the retrofit.

Q: What documentation is included with the shipment?
A: Each unit ships with a commercial invoice, packing list, and certificate of conformance. Additional documentation such as test reports or country-of-origin certificates can be provided upon request to support import customs clearance requirements.

Warranty Assurance

Every Honeywell 8C-TDOD51 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point functional inspection including power-on self-test, channel continuity verification, and firmware version confirmation. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned module. Our average response time for warranty inquiries is within one business day. We maintain buffer stock of critical C300 series modules — including the 8C-TDOD51, 8C-TDID51, and companion controller cards — to support rapid exchange without extended lead times.

For time-critical plant shutdowns or emergency replacements, expedited shipping options are available to most destinations worldwide. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units. All shipments are tracked and insured.

TOPNLMS serves industrial end-users, EPC contractors, MRO distributors, and system integrators globally. All transactions are supported by commercial invoice, packing list, and certificate of conformance documentation suitable for import customs clearance and internal procurement audit trails.
