Honeywell 8C-TDILA1 51307141-175 Replacement for TDC 3000

Product Overview

Honeywell 8C-TDILA1 51307141-175 Replacement for TDC 3000: Smooth Transition & Legacy System Compatibility

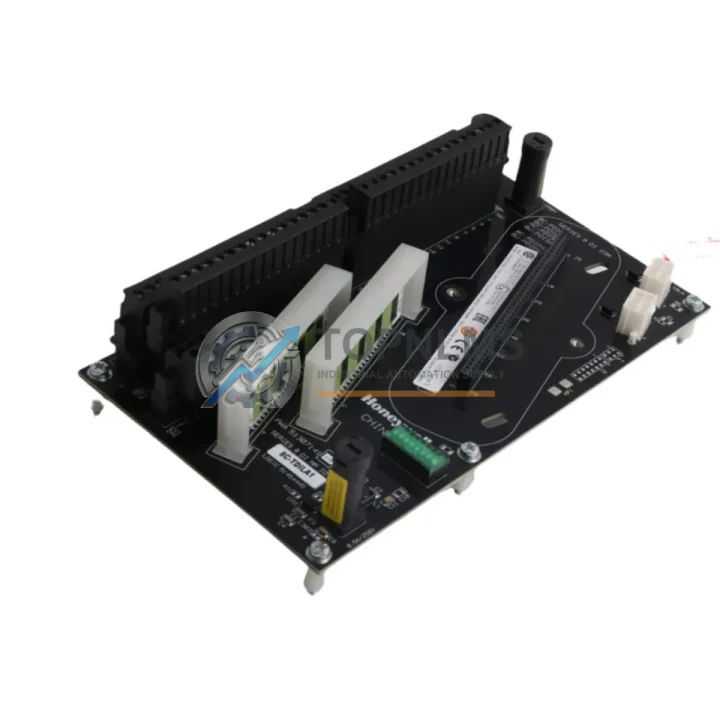

The Honeywell 8C-TDILA1 (Part No. 51307141-175) is a TDC 3000 Series DCS Accumulation Module designed for process data acquisition and accumulation within Honeywell’s legacy distributed control architecture. As TDC 3000 components approach end-of-life and spare parts become increasingly scarce, facilities running continuous process operations — refineries, chemical plants, power generation units, and pulp & paper mills — face mounting pressure to source verified replacement modules before unplanned shutdowns occur.

TOPNLMS supplies the 8C-TDILA1 / 51307141-175 as a direct replacement module, fully tested and ready for installation into existing TDC 3000 racks. Our inventory supports both emergency breakdown replacements and planned preventive maintenance programs, allowing your engineering team to maintain system continuity without committing to a full DCS migration project.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC 3000 module replacement rarely involves a single component. When integrating the 8C-TDILA1 into an existing or partially upgraded control system, your team will typically work alongside several complementary modules and assemblies.

On the power side, the Honeywell 8C-PCIC1 power conditioner and interface card provides the regulated rack power that the 8C-TDILA1 depends on. If your existing power module is showing signs of age — intermittent faults, voltage ripple, or thermal shutdowns — replacing it in the same maintenance window as the accumulation module eliminates a common root cause of recurring I/O errors.

For field wiring, the accumulation module connects to the process through a Field Termination Assembly (FTA), typically a Honeywell 8C-TAIX11 or equivalent analog input FTA. If the FTA’s terminal blocks or signal conditioning circuits have degraded, re-terminating to a new FTA during the module swap prevents nuisance alarms and signal drift after commissioning.

Communication integrity across the Local Control Network depends on healthy LCN Interface Modules such as the Honeywell 51401642-100 or the NIM (Network Interface Module) installed in the Universal Station or Application Module. Before assuming the 8C-TDILA1 is the sole fault source, verify LCN cable continuity and NIM firmware revision — a mismatch here can cause the replacement module to appear faulty during initial power-up.

If your facility is running a hybrid architecture where TDC 3000 coexists with a newer Honeywell Experion PKS system, the Series C I/O modules (such as the CC-TAIX01 analog input module) may already be handling some loops. In this scenario, the 8C-TDILA1 continues to serve legacy loops that have not yet been migrated, and both systems share historian data through the Experion server. This phased approach avoids a full cutover and keeps production running during the transition.

For facilities still operating Honeywell PM (Process Manager) controllers with associated 8C-series I/O modules — including analog output modules like the 8C-TAOX11 and digital input modules such as the 8C-TDID11 — the 8C-TDILA1 slots into the same rack infrastructure without requiring chassis modifications. This makes it straightforward to replace a failed accumulation module while leaving adjacent I/O modules undisturbed.

In control cabinets where space is constrained, signal isolators and signal conditioners (such as Phoenix Contact MACX or P+F KFD series) are often installed between field instruments and the FTA to protect the module from ground loops and overvoltage events. Verifying that these isolators are functioning correctly before installing the replacement module protects your investment and reduces the risk of repeat failures.

Finally, if your site uses a Honeywell Universal Station (US) or Application Module (AM) for supervisory control and data display, confirm that the database point configuration for the accumulation module is backed up before the swap. Restoring the point database after module replacement is a routine step, but having a verified backup eliminates the risk of losing loop tuning parameters and alarm setpoints accumulated over years of operation.

Retrofit Guidance FAQ

Q: Can the 8C-TDILA1 be installed without powering down the entire TDC 3000 rack?
A: TDC 3000 racks are generally not hot-swap capable at the module level without specific rack isolation procedures. Consult your site’s MOC (Management of Change) procedure and Honeywell’s installation guidelines. In most cases, the affected rack section must be de-energized, but adjacent racks on the same LCN segment can remain online.

Q: Will my existing field wiring need to be re-terminated?
A: If you are replacing a same-generation 8C-TDILA1 module, the FTA wiring remains unchanged — the module plugs into the existing backplane connector. If migrating from a TDC 2000 or early-generation module with a different FTA footprint, re-termination at the FTA terminal strip will be required.

Q: Is the LCN communication address retained after module replacement?
A: The LCN node address is stored in the system database (Universal Station or AM), not in the module hardware. After physical replacement, the module will be recognized at the same address once the database is loaded and the LCN scan cycle completes — typically within 2–5 minutes of power-up.

Q: What programming changes are required after installing the replacement module?
A: For a like-for-like replacement (same part number), no control logic changes are required. The existing CL (Control Language) programs and database points remain valid. If the replacement involves a hardware revision change, verify the release notes for any parameter mapping differences.

Q: How do I verify the module is functioning correctly after installation?
A: Use the Honeywell Engineer’s Console or GUS (Global User Station) to check the module’s status display. A healthy module will show “OK” status with no fault codes. Verify that all configured accumulation points are scanning and that process values match field instrument readings within expected tolerances.

Q: Can this module communicate with third-party SCADA systems via Modbus or OPC?
A: The 8C-TDILA1 communicates natively over the Honeywell LCN. Integration with third-party SCADA or MES systems is achieved through the Honeywell Experion server’s OPC DA/UA gateway or through a dedicated protocol converter — not directly from the module itself.

Warranty Assurance

Every Honeywell 8C-TDILA1 (51307141-175) shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on self-test, communication interface check, and visual inspection for physical damage, corrosion, or counterfeit indicators.

If a unit exhibits a defect or failure within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or full refund — your choice. Our after-sales response target is within 24 hours for warranty claims submitted by email to [email protected].

We maintain buffer stock of high-demand TDC 3000 modules to support rapid dispatch. Standard international shipping from Xiamen, China reaches most destinations in 3–7 business days via DHL Express or FedEx International Priority. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

For procurement teams requiring documentation, we provide: commercial invoice, packing list, certificate of conformance, and — where available — original manufacturer test records. All export documentation complies with applicable trade regulations for industrial automation components.
