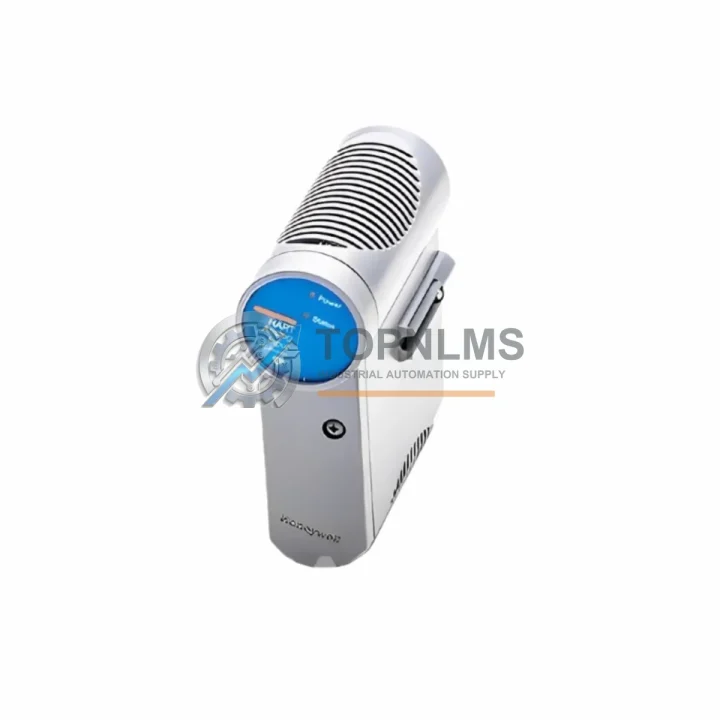

Honeywell 8C-PDIS01 51454360-175 Ruggedized Differential Pressure Input Module for Harsh Industrial Environments

The Honeywell 8C-PDIS01 (P/N 51454360-175) is an 8-channel differential pressure input module engineered for the Experion PKS C300 DCS platform — one of the most widely deployed distributed control systems in critical process industries worldwide. Designed to deliver unwavering signal accuracy and system integrity under the most demanding field conditions, this module is a cornerstone component for facilities where uptime is non-negotiable and measurement precision directly impacts safety and production efficiency.

Built to Honeywell’s stringent industrial-grade standards, the 8C-PDIS01 is purpose-built to operate reliably in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference — conditions routinely encountered in oil refineries, gas processing plants, chemical complexes, power generation facilities, and heavy metallurgical operations. Its ruggedized design philosophy ensures that even in the harshest plant environments, differential pressure measurements remain stable, repeatable, and traceable.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated Honeywell Experion PKS architecture, the 8C-PDIS01 does not operate in isolation — it functions as part of a tightly coordinated ecosystem of control, safety, and communication hardware. Within the same C300 controller cabinet, it works alongside the Honeywell C300 Controller Module (51309288-175), which serves as the central processing unit orchestrating all I/O data exchange across the FTE network. Signal integrity from the 8C-PDIS01 is further protected by Honeywell IOLIM (I/O Link Interface Module) components that manage the physical layer connections between field instruments and the DCS backplane.

For installations requiring functional safety compliance, the 8C-PDIS01 is commonly deployed alongside Honeywell Safety Manager SC safety controllers and SM-series safety I/O modules, ensuring that differential pressure readings from critical process loops — such as reactor vessel pressure differentials or separator level measurements — are simultaneously available to both the process control layer and the safety instrumented system (SIS). This dual-layer architecture is essential for SIL 2 and SIL 3 certified loops in accordance with IEC 61511.

Power distribution within the control cabinet is typically handled by Honeywell 8C-PWRR01 redundant power supply modules, which provide the stable, conditioned DC power that the 8C-PDIS01 and its companion I/O modules require for uninterrupted operation. Redundant power architecture eliminates single points of failure in the power supply chain — a critical design requirement for continuous process plants operating 24/7.

Communication between the Experion PKS system and field devices is managed through Honeywell FTE (Fault Tolerant Ethernet) network switches and HART multiplexers, enabling the 8C-PDIS01 to pass not only primary process values but also HART diagnostic data from connected transmitters — such as Honeywell SmartLine ST800 differential pressure transmitters — back to the Experion Station for predictive maintenance analysis. Terminal connections at the field junction are typically made through Honeywell 8C-TAIX12 or equivalent termination assemblies, which provide the physical interface between field wiring and the I/O module backplane, simplifying installation and replacement without disturbing field wiring.

For facilities managing mixed I/O requirements within the same cabinet, the 8C-PDIS01 coexists with analog output modules such as the 8C-PAOX01, digital input modules like the 8C-PDID01, and relay output modules, all sharing the same C300 backplane infrastructure. This modular, scalable architecture allows maintenance teams to replace individual I/O modules — including the 8C-PDIS01 — without shutting down adjacent control loops, minimizing planned maintenance windows and eliminating unplanned production losses.

Application in Critical Infrastructure

The Honeywell 8C-PDIS01 51454360-175 is deployed across the full spectrum of critical process industries where differential pressure measurement is fundamental to safe and efficient operations.

In oil and gas upstream and midstream facilities — including offshore platforms, onshore gas compression stations, and pipeline metering skids — the 8C-PDIS01 monitors differential pressure across flow orifice plates, filter separators, and heat exchangers. Its ability to maintain measurement accuracy despite the vibration generated by reciprocating compressors and the electromagnetic interference from variable frequency drives (VFDs) makes it a preferred choice for these demanding environments.

In power generation plants, including coal-fired, gas turbine, and combined-cycle facilities, the module monitors differential pressure across boiler feedwater systems, steam drum level (via d/p cell), and turbine lube oil filters. The high ambient temperatures near boiler areas — often exceeding 50°C — test the thermal limits of standard I/O hardware; the 8C-PDIS01’s rated operating range ensures continued accuracy without signal drift or module failure.

In chemical and petrochemical complexes, where process upsets can have cascading safety consequences, the 8C-PDIS01 provides the reliable differential pressure data that feeds into advanced process control (APC) strategies and safety interlock logic. Its compatibility with HART-enabled transmitters allows operators to perform remote diagnostics on field instruments without interrupting the process — a significant advantage in facilities where access to field instruments may be restricted due to hazardous area classifications (ATEX Zone 1/2 or NEC Class I Division 2).

In water and wastewater treatment plants, the module monitors differential pressure across membrane filtration systems, pump discharge headers, and chemical dosing systems. Its resistance to high humidity and condensation — common in water treatment environments — ensures long-term reliability without the corrosion-related failures that affect lesser-quality I/O hardware.

In metallurgical and mining operations, including blast furnace control systems and mineral processing plants, the 8C-PDIS01 withstands the heavy dust loading, mechanical shock, and wide temperature swings that characterize these environments, providing the stable process data that operators depend on to maintain production targets and equipment protection.
