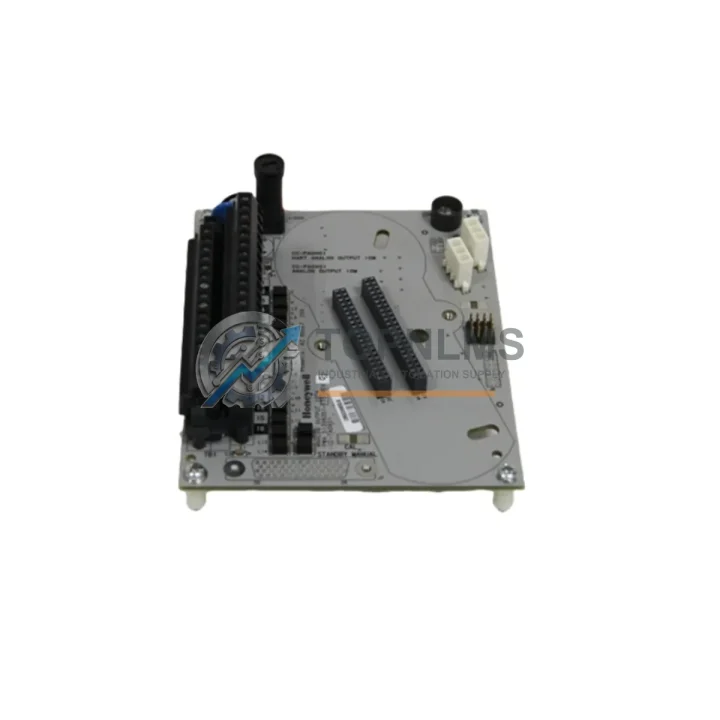

Honeywell 83957061-003 Original Industrial Spare TDC 3000 Compatible

Product Overview

Honeywell 83957061-003 Original Industrial Spare TDC 3000 Compatible: System Stability Through Proven Relay Output Technology

In any continuous-process facility running Honeywell TDC 3000 or PlantScape distributed control systems, the integrity of every output channel directly determines plant uptime. The Honeywell 83957061-003 is an original digital output relay module engineered for these platforms, providing the hardened switching performance that field engineers and maintenance planners depend on during both scheduled turnarounds and emergency corrective actions. Sourced as a genuine original spare, this module eliminates the compatibility risk that comes with aftermarket substitutes and ensures your control loop behaves exactly as commissioned.

Industrial facilities that have operated TDC 3000 cabinets for a decade or more understand the compounding risk of deferred maintenance. A single failed relay output channel can cascade into a process interlock failure, triggering an unplanned shutdown that costs far more than a proactive spare-parts investment. Stocking the 83957061-003 as a ready-to-install replacement is one of the most cost-effective decisions a maintenance manager can make for aging DCS infrastructure.

Critical Technical Specs

Preventive Maintenance Strategy

A relay output module replacement rarely occurs in isolation. When a TDC 3000 cabinet is opened for corrective maintenance on the 83957061-003, experienced maintenance engineers treat the intervention as an opportunity to audit the entire output subsystem. Relay contacts are subject to wear from inductive load switching, and if one channel has degraded, adjacent modules in the same card cage are likely approaching the same threshold.

During the same maintenance window, it is standard practice to inspect the Honeywell 621-0020RC or equivalent digital input module that forms the feedback loop for the relay outputs — a failed input module can mask a relay fault and delay diagnosis. The TDC 3000 power supply module (commonly the 620-0036 series) should also be load-tested, as voltage sag under relay switching transients is a leading cause of intermittent output faults. If the cabinet includes a Honeywell 51304485-100 communication module, its firmware version and link status should be verified, since a degraded data highway connection can cause false output commands that accelerate relay wear.

For facilities running mixed I/O architectures, the Honeywell 51401544-150 analog output module and 51304516-150 analog input module in the same process loop should be calibrated during the same outage window to avoid a second shutdown. Terminal blocks and field wiring terminations — particularly Honeywell 51196694-001 termination assemblies — should be torque-checked and inspected for oxidation, as loose terminations are a common root cause of relay output instability that is often misdiagnosed as a module fault.

Where the TDC 3000 system interfaces with a Honeywell HPM (High-Performance Process Manager) or a PlantScape Server, the associated IOLIM (I/O Link Interface Module) and FTA (Field Termination Assembly) panels should be included in the inspection scope. Facilities that have extended their TDC 3000 systems with Honeywell Experion PKS migration bridges should also verify that the relay output addressing has been correctly mapped in the new control strategy before returning the loop to service.

A complete preventive maintenance kit for a TDC 3000 relay output cabinet typically includes: the output relay module itself (83957061-003), a spare power supply module, at least one digital input feedback module, a communication gateway card, and a set of pre-tested termination assemblies. Maintaining this kit on-site reduces mean time to repair (MTTR) from days to hours.

Strategic Replacement Solutions

The Honeywell TDC 3000 platform has been in service at refineries, chemical plants, and power generation facilities for over three decades. While Honeywell has transitioned its primary DCS offering to Experion PKS, a significant installed base of TDC 3000 and PlantScape systems remains in active production — and will continue to do so for the foreseeable future, given the capital cost and risk associated with full DCS migration.

For these facilities, the 83957061-003 represents a direct, plug-compatible replacement that requires no re-engineering of the control strategy, no reconfiguration of the data highway, and no revalidation of the process safety case. The module slots into the existing card cage, the relay output addresses are preserved, and the system returns to service in the same configuration it left — a critical advantage in regulated industries where any change to the control system triggers a formal management-of-change (MOC) process.

Compared to sourcing a refurbished or third-party equivalent, an original Honeywell 83957061-003 from a verified distributor eliminates the risk of counterfeit components, undisclosed repair history, and voided system warranties. Every unit shipped from TOPNLMS is function-tested prior to dispatch and covered by a 12-month warranty, giving maintenance teams the confidence to install and return the loop to automatic control without extended commissioning delays.

For facilities planning a phased migration from TDC 3000 to Experion PKS, maintaining a buffer stock of critical I/O modules — including the 83957061-003 — provides the operational flexibility to defer migration on a loop-by-loop basis without accepting the risk of running on degraded hardware. This strategy is widely used in refinery turnaround planning and is endorsed by Honeywell’s own lifecycle management guidelines for legacy DCS platforms.

Support FAQ

Q1: Is the 83957061-003 still in production, and how long can I expect to source it?
Honeywell has transitioned primary production to Experion PKS I/O, but the 83957061-003 remains available through authorized spare-parts distributors and the secondary market. TOPNLMS maintains stock of this module and can advise on long-term procurement planning. We recommend customers with active TDC 3000 systems establish a minimum buffer stock of 2–3 units per cabinet to cover the expected lifecycle of their plant.

Q2: How do I verify compatibility before installation?
The 83957061-003 is designed for the TDC 3000 and PlantScape card cage backplane. Compatibility can be confirmed by matching the module’s part number against your system’s I/O assignment list and verifying the slot type in the cabinet layout drawing. If you require assistance with compatibility verification, our technical team can review your system documentation prior to shipment.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact TOPNLMS at [email protected] with your invoice number and a description of the fault. Replacement or repair is typically processed within 5–10 business days of receiving the returned unit.

Q4: Can I order multiple units for inventory stocking, and are volume discounts available?
Yes. TOPNLMS supports bulk procurement for maintenance departments and MRO (Maintenance, Repair, and Operations) inventory programs. Volume pricing is available for orders of 3 or more units of the same part number. Contact us at [email protected] or +86 18359293191 to discuss your stocking requirements and receive a formal quotation.
