Honeywell 80363972-150 Replacement for TDC 3000 Experion PKS

Product Overview

Honeywell 80363972-150 Replacement/Upgrade Solution for TDC 3000 & Experion PKS: Seamless Transition to a Reliable Digital Input Module

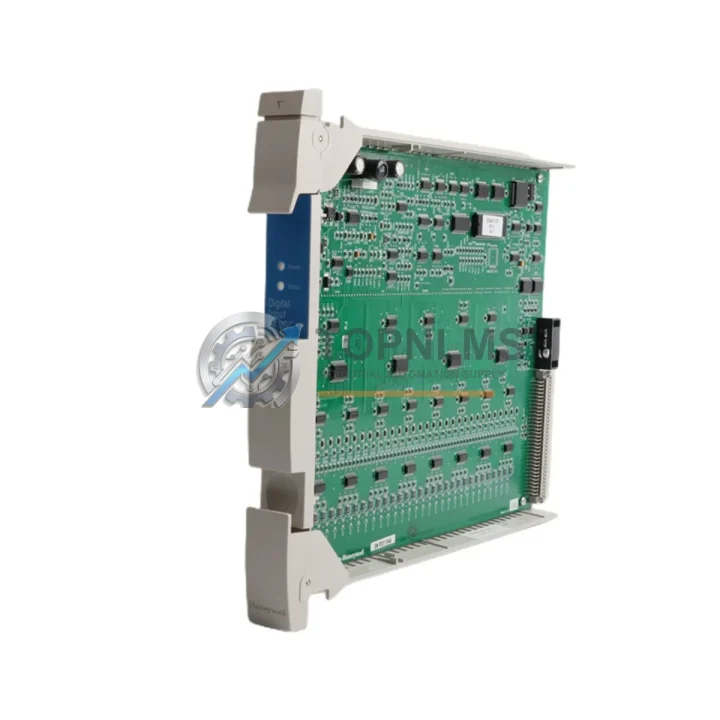

The Honeywell 80363972-150 is a 16-channel Digital Input Module engineered for the TDC 3000 and Experion PKS distributed control system platforms. As legacy TDC 3000 installations age and Honeywell progressively transitions customers toward the Experion PKS architecture, sourcing a verified, tested replacement for the 80363972-150 has become a critical procurement priority for plant engineers, maintenance managers, and automation integrators worldwide.

At TOPNLMS, we specialize in supplying hard-to-find, discontinued, and active DCS/PLC modules for industrial control system modernization projects. Whether you are executing a like-for-like spare replacement to minimize unplanned downtime, or planning a phased migration from your existing TDC 3000 infrastructure to a hybrid Experion PKS architecture, the 80363972-150 Digital Input Module we supply has been inspected, function-tested, and is ready for immediate deployment.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC 3000 to Experion PKS migration — or a straightforward like-for-like spare replacement — rarely involves a single module in isolation. In practice, plant engineers replacing the 80363972-150 Digital Input Module will typically need to assess the condition and availability of several adjacent system components to ensure a complete, stable upgrade.

On the I/O side, the 80363972-150 works in conjunction with the corresponding Field Termination Assembly (FTA) — typically a Honeywell 80363972-series FTA — which provides the physical wiring interface between field instruments and the DI module. In most retrofit scenarios, the existing FTA can be retained without modification, eliminating the need for field rewiring and dramatically reducing installation time. However, if the FTA shows signs of corrosion, contact wear, or physical damage, sourcing a replacement FTA simultaneously is strongly recommended.

For sites running a hybrid TDC 3000 / Experion PKS architecture, the Honeywell C300 Controller and its associated IOTA (I/O Termination Assembly) are commonly deployed alongside legacy HPM I/O cards during phased migration. The C300 platform supports both legacy and new I/O through the Series C I/O Link, allowing engineers to retain existing TDC 3000 I/O racks — including modules like the 80363972-150 — while progressively migrating control logic to the Experion PKS environment.

Communication infrastructure is another critical consideration. The TDC 3000 Local Control Network (LCN) and Universal Control Network (UCN) rely on dedicated Network Interface Modules (NIM) and Highway Gateway Modules (HGM) to bridge legacy field buses with the Experion PKS server. Ensuring these gateway components are functional and properly configured is essential before commissioning any replacement I/O module.

On the power distribution side, the Honeywell HPM Power Supply Module — typically a 51401288-100 or equivalent — provides regulated DC power to the I/O rack. A degraded or aging power supply is a common root cause of intermittent I/O faults in legacy TDC 3000 systems, and it is prudent to verify power supply health as part of any I/O module replacement project.

For sites that require expanded analog input capacity alongside digital inputs, the Honeywell 80363969-150 Analog Input Module is a common companion module in the same HPM rack, handling 4–20 mA process signals from transmitters and sensors. Similarly, the 80363975-150 Digital Output Module is frequently found in the same control cabinet, managing discrete output signals to solenoids, motor starters, and relay panels.

During commissioning and post-replacement verification, engineers typically use the Honeywell Engineering Workstation (EWS) running TDC 3000 Engineering Console or Experion Configuration Studio to confirm module recognition, channel status, and I/O point mapping. No firmware flashing or driver installation is required for a direct 80363972-150 replacement — the module is recognized automatically by the HPM upon insertion.

For sites planning a broader control system modernization, the Honeywell Experion PKS EPKS-C300 Controller Bundle — including the C300 controller, redundant power supplies, and Series C I/O modules — represents the recommended migration path endorsed by Honeywell’s lifecycle management program. TOPNLMS can assist in sourcing individual components or complete rack assemblies to support phased or full-cutover migration strategies.

Retrofit Guidance FAQ

Q: Can I replace the 80363972-150 without rewiring the field terminals?
A: Yes. The 80363972-150 interfaces with the field via a dedicated Field Termination Assembly (FTA). In a like-for-like replacement, the FTA remains in place and no field wiring changes are required. Simply remove the faulty module from the HPM rack slot, insert the replacement, and restore power. The system will recognize the module automatically.

Q: Do I need to re-download the control program after replacing the module?
A: No re-download is required for a direct slot replacement. The HPM controller retains the I/O configuration in its memory. However, it is best practice to verify all 16 channel statuses in the Honeywell Engineering Console or Experion Operator Station after replacement to confirm correct signal mapping.

Q: Is the 80363972-150 compatible with both TDC 3000 and Experion PKS systems?
A: Yes. The module is designed for the TDC 3000 HPM I/O rack and is fully compatible with Experion PKS environments that retain legacy HPM I/O infrastructure. It communicates via the proprietary Honeywell LCN/UCN bus, which is supported in hybrid TDC 3000 / Experion PKS architectures.

Q: What are the physical installation requirements?
A: The 80363972-150 occupies a standard HPM I/O card slot. No additional mounting hardware, DIN rail adapters, or cabinet modifications are required. The module is a direct form-factor replacement for the original card.

Q: What communication protocols does this module support?
A: The module communicates via Honeywell’s proprietary Local Control Network (LCN) and Universal Control Network (UCN) protocols. It does not natively support HART, PROFIBUS, or Modbus — field signal conditioning or protocol converters would be required if integration with third-party systems is needed.

Q: How do I verify the module is functioning correctly after installation?
A: Use the Honeywell Engineering Workstation to check module status in the HPM configuration display. All 16 digital input channels should report their correct ON/OFF states. Cross-reference with field instrument readings to confirm signal integrity. TOPNLMS recommends a 24-hour burn-in observation period after installation before returning the system to full production.

Warranty Assurance

Every Honeywell 80363972-150 Digital Input Module supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Our warranty program is designed to give industrial buyers the confidence to procure legacy and hard-to-find DCS components without the risk typically associated with the secondary market.

Prior to shipment, each unit undergoes a multi-stage inspection process: visual inspection for physical damage, connector and backplane contact verification, and functional testing to confirm correct digital input channel response. Units that do not pass our quality gate are not listed for sale.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical support team with your order number and a description of the fault, and we will arrange a replacement shipment or issue a refund based on your preference. We do not require lengthy RMA procedures or third-party inspection reports for standard warranty claims.

We ship globally from our Xiamen, China warehouse, with typical lead times of 3–7 business days for international orders. Express shipping options are available for urgent breakdown situations. All shipments are tracked and insured.

For volume procurement, OEM partnerships, or consignment stock arrangements, please contact our sales team directly to discuss pricing, lead times, and technical support options.
