Honeywell 80363969-100 Replacement Solution for TDC 3000 HPM

Product Overview

Honeywell 80363969-100 Replacement Solution for TDC 3000 HPM: Seamless Transition from Legacy DCS to Modern Control

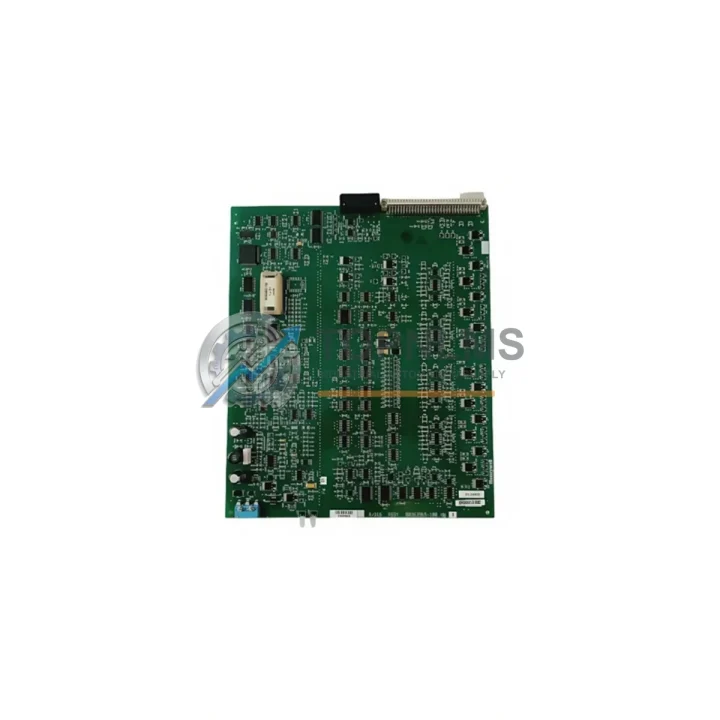

The Honeywell 80363969-100 is a critical Analog Output Module designed for the TDC 3000 and TotalPlant Solution (TPS) High-Performance Process Manager (HPM) distributed control system platform. As Honeywell progressively phases out legacy TDC 3000 hardware, facilities running continuous process operations — including petrochemical refining, power generation, pulp and paper, and pharmaceutical manufacturing — face increasing pressure to source reliable replacement modules that maintain full backward compatibility with existing field wiring, marshalling cabinets, and control logic.

TOPNLMS supplies the 80363969-100 as a direct drop-in replacement for aging or failed units within the HPM subsystem. Each module is sourced from verified industrial channels, inspected prior to dispatch, and backed by a 12-month warranty. Our inventory supports urgent plant maintenance scenarios where extended downtime is not an option.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 80363969-100 is rarely an isolated action. In a functioning HPM node, the Analog Output Module works in concert with a broader set of hardware that must be evaluated during any retrofit or emergency replacement project.

The HPM processor card — typically the Honeywell 51304485-100 or its successor revision — governs all I/O communication within the HPM node. If the processor card is also approaching end-of-life, it is advisable to assess its firmware revision compatibility with the replacement AOM before installation. Similarly, the Honeywell 51401288-100 I/O Link Interface Module serves as the communication bridge between the HPM card cage and the UCN backbone; a degraded I/O Link module can cause intermittent AOM faults that are often misdiagnosed as module failures.

Field Termination Assemblies (FTAs) — such as the Honeywell 51304441-150 analog output FTA — connect the 80363969-100 to field instruments via marshalling. These FTAs are wiring-compatible and do not require modification when swapping the AOM. However, if the FTA terminal blocks show corrosion or mechanical wear, concurrent replacement is recommended to avoid nuisance trips post-commissioning.

Power distribution within the HPM cabinet is managed by the Honeywell 51190076-100 Power Entry Module. Facilities performing a broader HPM modernization should verify that the 24 VDC bus voltage is within specification before inserting a new AOM, as undervoltage conditions can cause the module to fail its self-test sequence on startup.

For sites migrating from TDC 3000 toward the Experion PKS platform, the Honeywell EHPM (Enhanced HPM) or Series C I/O modules offer a migration path that preserves existing UCN wiring infrastructure while enabling Experion supervisory control. In such hybrid architectures, the 80363969-100 can continue to serve as a functional AOM within the legacy HPM node while the migration is staged across turnaround windows.

Communication integrity across the UCN is maintained by Honeywell UCN Coax Taps and Repeaters. During any HPM card replacement, it is good practice to verify UCN signal levels at the node to rule out coax degradation as a contributing factor to module faults. Additionally, the Honeywell 51309276-175 Analog Input Module — often installed in adjacent slots — should be checked for cross-channel interference if the AOM replacement is being performed in response to process deviation alarms rather than a hard module failure.

For facilities that require a programming interface during commissioning, the Honeywell TPS Engineering Console or a compatible Windows-based workstation running Control Builder is required to verify AOM channel assignments, scaling parameters, and alarm limits after module swap. No new control logic is required for a like-for-like replacement, but channel verification is mandatory per standard HPM maintenance procedures.

Retrofit Guidance FAQ

Q: Does replacing the 80363969-100 require rewiring at the marshalling cabinet?
A: No. The 80363969-100 interfaces with the HPM system via the existing Field Termination Assembly (FTA). The FTA remains in place; only the module card is swapped in the HPM card cage. Field wiring at the marshalling cabinet is unaffected.

Q: Will existing control logic (CL programs) need to be modified?
A: For a like-for-like replacement within the same HPM revision, no CL or FBM logic changes are required. The replacement module inherits the same tag assignments and channel configuration from the HPM database. A channel verification step via Control Builder is recommended but no reprogramming is necessary.

Q: Is the 80363969-100 compatible with both TDC 3000 and TPS (TotalPlant Solution) architectures?
A: Yes. The module is designed for the HPM subsystem, which is common to both TDC 3000 and TPS platforms. It communicates over the UCN and is recognized by both the legacy TDC 3000 US (Universal Station) and the TPS GUS (Global User Station) operator interfaces.

Q: What communication protocol does this module use?
A: The 80363969-100 communicates via Honeywell’s proprietary UCN (Universal Control Network), a deterministic coaxial token-passing network. It does not use Ethernet, PROFIBUS, or FOUNDATION Fieldbus — it is a native HPM I/O module and requires no protocol converter.

Q: How much physical space does the replacement require in the cabinet?
A: The module occupies a single standard HPM card cage slot. No additional DIN rail space, mounting brackets, or cabinet modifications are required. The form factor is identical to the unit being replaced.

Q: What is the recommended procedure for hot-swap or online replacement?
A: Honeywell HPM supports online module replacement (OMR) for AOM cards in redundant configurations. For non-redundant installations, a controlled process hold or output freeze should be implemented before card extraction. Consult the HPM Maintenance and Troubleshooting Guide (document EP09-110-1) for site-specific procedures.

Warranty Assurance

Every Honeywell 80363969-100 Analog Output Module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify physical integrity, connector condition, and board-level visual inspection. Units showing signs of damage, counterfeit markings, or non-conforming revision labels are rejected and not offered for sale.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for plant-critical applications. Our after-sales response target is within 24 hours of claim submission. Replacement units are dispatched from our Xiamen warehouse with express freight options available for urgent plant maintenance scenarios.

Procurement teams can request a Certificate of Conformance, packing list, and commercial invoice for customs clearance. We support EXW, FOB Xiamen, and CIF terms depending on destination. Payment terms and volume pricing are available for MRO procurement contracts and framework agreements.

For technical pre-sales questions regarding compatibility, revision matching, or HPM system architecture, contact our engineering support team before placing your order. We maintain a reference database of HPM module revisions and can advise on cross-compatibility between module generations.
