Honeywell 621-0020 Replacement for DCS 620 Series

Product Overview

Honeywell 621-0020 Replacement for DCS 620 Series: Smooth Migration & Upgrade Solution

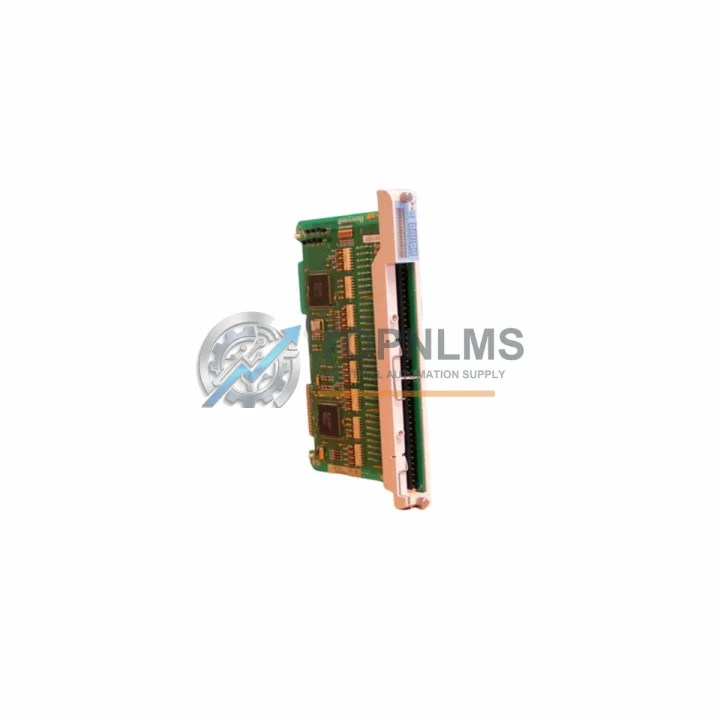

The Honeywell 621-0020 Universal Analog Input Module is a critical field I/O component within the Honeywell 620 Series Distributed Control System (DCS) platform. As aging 620 Series installations approach end-of-life or face discontinued spare part availability, plant engineers and procurement teams are increasingly seeking a reliable, drop-in replacement or structured upgrade path that minimizes engineering rework, preserves existing field wiring, and reduces unplanned downtime.

TOPNLMS supplies the 621-0020 as a tested, verified replacement module for facilities operating legacy Honeywell DCS architectures. Whether your site is running a full 620 Series rack or integrating the 621-0020 into a hybrid migration strategy alongside newer Honeywell Experion PKS or Safety Manager platforms, this module provides the analog input compatibility your control system requires.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy 620 Series DCS installation to a modernized control architecture involves more than swapping a single analog input module. In practice, the 621-0020 replacement is typically part of a broader system refresh that may include updating the 620-0016 or 620-0035 controller modules, which serve as the central processing units coordinating I/O across the rack. Sites running multiple I/O types will often simultaneously address digital output modules such as the 621-1020 or 621-1030 alongside the analog input upgrade, ensuring the entire rack is brought to a consistent firmware and hardware revision level.

Field termination integrity is another key consideration. Many 620 Series installations use dedicated termination panels or marshalling cabinets where signal cables land before connecting to the I/O rack. Replacing or verifying the condition of these termination assemblies — including shielded twisted-pair cabling and surge protection barriers — is recommended during any 621-0020 swap to prevent ground loops or signal noise that could affect measurement accuracy on sensitive RTD or thermocouple channels.

For sites migrating toward Honeywell Experion PKS, the 621-0020 can serve as an interim solution while the broader migration to C300 controllers and CHARM I/O modules is planned and budgeted. CHARM (Characterization Module) technology allows individual channel-level signal type configuration without hardware changes, making it the natural long-term successor to the universal analog input approach of the 621-0020. During the transition period, the 621-0020 continues to provide reliable analog input acquisition on the legacy rack while engineering teams complete the Experion migration project.

Communication infrastructure upgrades often accompany DCS modernization. If your 620 Series system communicates with a supervisory SCADA layer via Modbus RTU or a proprietary Honeywell data highway, verifying that the replacement 621-0020 module’s firmware revision is compatible with your existing communication gateway or OPC server configuration is an important pre-commissioning step. In some installations, a Honeywell FSC (Fail-Safe Controller) safety system operates in parallel with the 620 Series process control layer; ensuring that the analog input signals shared between the two systems remain correctly scaled after the module replacement is essential for maintaining SIL-rated safety function integrity.

Power supply stability is a frequently overlooked factor in module replacement projects. The 620 Series rack power supply modules — such as the 620-0094 or equivalent — should be inspected and load-tested before commissioning the replacement 621-0020, particularly in installations where the rack has been in continuous service for more than ten years. A marginal power supply that has been operating within tolerance on aging modules may exhibit voltage droop when a new module with slightly different inrush characteristics is installed, potentially causing intermittent diagnostic faults during startup.

Retrofit Guidance FAQ

Q: Can I replace the 621-0020 without rewiring field terminals?
A: In the majority of 620 Series installations, the 621-0020 uses the same terminal block pinout as earlier analog input variants. Field wiring can typically be retained without modification. However, if the existing installation uses a custom termination panel or non-standard cable routing, verify the wiring diagram against the 621-0020 installation manual before proceeding.

Q: Do I need to modify my control program after replacing the module?
A: If you are replacing a like-for-like 621-0020 (same part number, same revision), no program changes are required. If upgrading from an earlier analog input module variant with fewer configurable signal types, you may need to update channel configuration parameters in Honeywell Control Builder to match the new module’s capabilities. A full I/O force test is recommended after any module replacement.

Q: Is the 621-0020 compatible with my existing 620 Series backplane and controller?
A: Yes. The 621-0020 is designed for the standard 620 Series I/O rack backplane and is compatible with 620 Series controllers. If your site is running a mixed-generation rack with both original and later-revision modules, confirm that the rack backplane firmware supports the 621-0020 revision you are installing.

Q: What communication protocols does the 621-0020 support?
A: The 621-0020 communicates via the Honeywell 620 Series proprietary backplane bus. It does not natively support Modbus, PROFIBUS, or Ethernet/IP as standalone protocols; communication to external systems is handled at the controller level through the 620 Series communication modules.

Q: How much physical space does the 621-0020 require in the control cabinet?
A: The 621-0020 occupies a single standard slot in the 620 Series I/O rack. No additional panel space or DIN rail mounting is required. The module’s form factor is identical to other 620 Series I/O modules, making it a direct physical replacement without cabinet modification.

Q: What should I check before commissioning the replacement module on-site?
A: Prior to installation, verify rack power supply output voltage and ripple, inspect backplane connector pins for corrosion or damage, confirm channel configuration parameters in the controller program, and perform a loop check on all connected field instruments. After installation, monitor the module’s diagnostic LEDs during the first power-up cycle and verify all channel readings against known reference values before returning the loop to automatic control.

Warranty Assurance

Every Honeywell 621-0020 Universal Analog Input Module supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification testing to confirm analog input channel operation, backplane communication integrity, and power consumption within specification. This pre-shipment testing process is documented and available upon request for quality assurance purposes.

In the event of a confirmed module defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a credit at our discretion, subject to inspection of the returned module. Our after-sales response target is within 24 business hours for warranty claims submitted via email to [email protected]. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize the impact on your production schedule.

For procurement teams requiring documentation for vendor qualification, TOPNLMS can provide a certificate of conformance, packing list, and commercial invoice with each shipment. We support EXW, FOB Xiamen, and CIF terms depending on your logistics requirements. Bulk orders for MRO stocking programs are accommodated with lead time confirmation provided at the time of order placement.

We understand that unplanned downtime in a DCS-controlled process facility carries significant operational and financial consequences. Our inventory management and expedited shipping capabilities are structured to support emergency replacement scenarios, with same-day dispatch available for in-stock units when orders are confirmed before 14:00 CST.
