Honeywell 51454475-100 CC-SCMB02 Original Industrial Spare C300

Product Overview

Honeywell 51454475-100 CC-SCMB02 Original Industrial Spare C300: System Stability and Maintenance Value

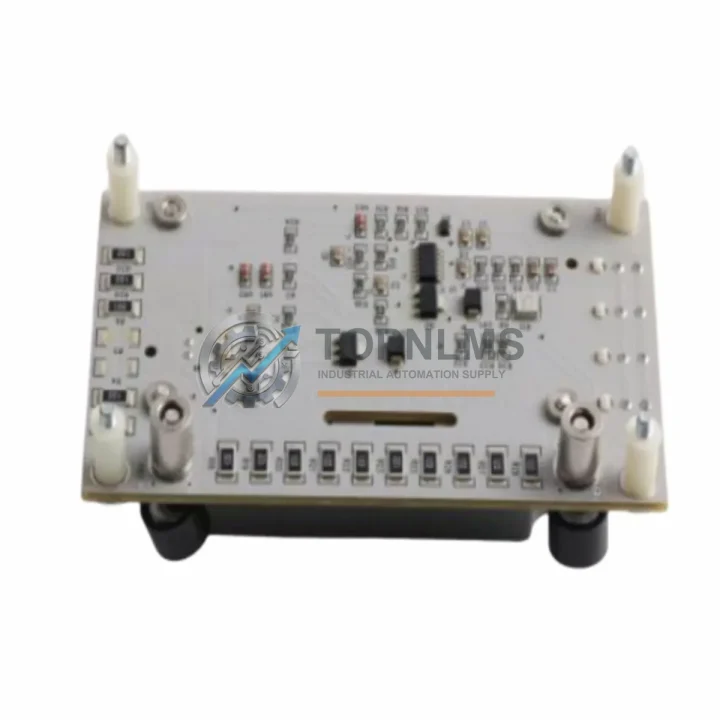

The Honeywell 51454475-100 (CC-SCMB02) is an original digital output module engineered for the Experion PKS C300 Controller platform — one of Honeywell’s most widely deployed distributed control systems in refining, petrochemical, power generation, and advanced manufacturing environments. As a genuine OEM spare part, this module delivers the signal integrity, firmware compatibility, and long-term reliability that maintenance engineers depend on when managing critical process control infrastructure.

In industrial facilities where unplanned downtime translates directly into production loss and safety risk, having a verified, ready-to-install spare of the CC-SCMB02 on the shelf is not optional — it is a core element of any responsible maintenance strategy. This module supports direct hot-swap replacement within the C300 chassis, minimizing intervention time and restoring loop control without requiring system reconfiguration or firmware re-flashing.

Critical Technical Specs

Preventive Maintenance Strategy

The CC-SCMB02 digital output module sits at the heart of the C300 I/O subsystem, driving field devices such as solenoid valves, motor starters, and discrete actuators. A structured preventive maintenance program for the C300 platform should treat this module as part of a broader inspection cycle — not an isolated component.

During scheduled shutdowns or annual turnarounds, maintenance teams should simultaneously inspect the CC-PAIM01 power supply module that feeds the I/O chassis, as power fluctuations are a leading cause of premature module failure. The CC-TCNT01 controller module and its redundant partner should be checked for firmware currency and communication health via the Experion Station console. If the facility runs redundant I/O, the CC-SCMB01 (single-channel variant) and associated CC-SCMR01 relay output modules in the same cabinet should be inspected at the same time to avoid partial-loop failures after maintenance.

Terminal blocks and field wiring connectors — particularly the TB-SCMB02 terminal assembly — should be torque-checked and visually inspected for oxidation or loose terminations, which can cause intermittent DO faults that are difficult to diagnose remotely. In high-vibration environments, consider replacing aging CC-SCMB02 module latches and ejector handles as part of the chassis inspection.

For facilities running Experion PKS with HART-enabled field devices, the CC-PAIH02 HART I/O module in adjacent slots should be verified for proper HART pass-through configuration. Communication modules such as the CC-PCNT01 Profibus interface or CC-LINK gateway modules, if present in the same control cabinet, should be included in the inspection checklist to ensure the full I/O network remains stable after any module swap.

Proactive spare inventory planning should also include the CC-SCMB02 module fuse kit and any applicable C300 chassis backplane connectors, as these wear items are often overlooked until a field replacement is already underway. Maintaining at least one verified spare CC-SCMB02 per control cabinet — alongside a spare C300 controller module (CC-TCNT01) — is the industry-standard recommendation for facilities with zero-tolerance downtime requirements.

Strategic Replacement Solutions

The Honeywell 51454475-100 / CC-SCMB02 is a direct OEM replacement for aging or failed digital output modules within the Experion PKS C300 architecture. Unlike third-party alternatives, this original module requires no firmware patching, no I/O mapping reconfiguration, and no compatibility testing — it installs into the existing chassis slot and resumes operation immediately upon system recognition.

For facilities managing legacy Experion PKS installations running on R310 through R500 software releases, sourcing original CC-SCMB02 modules from a verified distributor eliminates the risk of firmware mismatch that can occur with refurbished or counterfeit parts. This is particularly critical in SIL-rated loops or safety-instrumented systems where module certification traceability is required for audit compliance.

When a C300 digital output module fails in service, the typical replacement window — from fault identification to loop restoration — is under 30 minutes with a pre-staged spare on site. Without a spare, the same process can extend to days when factoring in procurement lead times, import clearance, and incoming inspection. Stocking the CC-SCMB02 as a strategic spare directly reduces mean time to repair (MTTR) and supports the facility’s overall equipment effectiveness (OEE) targets.

This module is also suitable for system expansion projects where additional discrete output capacity is required within an existing C300 chassis, providing a cost-effective path to I/O growth without controller replacement.

Support FAQ

Q1: Is this module compatible with all Experion PKS C300 software releases?
The CC-SCMB02 (51454475-100) is compatible with Experion PKS R310 and all subsequent releases through R500+. For installations running pre-R310 firmware, a software upgrade is recommended prior to module replacement. Always verify the target chassis firmware version against Honeywell’s compatibility matrix before installation.

Q2: How is the module tested before shipment?
Each unit undergoes functional power-on testing and visual inspection prior to dispatch. Modules are verified for backplane connector integrity, output channel continuity, and firmware readability. A test report is available upon request for quality-critical procurement.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental exposure beyond rated specifications. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: Can this module be used as a like-for-like replacement without reconfiguring the Experion system?
Yes. The CC-SCMB02 is a plug-and-play replacement within the C300 I/O chassis. The Experion PKS system automatically recognizes the module upon insertion and restores the existing I/O configuration from the controller database. No manual reconfiguration is required in standard replacement scenarios.
