Honeywell 51405098-100 LCNP4E Replacement for TDC 3000: Smooth Migration & Legacy System Upgrade

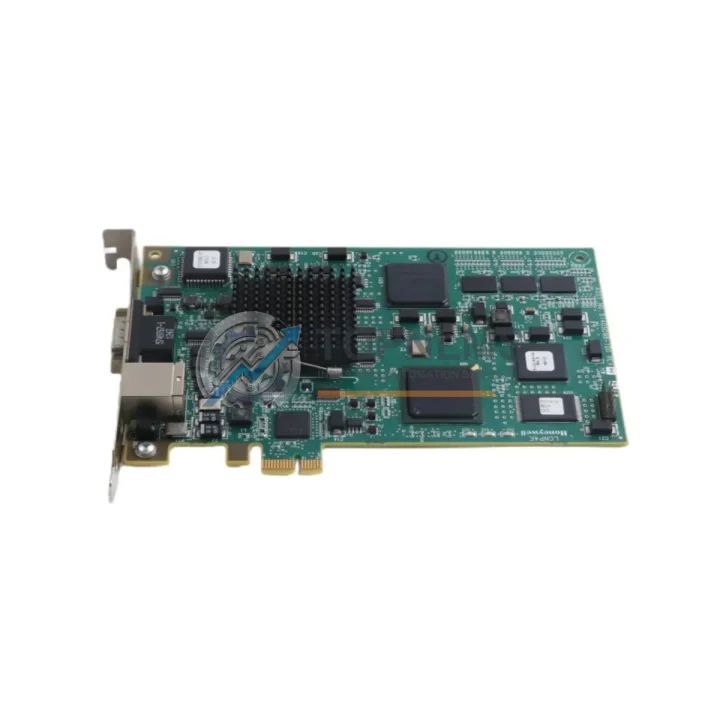

The Honeywell 51405098-100 LCNP4E LCN Processor Card is the primary processing node on the Local Control Network (LCN) within the TDC 3000 Distributed Control System (DCS) architecture. As Honeywell progressively phases out legacy TDC 3000 hardware, process plants, refineries, and chemical facilities face the urgent challenge of sourcing verified replacement units to maintain system continuity — without committing to a full platform migration. TOPNLMS maintains ready stock of the 51405098-100 to support exactly this need, enabling a smooth, low-risk transition that preserves your existing wiring infrastructure, control logic, and network topology.

The LCNP4E processor card slots directly into the standard LCN node chassis, maintaining full compatibility with the existing LCN coaxial cable plant and the peer-to-peer communication protocol that TDC 3000 relies upon. Unlike a full system replacement, swapping the 51405098-100 requires no changes to the Universal Control Network (UCN) gateway configuration, no re-engineering of the Application Module (AM) or History Module (HM) connections, and no modification to the existing HIWAY or UCN drop assignments. This makes it the preferred choice for maintenance engineers who need to restore a failed node quickly and return the plant to normal operation with minimal downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC 3000 node restoration or controlled migration involves more than the processor card alone. When replacing the 51405098-100 LCNP4E, maintenance teams typically address the surrounding hardware in the same maintenance window to avoid repeat shutdowns and reduce cumulative downtime risk.

The LCN Node Power Supply (51401584-150) should be inspected and replaced if it shows signs of capacitor aging, as a degraded power supply is a common root cause of LCNP4E failures. Similarly, the LCN Termination Assembly and coaxial tap connectors along the LCN trunk should be verified for signal integrity before the new processor card is brought online. Degraded coax terminations can cause intermittent node dropouts that are easily misdiagnosed as processor card faults.

For sites running a hybrid architecture where the TDC 3000 LCN coexists with a newer Experion PKS layer, the LCNP4E replacement is often paired with an updated LCN Interface Module (LCNI) to maintain the bridge between legacy and modern control tiers. The Application Module (AM) and the Global User Station (GUS) workstations connected to the LCN do not require reconfiguration when a like-for-like LCNP4E swap is performed, which significantly reduces the engineering hours required for the outage.

In parallel I/O-intensive nodes, the replacement of the LCNP4E is frequently accompanied by inspection of the associated Process Manager I/O Link (PMIO) modules and the High-Performance Process Manager (HPM) cards — specifically the 51404174-175 HPM Processor — that feed data into the LCN node. Ensuring that the HPM firmware version is compatible with the LCNP4E revision prevents communication handshake errors after restart. For sites that also operate Honeywell Safety Manager or FSC (Fail-Safe Controller) modules on the same network backbone, verifying the UCN drop address assignments before powering up the replacement card eliminates address conflict faults.

Control cabinet space is rarely a concern with this replacement, as the LCNP4E occupies the same single-slot footprint as all prior LCNP revisions. However, if the cabinet also houses a Honeywell Data Hiway Interface (DHI) or a Plant Network Interface (PNI) card, technicians should confirm that the backplane bus termination resistors are correctly seated, as vibration over years of operation can cause intermittent contact issues that surface only after a card swap. In some retrofit projects, a Honeywell 51196563-100 Universal I/O Module is added to the same cabinet to expand field I/O capacity during the upgrade window, taking advantage of the planned outage to modernize adjacent I/O infrastructure without a separate shutdown.

Retrofit Guidance FAQ

Q: Do I need to re-download the control database after installing the 51405098-100?
A: In most cases, no. The LCNP4E loads its operating software and node configuration from the LCN network via the standard LCN boot sequence. The node will request its image from the History Module (HM) or the designated boot server on the LCN automatically. Manual re-loading is only required if the HM itself has been replaced or if the node address has changed.

Q: Is the wiring to the LCN coaxial trunk affected?
A: No. The LCN coaxial cable connects to the node chassis backplane, not to the processor card directly. Replacing the LCNP4E does not require disconnecting or re-terminating the LCN trunk cable. Standard ESD precautions and a clean card extraction/insertion procedure are sufficient.

Q: Will the replacement card work with our existing TDC 3000 firmware version?
A: The 51405098-100 LCNP4E is compatible with the standard TDC 3000 LCN firmware releases. If your site is running a very early firmware baseline, TOPNLMS recommends confirming the firmware revision with your DCS support team before installation. In practice, the vast majority of active TDC 3000 sites are running firmware versions fully supported by the LCNP4E hardware revision.

Q: How long does installation take in a live plant environment?
A: A like-for-like LCNP4E swap in a planned maintenance window typically takes 30–90 minutes, including card extraction, installation, LCN boot sequence, and functional verification. No programming changes, no wiring modifications, and no UCN reconfiguration are required for a direct replacement.

Q: Can this card be used as a cold spare?
A: Yes. The 51405098-100 is suitable for use as a shelf spare. TOPNLMS recommends storing it in its original anti-static packaging in a climate-controlled environment. The card can be brought into service immediately when needed without any pre-conditioning.

Q: What communication protocols does the LCNP4E support?
A: The LCNP4E operates on the proprietary Honeywell LCN peer-to-peer protocol over coaxial cable at 5 Mbps. It does not natively support Ethernet or Modbus; those interfaces are handled by separate gateway modules within the TDC 3000 architecture.

Q: Is this compatible with Honeywell Experion PKS migration projects?
A: Yes, in a phased migration context. The 51405098-100 can stabilize an existing TDC 3000 LCN node while the broader Experion PKS migration is planned and executed in stages. This avoids a forced full-system cutover and allows engineering teams to migrate control strategies loop-by-loop without plant-wide risk.

Warranty Assurance

Every Honeywell 51405098-100 LCNP4E shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point inspection that includes visual examination for physical damage, connector pin integrity check, board-level inspection for corrosion or component damage, and functional verification where test equipment permits. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed fault. Our after-sales response target is within 24 hours of a warranty claim submission. We maintain buffer stock specifically to support rapid warranty replacements, minimizing the risk of extended downtime for our customers.

For procurement teams, TOPNLMS issues a formal invoice, packing list, and certificate of conformance with every shipment. Export documentation for international shipments is prepared in compliance with applicable trade regulations. Standard lead time from order confirmation to shipment is 1–3 business days for in-stock units. Express shipping options are available for emergency plant situations.

For purchasing inquiries, technical pre-sales questions, or warranty claims, contact our industrial automation team directly.
