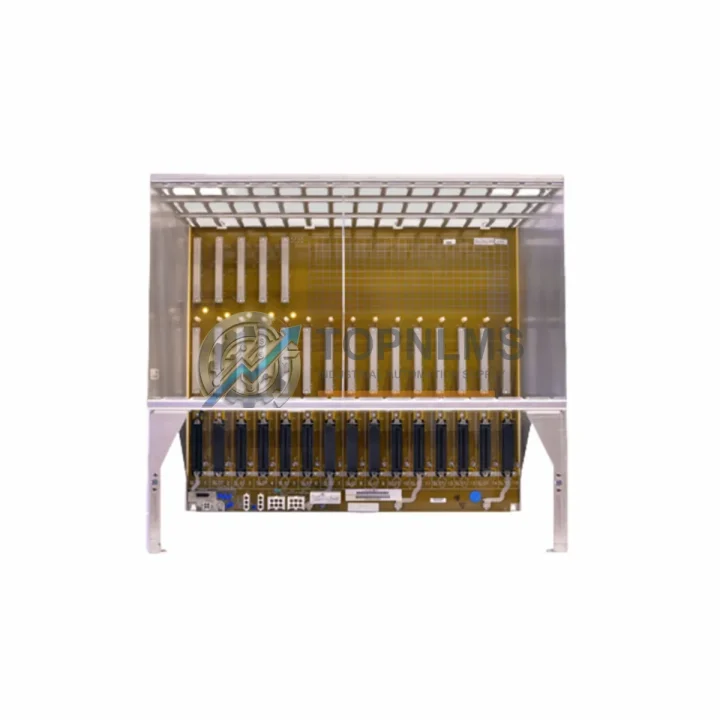

Honeywell 51404127-200 Replacement for Experion PKS TDC 3000: Seamless Migration & Upgrade Solution

Migrating away from a legacy Honeywell TDC 3000 or transitioning your plant to the Experion PKS platform is one of the most critical decisions an automation engineer will make. The Honeywell 51404127-200 DCS I/O Module is a proven, field-tested component that bridges the gap between aging distributed control infrastructure and modern process automation requirements. Whether you are replacing a failed card in an existing TDC 3000 rack or executing a phased migration to Experion PKS, this module delivers the electrical compatibility, signal integrity, and form-factor consistency your control system demands.

The 51404127-200 is designed to slot directly into standard Honeywell I/O termination assemblies without requiring rewiring of field instruments. Existing marshalling cabinets, terminal blocks, and cable harnesses remain intact, dramatically reducing the engineering hours and shutdown windows associated with a full I/O replacement. For plants running mixed-generation hardware — where some cabinets still carry TDC 3000 High-Performance Process Manager (HPPM) cards alongside newer Experion C300 controllers — this module provides the signal-level compatibility that keeps both environments operational during a staged cutover.

Field engineers frequently encounter the 51404127-200 in applications alongside the Honeywell 51304485-100 power supply module and the 51401642-150 I/O Link interface card. When replacing a degraded I/O card in a live rack, it is essential to verify that the associated 51196887-100 termination panel is free of corrosion and that the ribbon cable connecting the I/O card to the termination assembly is undamaged. A faulty termination panel is a common root cause of repeated I/O card failures and should be inspected before the replacement 51404127-200 is commissioned.

For sites executing a broader Experion PKS migration, the 51404127-200 is typically deployed in conjunction with the Honeywell CC-PAIX01 analog input module and the CC-PDOB01 digital output module within the EPKS C300 I/O subsystem. Communication between the field I/O and the C300 controller is handled over the FTE (Fault Tolerant Ethernet) backbone, and the 51404127-200 is fully compatible with this architecture when installed in the appropriate I/O chassis. Sites that previously relied on the Data Hiway or UCN (Universal Control Network) communication protocol for TDC 3000 process data will find that the Experion PKS migration path, anchored by modules like the 51404127-200, provides a structured route to FTE without requiring a complete field wiring overhaul.

Physical installation is straightforward. The module occupies a standard single-slot position in the Honeywell I/O chassis and is secured by the front-panel locking mechanism common to the TDC 3000 and early Experion PKS hardware generations. No special tools are required. LED status indicators on the faceplate provide immediate visual confirmation of power, communication, and channel-level fault status, enabling rapid fault isolation during commissioning or post-replacement verification. For sites that have upgraded their operator stations to Experion PKS R500 or later, the module’s diagnostic data is fully accessible through the Experion Station HMI, eliminating the need for a dedicated handheld calibrator during routine checks.

Power supply compatibility is a frequent concern during I/O module replacement. The 51404127-200 operates on the standard 24 VDC backplane power distributed by the Honeywell 51109684-100 power distribution module. If the existing power supply is a legacy TDC 3000 unit, verify that the output voltage is within the 21.6–26.4 VDC tolerance band before installing the replacement module. Undersized or aging power supplies are a leading cause of intermittent I/O faults and should be evaluated as part of any planned replacement activity.

For plants managing spare parts inventory across multiple process units, the 51404127-200 is a high-priority stocking item. Its cross-compatibility with both TDC 3000 and Experion PKS hardware generations means a single spare can cover failure scenarios across two control system generations, reducing the total number of unique part numbers that must be held in the maintenance store. TOPNLMS maintains ready stock of the 51404127-200 and ships globally from Xiamen, China, with typical lead times of 3–7 business days for standard orders. All units undergo pre-shipment functional testing and are supplied with a 12-month warranty covering manufacturing defects and operational failures under normal service conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from TDC 3000 to Experion PKS rarely involves a single module swap. The 51404127-200 is most effective when deployed as part of a coordinated upgrade that addresses the full signal chain. Engineers typically source the Honeywell 51304485-100 power distribution module to ensure stable backplane power across the replacement I/O rack. The 51401642-150 I/O Link interface card handles communication between the I/O subsystem and the process controller, and should be inspected or replaced concurrently to avoid introducing a new single point of failure. For analog signal loops, the CC-PAIX01 analog input module provides the channel density and resolution required by modern Experion PKS control strategies. Digital output requirements are addressed by the CC-PDOB01, which integrates directly into the same C300 I/O chassis. Where signal isolation is required — particularly on legacy 4–20 mA loops shared between the old TDC 3000 and the new Experion system during a parallel-run cutover — a DIN-rail mounted signal isolator (such as the Phoenix Contact MACX MCR series) provides the galvanic separation needed to protect both systems. Programming cable connectivity to the C300 controller is maintained via standard Ethernet, eliminating the proprietary programming cables required by older TDC 3000 hardware. For sites that also need to upgrade their operator interface, the Honeywell Experion PKS Station running on standard industrial PC hardware provides a direct migration path from the legacy TDC 3000 console, with configuration import tools that reduce re-engineering time significantly.

Retrofit Guidance FAQ

Q: Can I install the 51404127-200 without rewiring my field instruments?
A: Yes. The module is designed to mate with existing Honeywell termination assemblies. Field wiring connected to the termination panel does not need to be disturbed, provided the termination panel itself is in good condition.

Q: Is the 51404127-200 compatible with both TDC 3000 and Experion PKS controllers?
A: Yes. The module supports both UCN (for TDC 3000 HPPM environments) and FTE (for Experion PKS C300 environments), making it suitable for mixed-generation installations during a phased migration.

Q: Do I need to modify my control program when replacing a failed I/O card with the 51404127-200?
A: In a like-for-like replacement scenario, no program changes are required. The module retains the same channel addressing and signal type as the original card. If you are migrating from a different I/O card family, a configuration download to the controller may be required.

Q: What physical space does the module require?
A: The 51404127-200 occupies a single slot in the standard Honeywell I/O chassis. No additional mounting hardware or cabinet modifications are needed.

Q: How do I verify the module is functioning correctly after installation?
A: LED indicators on the module faceplate provide immediate status feedback. For Experion PKS installations, full diagnostic data is available through the Experion Station HMI. For TDC 3000 installations, use the Universal Station or Application Module diagnostic displays.

Q: What communication protocols does the 51404127-200 support?
A: The module supports Honeywell UCN and FTE protocols. It does not natively support PROFIBUS, HART, or Modbus without an appropriate gateway or interface module.

Warranty Assurance

Every Honeywell 51404127-200 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional pre-shipment test to verify power-up, communication link establishment, and channel-level signal integrity. Units that do not pass testing are quarantined and not shipped. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to confirmation that the failure is attributable to a manufacturing defect or component failure under normal operating conditions. Physical damage, incorrect installation, or operation outside the specified voltage and temperature range are excluded from warranty coverage. Our after-sales team responds to warranty inquiries within 1 business day. For urgent plant situations, expedited replacement shipping is available on request. Purchasing through TOPNLMS gives your procurement and maintenance teams the confidence of a documented supply chain, traceable unit records, and a responsive technical support contact for installation and commissioning questions.
