Honeywell 51403988-150 51306701-175 Upgrade for TDC 3000

Product Overview

Honeywell 51403988-150 / 51306701-175 Upgrade for TDC 3000: Seamless Migration from Legacy UCN Process Control Systems

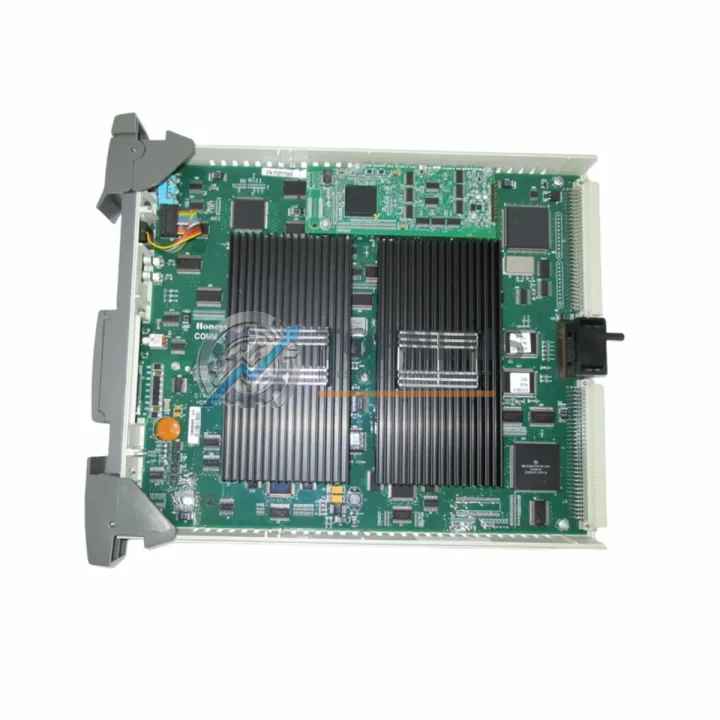

The Honeywell 51403988-150 / 51306701-175 is a UCN (Universal Control Network) Process Controller Card designed for the TDC 3000 Distributed Control System platform — one of the most widely deployed DCS architectures in continuous process industries including oil refining, petrochemical, power generation, and pulp and paper manufacturing. As the TDC 3000 platform ages and original components reach end-of-life, sourcing a verified, tested replacement for this controller card becomes a critical procurement priority for plant engineers and maintenance teams worldwide.

At TOPNLMS, we maintain ready inventory of the 51403988-150 / 51306701-175 to support emergency replacements and planned upgrade projects. Every unit undergoes pre-shipment functional testing and ships with a 12-month warranty, giving your procurement and engineering teams the confidence to proceed without extended lead times or unplanned downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions: Integrated Migration for TDC 3000 Systems

Replacing the 51403988-150 / 51306701-175 controller card is rarely an isolated action — it typically occurs within a broader context of TDC 3000 system maintenance, partial modernization, or phased migration. Understanding the surrounding architecture helps ensure a smooth transition with minimal disruption to ongoing production.

The TDC 3000 UCN network relies on a coaxial bus topology connecting multiple Process Manager (PM) and Advanced Process Manager (APM) nodes. When replacing this controller card, engineers should verify the health of the associated UCN Interface Module and the Network Interface Card (NIC) within the same chassis, as these components share communication responsibilities across the control loop. A degraded NIC can mask the true source of a controller fault and lead to repeat failures after card replacement.

On the I/O side, the TDC 3000 architecture uses dedicated Field Termination Assemblies (FTAs) and I/O Link Interface Modules to connect field instruments — thermocouples, RTDs, pressure transmitters, and control valves — to the controller. These termination panels typically remain in service during a controller card swap, but their wiring integrity and signal conditioning should be verified as part of the commissioning checklist. Honeywell’s 51304485-100 and related FTA models are commonly found in the same cabinets as this controller card.

For sites running a hybrid architecture that includes both TDC 3000 and newer Experion PKS nodes, the 51401288-100 Server Communication Module and associated C200 Controller components may already be present in adjacent cabinets. In these environments, the 51403988-150 / 51306701-175 replacement supports continued operation of legacy loops while the migration to Experion proceeds in phases — a common strategy in refineries and chemical plants where a full cutover is operationally impractical.

Power distribution within the TDC 3000 cabinet is managed by dedicated Power Supply Modules — typically the 51109684-175 or equivalent — which feed the card cage backplane. Before inserting a replacement controller card, confirming stable backplane voltage (typically +5 VDC and ±15 VDC rails) eliminates a common source of post-replacement instability. If the power supply module shows signs of aging — capacitor bulge, output ripple, or thermal discoloration — it should be replaced concurrently to protect the new controller card.

For sites that use Honeywell’s Data Hiway (HW) or Local Control Network (LCN) alongside the UCN, the Highway Gateway Module (HGM) and LCN Interface Card serve as the bridge between control layers. These modules are unaffected by a UCN controller card swap but should be included in the post-replacement system health check to confirm that historian data, alarm routing, and operator display updates are functioning correctly across all network layers.

Finally, for sites planning a longer-term migration away from TDC 3000 entirely, the Honeywell Experion HS platform and its associated EHPM (Experion Hybrid Process Manager) offer a documented migration path that preserves existing field wiring and FTAs while introducing modern control capabilities. TOPNLMS can supply both legacy TDC 3000 spares and Experion migration components to support phased transition projects.

Retrofit Guidance FAQ

Q1: Can the 51403988-150 / 51306701-175 be installed without modifying existing field wiring?
Yes. This card is a direct replacement for the same slot position in the TDC 3000 card cage. Existing field wiring connected to the Field Termination Assemblies (FTAs) does not need to be disturbed. The termination panels remain in place, and the new card connects to the backplane in the same manner as the original. Post-installation, a loop check and I/O verification are recommended before returning the loop to automatic control.

Q2: Will existing CL (Control Language) programs and tuning parameters be retained after the swap?
Control Language programs and loop tuning parameters reside in the TDC 3000 system database, not on the individual controller card. After installing the replacement card, the system will download the existing configuration from the database automatically during initialization. No manual reprogramming is required, though engineers should confirm the download completes without errors and verify critical loop parameters before releasing to production.

Q3: Is this card compatible with both coaxial UCN and fiber-optic UCN variants of TDC 3000?
The 51403988-150 / 51306701-175 is designed for the standard coaxial UCN bus. Sites that have upgraded their UCN infrastructure to fiber-optic media converters should verify compatibility with their specific UCN media configuration before installation. TOPNLMS technical support can assist with compatibility verification based on your system’s UCN revision level and installed media type.

Q4: What is the lead time, and how is the card protected during shipping?
In-stock units ship within 1–3 business days from our Xiamen warehouse. Each card is packed in anti-static ESD shielding bags, placed in foam-lined protective packaging, and shipped via DHL, FedEx, or UPS Express with full tracking. Export documentation including commercial invoice, packing list, and certificate of origin is provided for international customs clearance. The 12-month warranty period begins from the date of receipt.

Warranty Assurance

Every Honeywell 51403988-150 / 51306701-175 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment testing protocol includes power-on functional verification, communication interface checks, and visual inspection for component integrity. Units that do not pass testing are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours for warranty inquiries. We maintain ongoing inventory of TDC 3000 spare parts to support both emergency replacements and long-term maintenance contracts, ensuring your plant has a reliable supply chain for critical DCS components.

For volume procurement, site-wide spare parts audits, or migration project support, contact our industrial automation team directly.
