Honeywell 51403645-100 Experion PKS Original Industrial Spare DCS Compatible: System Stability and Industrial Spare Maintenance Value

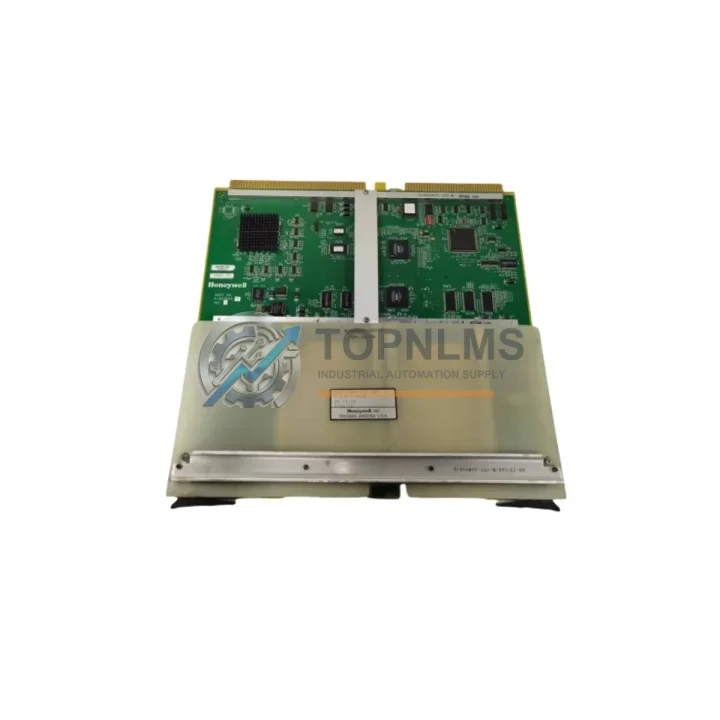

The Honeywell 51403645-100 (cross-reference: 51403698-100) is an original DCS controller module designed for the Experion PKS (Process Knowledge System) platform — one of the most widely deployed distributed control systems in refining, petrochemical, power generation, and advanced manufacturing environments. When a controller module fails or degrades, the consequences extend far beyond a single loop: entire process units can trip, safety interlocks may activate, and unplanned downtime can cost tens of thousands of dollars per hour. Stocking a verified original replacement module is the single most effective insurance policy against that scenario.

This module has been sourced, inspected, and tested to confirm full functional integrity before shipment. Each unit ships with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to integrate it directly into live or standby control cabinets without extended qualification delays.

Critical Technical Specs Table

Preventive Maintenance Strategy

A controller module failure rarely occurs in isolation. In an Experion PKS control cabinet, the controller module operates in close interdependence with power supply modules, I/O modules, communication modules, and the physical backplane. A disciplined preventive maintenance program should treat the 51403645-100 as part of a broader inspection and spare-parts strategy.

During scheduled shutdowns or annual turnarounds, maintenance teams should simultaneously inspect the Honeywell 51401288-100 Power Supply Module that feeds the controller chassis — a degraded power supply is one of the leading causes of intermittent controller faults that are often misdiagnosed as controller module failures. Alongside the power supply, the Honeywell 51304516-100 FIM (Fieldbus Interface Module) and associated 51202329-100 FOUNDATION Fieldbus communication modules should be checked for firmware currency and connector integrity, as communication faults can cascade into controller alarms.

On the I/O side, the Honeywell 51304441-100 AI (Analog Input) modules and 51304453-100 AO (Analog Output) modules connected to the same controller node should be inspected for channel drift, terminal block corrosion, and wiring integrity. Loose or oxidized connections on Honeywell 51196694-100 terminal assemblies are a common source of spurious process alarms that increase controller load and accelerate module wear.

For facilities running redundant controller configurations, it is equally important to verify that the standby controller module — whether a 51403645-100 or its paired redundancy partner — is synchronized and ready for automatic switchover. Redundancy modules that have not been tested in 12–18 months may fail to assume control during a primary module fault, negating the entire investment in redundant architecture. Scheduling a controlled switchover test during each planned outage is a best practice that costs minutes but can prevent hours of unplanned downtime.

Cabinet-level hygiene should not be overlooked: Honeywell 51109684-100 fuse modules and associated fuse carriers should be inspected and replaced on a defined cycle, and signal isolator modules on high-noise circuits should be tested for isolation integrity. Where HMI workstations interface with the Experion PKS server, verifying the health of the Experion PKS server node and associated network switches ensures that controller module performance is not masked by upstream communication bottlenecks.

Stocking one spare 51403645-100 per controller node — or at minimum one per plant site — is the industry-standard recommendation for facilities where process continuity is critical. Combined with spares for the power supply, key I/O modules, and communication modules, a well-structured spare-parts inventory can reduce mean time to repair (MTTR) from days to hours.

Strategic Replacement Solutions

The 51403645-100 is a direct OEM replacement for the 51403698-100, which appears in older Experion PKS bill-of-materials documentation and may be listed as the primary part number in legacy maintenance records. Both part numbers refer to functionally equivalent modules; the 51403645-100 is the current active part number and is the recommended procurement target for new spare-parts orders.

For facilities that have been operating Experion PKS systems for more than a decade, the controller module may be approaching end-of-useful-life based on operating hours and thermal cycling history rather than visible failure. Proactive replacement — scheduling a module swap during a planned outage before failure occurs — eliminates the risk of an emergency replacement under time pressure, when sourcing lead times and installation errors are most likely to extend downtime.

Unlike third-party or refurbished alternatives, an original Honeywell 51403645-100 maintains full compatibility with Experion PKS configuration tools, including Control Builder and the Experion PKS server software, without requiring firmware workarounds or compatibility patches. This preserves the integrity of the existing control strategy, alarm configuration, and historian data paths — critical considerations for facilities operating under IEC 61511 functional safety requirements or ISO 55000 asset management frameworks.

For sites managing multiple Experion PKS nodes, a phased replacement program — replacing the oldest controller modules first based on installation date records — is more cost-effective than reactive replacement and allows procurement to be planned across budget cycles rather than charged as emergency capital expenditure.

Support FAQ

Q1: Is the 51403645-100 a direct drop-in replacement for the 51403698-100 without any reconfiguration?
Yes. The 51403645-100 and 51403698-100 are functionally equivalent modules. In most Experion PKS configurations, the replacement module will be recognized automatically by the controller chassis and Experion PKS server upon insertion. However, it is always recommended to verify firmware version compatibility with your site’s Experion PKS server version before installation, and to perform a controlled switchover test in redundant configurations.

Q2: What pre-shipment testing is performed on each unit?
Each 51403645-100 unit undergoes functional verification testing prior to shipment, including power-on self-test confirmation and communication interface checks. Units that do not pass testing are not shipped. A 12-month warranty covers any defects in materials or workmanship from the date of shipment.

Q3: How should this module be stored if purchased as a long-term spare?
Store in original anti-static packaging in a climate-controlled environment: temperature 15°C–25°C, relative humidity below 60% non-condensing, away from direct sunlight and electromagnetic interference sources. Inspect the module annually and rotate stock on a first-in, first-out basis. Avoid storing near solvents, flux residues, or corrosive materials.

Q4: What is the recommended procurement quantity for a multi-node Experion PKS plant?
Industry best practice for critical DCS controller modules is a minimum of one spare per controller node for high-criticality process units, and one spare per two to three nodes for lower-criticality applications. For plants with more than five Experion PKS controller nodes, a site-level spare of two to three units is typically justified based on MTTR reduction value versus carrying cost. Contact our team for volume pricing on multi-unit orders.
