Honeywell 51402615-400 Ruggedized LCN Backplane for Harsh Environments

Product Overview

Honeywell 51402615-400 Ruggedized LCN Backplane Board: Industrial Resilience for Harsh Environments

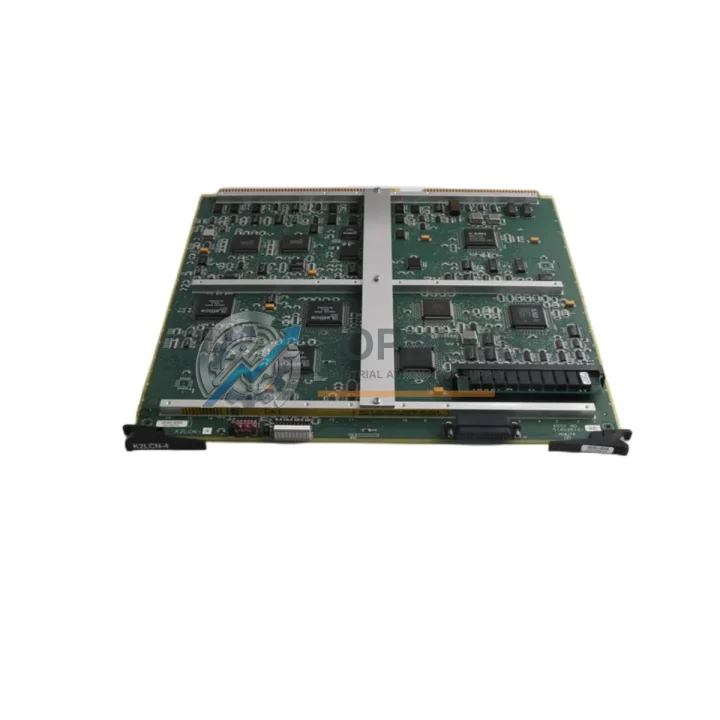

The Honeywell 51402615-400 is a ruggedized LCN (Local Control Network) Backplane Board engineered for the TDC 3000 and TPS (Total Plant Solution) Distributed Control System chassis. Designed to operate continuously in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, high-vibration heavy machinery floors, and zones with intense electromagnetic interference — this passive bus interconnect board forms the structural and electrical backbone of the TDC 3000 / TPS control cabinet.

As a passive bus interconnect, the 51402615-400 provides the critical backplane architecture that allows Honeywell TDC 3000 and TPS modules — including the Honeywell 51304485-100 LCN Interface Module, 51401288-100 Network Interface Module (NIM), 51304516-100 Application Module (AM), and 51304362-100 History Module (HM) — to communicate reliably across the LCN bus. Its passive design eliminates active failure points, making it inherently more resilient in continuous-production environments where unplanned downtime carries severe operational and safety consequences.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated TDC 3000 or TPS control architecture, the 51402615-400 LCN Backplane Board does not operate in isolation — it anchors an ecosystem of interdependent control, communication, and power components. When planning a spare parts strategy or system restoration, procurement teams typically source the backplane alongside the Honeywell 51304485-100 LCN Interface Module and the 51401288-100 Network Interface Module (NIM), which handle LCN-to-UCN bridging and plant-wide data routing respectively.

Power integrity is equally critical. The backplane relies on stable DC bus voltage delivered by Honeywell TPS-compatible power supply modules such as the 51401584-100 or equivalent TPS chassis power units. Voltage fluctuations or power supply degradation in harsh environments — common in smelting facilities or offshore platforms — can cause intermittent backplane faults that are often misdiagnosed as module failures. Replacing or verifying the power supply in parallel with the backplane is standard practice.

On the I/O side, the backplane supports the full range of TDC 3000 process I/O modules, including analog input cards, digital output cards, and Honeywell 51304516-100 Application Modules (AM) that execute control strategies. In high-vibration environments such as compressor stations or rolling mills, securing module seating on the backplane connectors is a critical maintenance step — loose module connections on a degraded backplane are a leading cause of spurious process trips.

For facilities running hybrid architectures, the 51402615-400 backplane is often deployed alongside Honeywell UCN (Universal Control Network) nodes, 51304362-100 History Modules, and Gateway Interface Modules that bridge legacy TDC 3000 systems to modern Experion PKS or third-party SCADA platforms. This interoperability makes the 51402615-400 a long-term strategic spare even in partially modernized plants.

Safety-critical installations — particularly those governed by IEC 61511 (functional safety for process industries) — may also pair this backplane with dedicated Honeywell Safety Manager modules or fail-safe I/O cards to maintain SIL-rated loop integrity. In such configurations, backplane reliability is not merely an operational concern but a safety compliance requirement.

Application in Critical Infrastructure

The Honeywell 51402615-400 has a proven deployment history across the most demanding sectors of critical infrastructure:

Oil & Gas Upstream & Midstream: On offshore platforms and onshore gas processing facilities, TDC 3000 systems equipped with the 51402615-400 backplane manage wellhead control, separator automation, and compressor surge protection. The passive backplane’s resistance to salt-air corrosion and vibration from rotating machinery makes it a preferred spare in these environments.

Petrochemical & Refining: In continuous catalytic cracking units (FCC), distillation columns, and hydrocracker control rooms, the TPS chassis with this backplane runs 24/7 for years without scheduled downtime. A failed backplane in such a facility can trigger a full unit shutdown — making verified spare inventory a non-negotiable operational requirement.

Power Generation: Coal-fired, gas turbine, and combined-cycle power plants rely on TDC 3000 / TPS systems for boiler management, turbine control, and balance-of-plant automation. The 51402615-400 backplane supports the high-density I/O and communication modules required for these complex multi-loop control strategies.

Mining & Metallurgy: In copper smelters, aluminum reduction plants, and iron ore processing facilities, extreme dust, heat, and vibration challenge every component in the control cabinet. The passive design of the 51402615-400 eliminates active component degradation, making it one of the most durable elements in the TDC 3000 chassis under these conditions.

Water & Wastewater Treatment: Municipal and industrial water treatment plants operating TDC 3000 systems for chemical dosing, filtration control, and pump station automation benefit from the backplane’s long service life and straightforward replacement procedure — minimizing the specialized labor required for system restoration.
