Honeywell 51402592-175 Ruggedized Backplane Module for Harsh Environments

Product Overview

Honeywell 51402592-175 Ruggedized Backplane Module for Harsh Environments

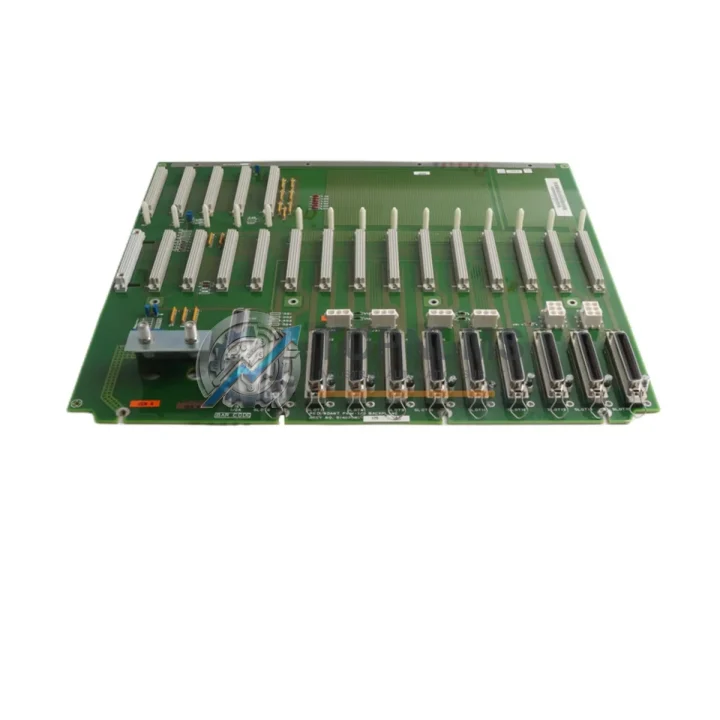

The Honeywell 51402592-175 is a heavy-duty DCS backplane module engineered for continuous, uninterrupted operation in the most demanding industrial environments. Designed as a core interconnect component within the Honeywell TDC 3000 and TPS (Total Plant Solution) distributed control system architecture, this backplane provides the structural and electrical backbone that links I/O modules, controller cards, power supply units, and communication interfaces into a unified, fault-tolerant control platform.

Built to Honeywell’s stringent industrial reliability standards, the 51402592-175 backplane delivers consistent signal integrity and mechanical stability across environments characterized by high ambient temperatures, elevated humidity, airborne particulates, continuous vibration, and electromagnetic interference — conditions routinely encountered in oil and gas processing, petrochemical refining, power generation, water treatment, metallurgical operations, and heavy manufacturing facilities.

In critical infrastructure settings where unplanned downtime carries severe operational and safety consequences, the 51402592-175 serves as a proven, field-replaceable spare that restores system continuity without requiring full cabinet reconfiguration. Its passive backplane design eliminates active failure points, ensuring that connected modules — including the Honeywell HPM (High-Performance Process Manager), UCN (Universal Control Network) interface cards, and AM (Application Module) assemblies — maintain stable communication and power distribution even under sustained load.

Rugged Specifications Table

Comprehensive Protection Solutions

The 51402592-175 backplane does not operate in isolation — it is the central interconnect layer that enables an entire ecosystem of Honeywell TDC 3000 and TPS control components to function as a cohesive, protected system. When integrated with the Honeywell HPM High-Performance Process Manager, the backplane ensures low-latency, noise-immune data exchange between the process controller and field I/O assemblies. Paired with Honeywell UCN (Universal Control Network) interface modules, it supports deterministic, high-speed network communication across distributed plant segments, maintaining loop integrity even when individual network segments experience transient faults.

In power distribution, the backplane interfaces directly with Honeywell TDC 3000 power supply modules, distributing regulated DC power to all installed cards while isolating sensitive logic circuits from line-side transients. For plants running redundant control architectures, the 51402592-175 supports side-by-side installation of redundant controller pairs — such as dual AM (Application Module) assemblies — enabling bumpless transfer during controller failover without interrupting process control loops.

Beyond the core controller layer, the backplane provides stable mounting and signal routing for Honeywell FTA (Field Termination Assembly) interface cards, analog and digital I/O modules, and safety-rated input channels used in burner management, emergency shutdown, and high-integrity pressure protection systems. In facilities where Honeywell Safety Manager or FSC (Fail-Safe Controller) modules are deployed alongside TDC 3000 infrastructure, the 51402592-175 backplane ensures that the physical separation and signal isolation requirements of IEC 61511 functional safety architectures are maintained at the cabinet level.

For communication-intensive installations, the backplane accommodates Honeywell Data Hiway and LCN (Local Control Network) gateway cards, enabling seamless integration between legacy TDC 3000 control nodes and modern Experion PKS supervisory layers. Terminal block assemblies and marshalling panels connected downstream of the backplane benefit from its stable ground reference plane, reducing common-mode noise pickup in long cable runs through electrically noisy plant environments.

Application in Critical Infrastructure

In upstream and midstream oil and gas operations, the Honeywell 51402592-175 backplane is a foundational spare component for compressor control panels, wellhead automation cabinets, and pipeline SCADA integration racks. Offshore platforms and onshore gas processing terminals operating in Class I, Division 2 (or Zone 2) classified areas rely on TDC 3000 and TPS systems — and by extension, on the structural integrity of this backplane — to maintain continuous process monitoring and emergency shutdown readiness around the clock.

In coal-fired and combined-cycle power generation plants, the backplane supports turbine governor control, boiler combustion management, and balance-of-plant automation within Honeywell TPS cabinets that must sustain operation through high-vibration, high-temperature machine room environments. Planned maintenance windows are narrow, and the availability of a pre-tested, ready-to-install 51402592-175 backplane dramatically reduces mean time to repair (MTTR) when a cabinet-level fault is diagnosed.

Water and wastewater treatment authorities operating large-scale pumping stations and chemical dosing systems depend on TDC 3000 infrastructure for continuous, unattended process control. In these facilities, the backplane’s passive design and long service life make it an ideal long-term spare, protecting against obsolescence risk as Honeywell’s TDC 3000 platform transitions toward end-of-life support timelines. Metallurgical and mining operations — including smelters, concentrators, and ore processing lines — subject control cabinets to extreme dust loading, corrosive atmospheres, and ground-loop interference; the 51402592-175’s robust mechanical construction and shielded signal paths make it well-suited to these conditions.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Honeywell 51402592-175?
Every 51402592-175 backplane module shipped by TOPNLMS is covered by a 12-month quality warranty from the date of delivery. If the unit develops a verified defect under normal operating conditions within the warranty period, we will arrange replacement or repair at no additional cost. Our warranty terms are documented and provided with each shipment.

Q2: How is the module tested before shipment?
Each 51402592-175 unit undergoes a multi-point inspection and functional verification process prior to dispatch. This includes visual inspection for physical damage, connector integrity checks, and electrical continuity testing across all backplane signal and power rails. Units that do not pass our outgoing quality control criteria are quarantined and not shipped. A test report summary is available upon request for critical procurement orders.

Q3: Is this backplane compatible with all TDC 3000 and TPS cabinet configurations?
The 51402592-175 is designed for use within Honeywell’s TDC 3000 and TPS system families and is compatible with standard HPM, AM, and UCN-based cabinet assemblies that accept this backplane form factor. Compatibility with specific cabinet revisions or custom-engineered enclosures should be confirmed against your site’s as-built documentation. Our technical team can assist with cross-referencing your cabinet configuration prior to order confirmation.

Q4: Can TOPNLMS support long-term or repeat supply of this part?
Yes. TOPNLMS maintains ongoing sourcing relationships for Honeywell TDC 3000 and TPS spare parts, including the 51402592-175 backplane. We support both single-unit emergency procurement and scheduled bulk orders for planned maintenance programs. Customers with multi-site operations or annual maintenance contracts are encouraged to contact us to discuss preferred supplier arrangements and reserved stock agreements.
