Honeywell 51402573-150 Replacement for TPS HPM Series: Smooth Migration & Legacy System Upgrade

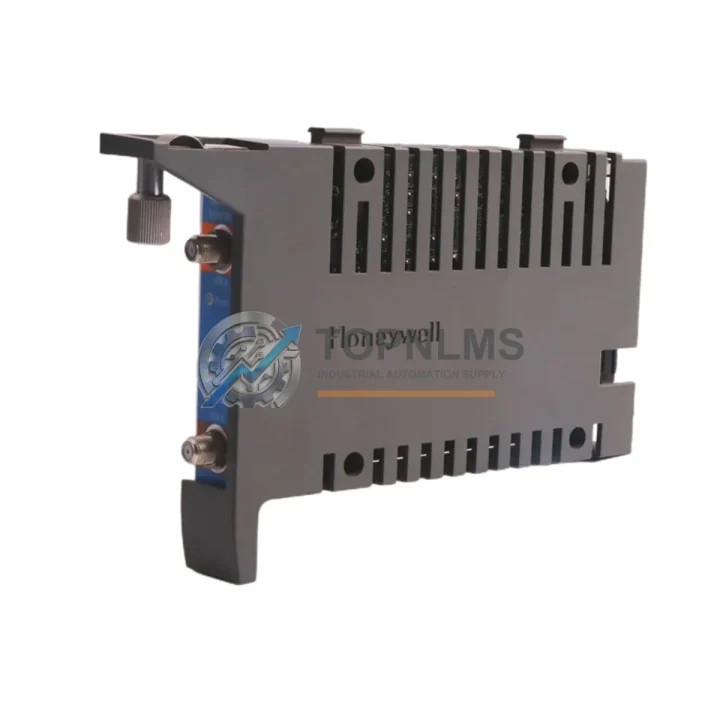

The Honeywell 51402573-150 is a UCN (Universal Control Network) Interface Module designed for the High-Performance Manager (HPM) within the TotalPlant Solution (TPS) distributed control system platform. As Honeywell progressively phases out legacy TPS hardware, many facilities running continuous process operations — refineries, chemical plants, power generation units, and pulp & paper mills — face the critical challenge of sourcing reliable, tested replacement modules without triggering a full DCS migration. The 51402573-150 addresses this need directly: it is a drop-in compatible replacement that preserves your existing UCN topology, wiring infrastructure, and HPM cabinet layout while restoring full system redundancy and communication integrity.

Upgrading or replacing a UCN Interface Module in a live TPS environment requires careful attention to several compatibility dimensions. The 51402573-150 interfaces with the HPM processor card set via the module’s internal backplane connector, maintaining the same slot assignment and rack addressing as the original unit. No re-engineering of the UCN coaxial cable plant is required — the module supports the same 5 Mbit/s UCN token-passing protocol used across the TPS platform, ensuring seamless communication with the Application Module (AM), History Module (HM), and Global User Station (GUS) nodes already present on your network.

From a wiring and I/O perspective, field terminations connected to the HPM’s associated I/O Link modules — including the 51304485-100 FTA (Field Termination Assembly) and related analog and digital I/O carriers — remain completely undisturbed during a 51402573-150 swap. The module replacement is confined to the HPM card cage, and no changes to marshalling cabinets, junction boxes, or field instrument loops are necessary. This dramatically reduces the risk window and allows the replacement to be executed during a planned short outage or, in redundant HPM configurations, as a hot-swap procedure.

For sites operating redundant HPM pairs, the 51402573-150 supports the standard TPS redundancy switchover mechanism. When installed as the secondary UCN interface in a redundant HPM chassis, the module synchronizes state with the primary unit via the HPM’s internal redundancy bus. Switchover testing can be performed using the standard Honeywell Station Manager diagnostic utilities without requiring any modification to the control strategy loaded in the HPM’s 51401288-100 or 51401288-200 processor modules.

Power supply compatibility is another key consideration. The 51402573-150 draws regulated +5 VDC and ±15 VDC from the HPM card cage’s internal power distribution bus, supplied by the cabinet’s 51109684-100 or equivalent power supply module. No external power wiring to the UCN interface card is required. If your HPM cabinet power supply is also aging, it is advisable to inspect and potentially replace the power supply module concurrently to avoid a secondary failure shortly after the UCN interface is restored.

Communication protocol compatibility extends beyond the UCN layer. The TPS platform uses a layered architecture where the UCN connects HPM controllers to the LCN (Local Control Network) via the 51401493-100 Network Interface Module (NIM). The 51402573-150 replacement does not affect LCN addressing, NIM configuration, or the Hiway Gateway (HG) connections that may bridge older Data Hiway (DH) segments still present in brownfield installations. This makes the 51402573-150 an ideal solution for phased modernization projects where the LCN backbone and upper-level historian or MES integrations are retained while HPM hardware is refreshed.

For facilities planning a broader migration from TPS to Experion PKS, the 51402573-150 can serve as a bridge solution — maintaining HPM availability while the Experion C300 controllers and EHPM (Experion High-Performance Manager) migration is planned and staged. This avoids forced emergency migrations driven by hardware failure and gives engineering teams the time to properly validate control strategy conversion, alarm rationalization, and operator display migration on the new platform.

Each 51402573-150 unit supplied by TOPNLMS undergoes a multi-point functional inspection covering UCN transceiver integrity, backplane connector condition, firmware revision verification, and power rail continuity. Units are shipped in anti-static packaging with full documentation. Typical lead time from order confirmation to dispatch is 1–3 business days, with DHL Express and FedEx International Priority options available for urgent requirements.
