Honeywell 51402089-100 EPDG2 Replacement for TDC 3000 – Seamless Migration & Upgrade Solution

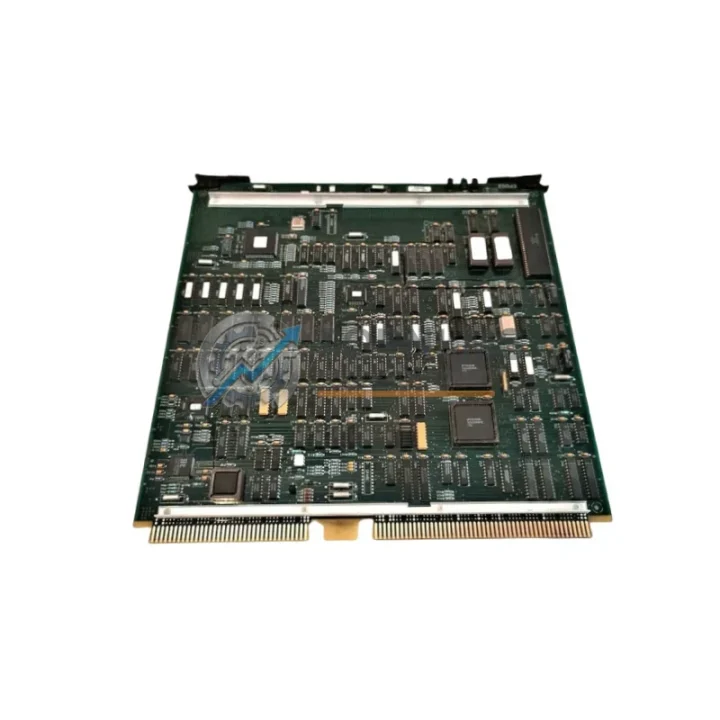

The Honeywell 51402089-100 EPDG2 Gateway Card is a critical communication interface within the TDC 3000 Distributed Control System (DCS) architecture. As this module approaches end-of-life and becomes increasingly difficult to source through OEM channels, many process plants, refineries, and chemical facilities are facing urgent decisions: repair, replace, or migrate. TOPNLMS specializes in providing verified replacement units and migration-ready alternatives that allow your control system to continue operating with minimal disruption to production.

Whether your facility is running a legacy TDC 3000 platform with aging EPDG2 gateway cards, or you are planning a phased migration toward a modern Experion PKS or PlantScape system, the 51402089-100 serves as a direct drop-in replacement that preserves your existing wiring infrastructure, communication topology, and rack mounting configuration. Our engineering team has verified compatibility across multiple TDC 3000 cabinet generations, including both the Universal Control Network (UCN) and Local Control Network (LCN) segments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC 3000 gateway card replacement rarely involves a single module in isolation. In practice, the EPDG2 gateway operates as part of a tightly integrated control architecture. During migration or emergency replacement projects, engineers typically need to assess and potentially replace several adjacent components to ensure system stability.

When replacing the 51402089-100, it is common to simultaneously evaluate the condition of the Honeywell 51401642-100 UCN Interface Module, which handles the upstream network handshake between the gateway and the Universal Control Network. If the UCN interface is degraded, replacing the EPDG2 alone may not fully restore communication integrity. Similarly, the Honeywell 51304485-100 LCN Interface Card should be inspected, as LCN segment faults are frequently misdiagnosed as gateway failures.

For facilities undertaking a broader TDC 3000 to Experion PKS migration, the EPDG2 replacement is often paired with the installation of a Honeywell C300 Controller in a parallel rack, allowing engineers to run both systems simultaneously during the cutover period. The Honeywell 51309276-175 Power Supply Module is another component that should be verified during any cabinet-level intervention — aging power supplies are a leading cause of intermittent gateway faults that are incorrectly attributed to the EPDG2 card itself.

On the I/O side, plants running analog field devices through the TDC 3000 will want to confirm the integrity of their Honeywell 51304754-150 Analog Input Module and associated 51196893-100 Field Termination Assembly (FTA). These components interface directly with the gateway’s data path and must be in good condition to validate a successful replacement. For digital I/O loops, the Honeywell 51309218-175 Digital Input Module is a commonly stocked companion part.

Communication-intensive installations may also require a review of the Honeywell 51401566-100 Highway Gateway Module (HG), particularly in plants where the TDC 3000 is bridged to a newer DeltaV or third-party SCADA system via Modbus or OPC. Finally, for sites that have already begun transitioning operator workstations, the Honeywell Experion Station (ES) software licensing and associated 51190494-200 Operator Interface Module should be part of the migration scope discussion.

Retrofit Guidance FAQ

Q: Can I replace the 51402089-100 without reprogramming the TDC 3000 database?
A: Yes. The EPDG2 is a hardware-level gateway card. Replacing it with an identical 51402089-100 unit does not require changes to the TDC 3000 application database, provided the replacement card is correctly seated and the UCN/LCN addresses are preserved. A cold restart of the affected node is typically sufficient to restore full communication.

Q: Is rewiring required when installing this replacement card?
A: No rewiring is required. The 51402089-100 uses the same backplane connector and field termination interface as the original unit. Simply remove the failed card, insert the replacement, and restore power. All existing field wiring remains connected through the FTA.

Q: What communication protocols does the EPDG2 support?
A: The EPDG2 operates on Honeywell’s proprietary UCN (Universal Control Network) and LCN (Local Control Network) protocols. It is not a Modbus or PROFIBUS device. If your migration plan requires protocol conversion to a modern open standard, a separate gateway device such as a Honeywell Highway Gateway or a third-party protocol converter will be needed in addition to this card.

Q: Will this card fit in my existing TDC 3000 card cage without modification?
A: Yes. The 51402089-100 is designed to the standard TDC 3000 card form factor and slots directly into the existing card cage without any mechanical modification. No additional mounting hardware or adapter brackets are required.

Q: How do I verify the replacement was successful after installation?
A: After installation, use the TDC 3000 System Status Display to confirm the gateway node returns to an active, fault-free state. Check UCN traffic indicators and verify that all downstream I/O modules and controllers are communicating normally. TOPNLMS can provide pre-shipment test reports upon request to confirm the card was bench-tested prior to dispatch.

Q: What if my TDC 3000 system is being decommissioned and I need a migration path?
A: TOPNLMS can supply both the 51402089-100 as a short-term stabilization part and advise on compatible Experion PKS migration hardware. Maintaining a working TDC 3000 system during a phased migration is a common strategy to reduce risk and avoid full production shutdowns.

Warranty Assurance

Every Honeywell 51402089-100 EPDG2 Gateway Card shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point inspection process that includes visual inspection for physical damage, connector integrity verification, board-level continuity checks, and functional bench testing where applicable. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical team at [email protected] with your order number and a description of the fault. We will arrange a replacement dispatch or issue a refund based on your preference and the nature of the defect. Our average response time for warranty inquiries is within one business day.

We maintain stock of the 51402089-100 and related TDC 3000 components in our Xiamen warehouse, enabling fast dispatch to customers across Asia, the Middle East, Europe, and the Americas. Standard shipping lead times are 3–7 business days for international orders, with expedited options available for emergency plant shutdowns.
