Honeywell 51401583-200 Replacement for TDC 3000 TPS

Product Overview

Honeywell 51401583-200 Replacement for TDC 3000 / TPS DCS — Seamless Migration & Compatibility Upgrade

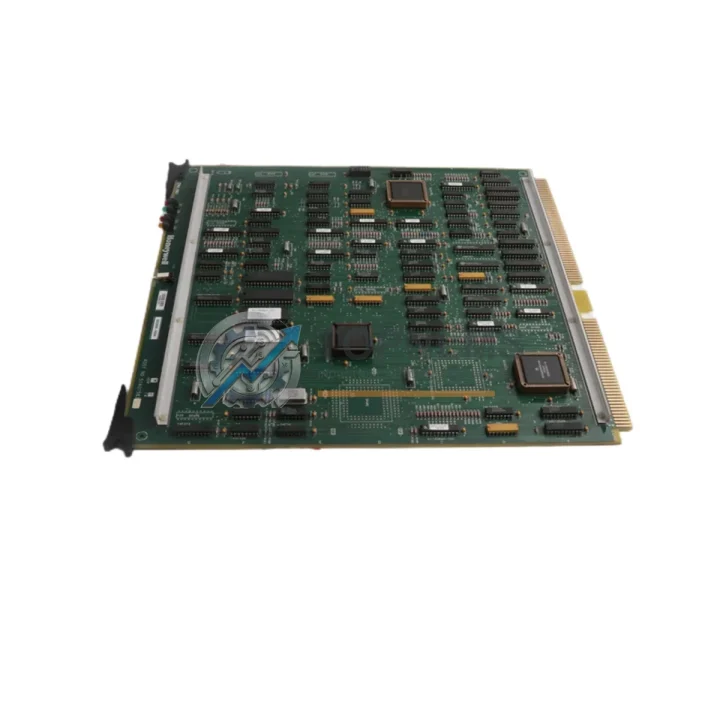

The Honeywell 51401583-200 is a Network Interface Card (NIC) designed for the TDC 3000 and TPS (Total Plant Solution) Distributed Control System platforms. As Honeywell progressively phases out legacy TDC 3000 hardware, many facilities operating on Universal Control Network (UCN), Local Control Network (LCN), and Plant Network (PN) architectures are facing urgent replacement and upgrade decisions. TOPNLMS maintains verified stock of the 51401583-200 to support your migration with minimal disruption to ongoing production.

This module serves as the primary communication bridge between the TDC 3000 / TPS control nodes and the plant-wide data highway. It handles high-speed data exchange across the Local Control Network (LCN), enabling coordinated operation between the Universal Station (US), Application Module (AM), History Module (HM), and field-level I/O subsystems. Replacing a failed or end-of-life NIC with a verified 51401583-200 restores full network visibility without requiring re-engineering of the existing LCN topology.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC 3000 / TPS migration rarely involves a single card swap. In practice, engineers replacing the 51401583-200 NIC are simultaneously evaluating adjacent components to ensure the entire control node remains stable and supportable. During commissioning, the Honeywell 51401576-100 Power Entry Module is commonly inspected alongside the NIC, as aging power distribution within the card cage can cause intermittent NIC faults that are misdiagnosed as card failures.

For sites migrating from older UCN-based field devices, the Honeywell 51304485-100 UCN Interface Module is frequently replaced in the same maintenance window to eliminate the risk of a second unplanned outage. Similarly, the Honeywell 51401544-150 Application Module and 51401519-100 History Module are often refreshed together with the NIC when a facility is executing a planned LCN node rebuild rather than a reactive emergency repair.

On the I/O side, plants running Honeywell Smart Transmitter Interface Modules (STIM) and 51304453-100 Analog Input Modules connected through the High-Performance Process Manager (HPM) should verify that the HPM’s own NIC and backplane connections are intact before assuming the 51401583-200 is the sole fault source. Replacing the NIC without auditing the HPM’s 51401754-100 FTA (Field Termination Assembly) wiring can result in persistent communication alarms post-replacement.

For facilities transitioning toward Experion PKS or a hybrid TPS/Experion architecture, the Honeywell CC-PAIX01 Analog Input Module and CC-PDOB01 Digital Output Module from the C300 controller family are commonly specified alongside legacy TDC spares to support phased migration — allowing the old LCN backbone to remain operational while new Experion nodes are commissioned in parallel. In these scenarios, the 51401583-200 NIC continues to serve the legacy segment, buying engineering teams the time needed to validate new control logic before full cutover.

Procurement teams should also account for LCN coaxial cable assemblies, LCN terminators, and Honeywell-compatible programming cables when ordering the NIC, as these consumables are frequently overlooked until on-site installation begins — causing avoidable delays.

Retrofit Guidance FAQ

Q: Can I replace the 51401583-200 without shutting down the entire LCN?
A: In most TDC 3000 / TPS installations, the NIC can be replaced using Honeywell’s standard LCN node isolation procedure, which removes the target node from the network without interrupting other nodes. Full plant shutdown is not required, but the affected control node must be placed in manual or backup control mode during the swap.

Q: Will my existing LCN node address and configuration be retained?
A: The node address is stored in the system database on the Universal Station, not on the NIC card itself. After installing the replacement 51401583-200, the node address is re-assigned via the US console during the LCN load procedure. No hardware DIP switch changes are required on this module.

Q: Is the 51401583-200 compatible with both TDC 3000 and TPS architectures?
A: Yes. The 51401583-200 NIC is designed for the shared LCN backplane used across both TDC 3000 and TPS platforms. No firmware modification is required when moving between these two system generations.

Q: What communication protocol does this NIC use, and is it compatible with Modbus or PROFIBUS field devices?
A: The 51401583-200 operates on Honeywell’s proprietary LCN protocol. It does not directly interface with Modbus or PROFIBUS field devices — those protocols are handled at the HPM or UCN gateway level. This NIC manages node-to-node communication on the LCN data highway only.

Q: How much physical space does the replacement card require?
A: The 51401583-200 occupies a single standard TDC 3000 card slot. No additional chassis space, mounting brackets, or external wiring changes are required. The backplane connector is identical to the original, ensuring a direct mechanical fit.

Q: What should I check before declaring the NIC faulty?
A: Before replacing the NIC, verify LCN coaxial cable integrity, terminator resistance (should read ~75 Ω at each end), and chassis power supply voltages. A failing power entry module or a damaged LCN coax segment can produce symptoms identical to a failed NIC.

Warranty Assurance

Every Honeywell 51401583-200 unit shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on testing and visual inspection for component integrity, connector condition, and board-level damage. Units that do not pass inspection are not listed for sale.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement dispatch or issue a credit note based on your preference. Our after-sales response target is within 24 hours of a warranty claim submission. We support customers across Asia-Pacific, the Middle East, Europe, and the Americas with DHL Express and FedEx International Priority shipping options.

For time-critical plant emergencies, expedited shipping with same-day dispatch (for orders confirmed before 14:00 CST) is available upon request. Contact our technical sales team to confirm stock availability and lead time before placing your order.

Stock is maintained in Xiamen, China, with export documentation (commercial invoice, packing list, and certificate of origin) prepared as standard for all international shipments. HS code classification and customs value declaration are handled in accordance with applicable trade regulations.
