Honeywell 51401546-100 Replacement for TDC 3000 TPS DCS

Product Overview

Honeywell 51401546-100 Replacement for TDC 3000 TPS DCS: Seamless Transition & Compatible Upgrade

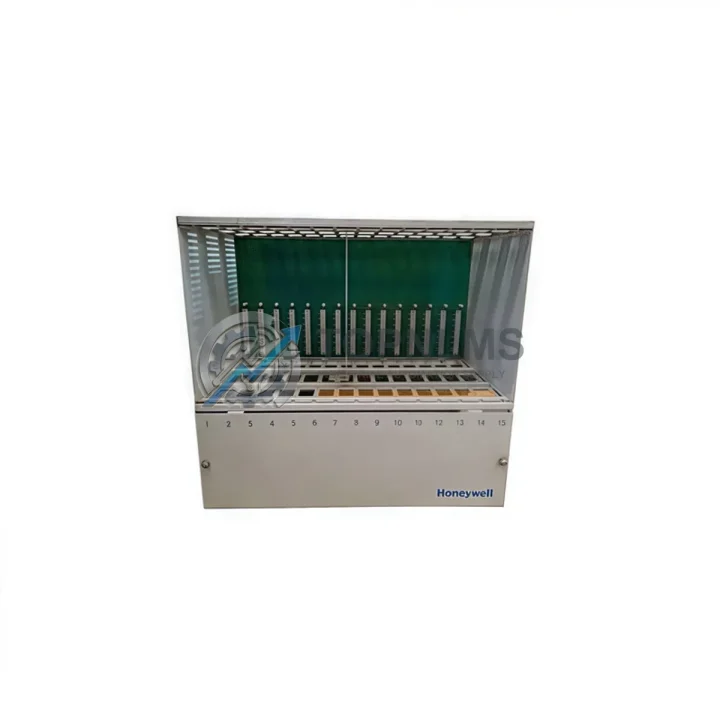

The Honeywell 51401546-100 I/O File Chassis Rack is a critical structural and electrical backbone component within the TDC 3000 and TPS (Total Plant Solution) Distributed Control System architecture. As Honeywell progressively phases out legacy TDC 3000 hardware, many facilities operating continuous process industries — including refining, petrochemical, power generation, and pulp & paper — face the urgent challenge of sourcing verified replacement chassis racks to maintain system integrity without triggering a full platform migration.

At TOPNLMS, we supply the 51401546-100 as a direct replacement unit, fully compatible with the original TDC 3000 I/O File assembly. Whether your existing chassis has suffered mechanical damage, backplane connector wear, or power rail degradation, this replacement rack restores your I/O file to operational status with no firmware changes, no re-engineering of the I/O module population, and no disruption to your existing wiring infrastructure.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 51401546-100 chassis rack is rarely an isolated action. In most TDC 3000 and TPS retrofit projects, the chassis swap is part of a broader I/O file restoration or system consolidation effort. During the replacement process, engineers typically audit the full I/O file population, which may include Honeywell 51304485-100 analog input cards, 51304516-100 digital output modules, and 51401544-100 or 51401545-100 I/O file power supply units — all of which must be carefully extracted, inspected, and re-seated into the new chassis.

For sites running the High-Performance Process Manager (HPM), the chassis replacement often coincides with a review of the HPM controller card population and the associated 51401561-100 I/O Link Interface Module, which manages communication between the I/O file and the UCN highway. Ensuring the I/O Link interface is firmly seated and the UCN termination resistors are intact is a standard commissioning step after any chassis swap.

In TPS environments where the Local Control Network (LCN) is still active, the 51401546-100 replacement may also prompt inspection of the 51401196-100 LCN Interface Module and associated coaxial cable terminations within the control cabinet. Cabinet space planning is straightforward since the replacement chassis maintains the identical 19-inch rack footprint, allowing all existing DIN rail terminal blocks, cable trays, and marshalling wiring to remain undisturbed.

For facilities simultaneously upgrading their operator interface layer, the chassis replacement project is a natural checkpoint to evaluate migration from legacy Universal Stations to Experion PKS C300 controllers or Experion HS nodes, though the 51401546-100 itself remains fully compatible with the existing TDC 3000 architecture without requiring any platform upgrade. Sites that choose to retain the TDC 3000 platform can continue operating their existing 51198947-100 Application Module and 51401170-100 History Module alongside the new chassis without any software reconfiguration.

Retrofit Guidance FAQ

Q: Do I need to reconfigure my I/O modules after installing the replacement chassis?
A: No. The 51401546-100 is a passive chassis component. All I/O module configuration, channel assignments, and calibration data reside in the modules themselves and in the HPM controller database — not in the chassis. After re-seating your existing I/O cards into the replacement rack, the system will recognize them without any database changes.

Q: Is the wiring harness from my existing I/O file compatible with the replacement chassis?
A: Yes. The replacement chassis uses the identical backplane connector layout and field wiring termination points as the original 51401546-100. Your existing marshalling cables, field termination assemblies, and I/O cable harnesses connect without modification.

Q: Will the replacement chassis affect UCN or LCN communication?
A: No. The chassis rack is a passive structural and power distribution component. UCN and LCN communication is managed by the I/O Link Interface Module and the HPM controller cards, which remain in place during the chassis swap. Communication continuity is maintained as long as the I/O Link module is properly re-seated.

Q: How much downtime should I plan for the chassis replacement?
A: For an experienced TDC 3000 maintenance team, a single I/O file chassis swap typically requires 2–4 hours of planned downtime, including module extraction, chassis replacement, module re-insertion, power-up verification, and I/O channel functional testing. TOPNLMS recommends scheduling the replacement during a planned maintenance window and having a spare set of I/O module extractor tools on hand.

Q: Can I use this chassis in a different slot position within the same cabinet?
A: Yes. The 51401546-100 chassis is not position-dependent within the TDC 3000 cabinet. It can be installed in any available I/O file slot position, provided the power supply connections and UCN/LCN cabling reach the new position.

Warranty Assurance

Every Honeywell 51401546-100 I/O File Chassis Rack shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point outgoing inspection that includes visual examination of the backplane connectors, power rail continuity verification, slot guide integrity check, and chassis frame dimensional verification against OEM specifications.

In the event of a warranty claim, TOPNLMS provides a direct replacement unit or full refund, with a target response time of 1–2 business days from claim submission. Our after-sales team is reachable via email at [email protected] or by phone at +86 18359293191 during business hours (GMT+8).

For procurement teams requiring documentation, we can provide an inspection report, packing list, and commercial invoice with each shipment. Express shipping via DHL, FedEx, or UPS is available for urgent replacement requirements, with typical transit times of 3–7 business days to most global destinations.

Stock is maintained in Xiamen, China, and orders confirmed before 14:00 CST are typically dispatched the same business day. For large-quantity orders or standing purchase agreements, please contact our sales team directly to discuss lead times and pricing.
