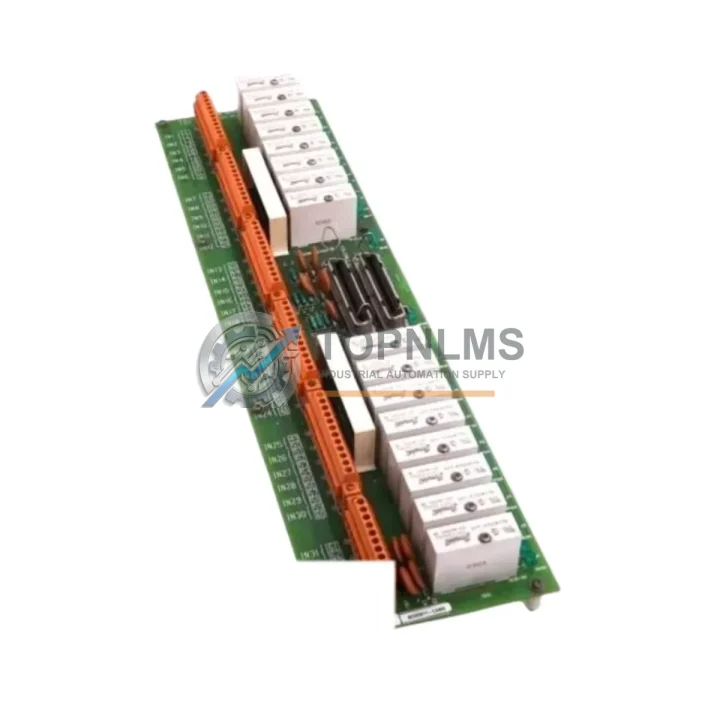

Honeywell 51401140-250 TDC 3000 Analog Input Replacement

Product Overview

Honeywell 51401140-250 TDC 3000 Analog Input Replacement: Seamless Migration & Compatibility Upgrade

The Honeywell 51401140-250 is a proven Analog Input Module within the TDC 3000 Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in refining, petrochemical, and power generation facilities worldwide. As Honeywell progressively phases out legacy TDC 3000 hardware, many plants operating on the TDC 3000 UCN (Universal Control Network) or LCN (Local Control Network) backbone face an urgent need to source verified replacement modules that maintain full backward compatibility without triggering a full system migration.

TOPNLMS supplies the 51401140-250 as a direct drop-in replacement, sourced from verified industrial channels, fully tested prior to shipment, and backed by a 12-month warranty. Our inventory is held in Xiamen, China, enabling rapid dispatch to customers across Asia-Pacific, the Middle East, and Europe.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 51401140-250 replacement rarely occurs in isolation. In most TDC 3000 retrofit projects, engineers simultaneously address adjacent components to ensure system-wide stability. During the module swap, it is common to inspect and replace the associated Field Termination Assembly (FTA) — typically a Honeywell 51304485-100 or 51304485-150 — which connects field wiring to the AIM via a ribbon cable. A degraded FTA can introduce signal noise that masks the root cause of process anomalies, so replacing both simultaneously is best practice.

On the network side, the 51401140-250 communicates over the UCN using the Honeywell UCN Coax Cable and associated UCN Tap assemblies. If the plant is also upgrading its UCN infrastructure, the 51401840-100 UCN Interface Module is a common companion replacement that ensures the network segment remains stable after the AIM swap.

For facilities running a hybrid architecture — where TDC 3000 coexists with a newer Experion PKS system — the C300 Controller and its associated IOTA (I/O Termination Assembly) boards are frequently part of the same modernization scope. The 51309276-175 and 51309276-225 IOTA variants are often sourced alongside the 51401140-250 to support phased migration without full cutover.

Power integrity is critical in any DCS card cage. The 51401544-150 Power Supply Module for TDC 3000 is a frequently requested companion part, particularly in aging installations where the original PSU has accumulated thousands of operating hours. Replacing the power module during the same maintenance window eliminates a second unplanned outage.

Where the plant control room also manages Programmable Logic Controllers in hybrid configurations — for example, Allen-Bradley ControlLogix or CompactLogix PLCs interfacing with the DCS via OPC-DA or Modbus TCP gateways — the communication bridge hardware may also require attention. ProSoft Technology MVI56E-MCM Modbus communication modules and similar gateway cards are commonly sourced in the same procurement cycle to maintain protocol continuity across the control hierarchy.

Finally, for engineers performing loop checks and commissioning after the module replacement, a HART communicator (such as the Emerson 475 Field Communicator) and a calibrated 4–20 mA signal generator are essential bench tools. While not sold by TOPNLMS, we recommend confirming their availability on-site before scheduling the maintenance window.

Retrofit Guidance FAQ

Q: Can I replace the 51401140-250 without shutting down the entire TDC 3000 system?
A: In most configurations, the TDC 3000 supports hot-swap of AIM modules, provided the UCN segment is properly isolated and the replacement module is pre-configured with the correct UCN address. Always consult your site’s MOC (Management of Change) procedure before performing a live swap.

Q: Will my existing field wiring and FTA harness connect directly to the replacement module?
A: Yes. The 51401140-250 uses the same ribbon-cable FTA interface as earlier revisions. No rewiring of field terminations is required. Verify the FTA part number matches your existing installation before ordering.

Q: Does the replacement module require re-programming or re-configuration in the TDC 3000 database?
A: If the replacement module is the same revision and UCN address, the existing TDC 3000 database (CL/AM/HPM configuration) should recognize it automatically after power-up. A full database download is only required if the UCN node address or module type has changed.

Q: What communication protocol does the 51401140-250 use, and is it compatible with Experion PKS?
A: The module communicates natively over Honeywell’s proprietary UCN protocol. It is not directly compatible with Experion PKS SCADA without a UCN-to-Experion gateway (such as the Honeywell UCN Gateway or a third-party OPC bridge). For full Experion integration, a phased migration to C300 I/O is recommended.

Q: How do I verify the module is functioning correctly after installation?
A: After insertion, use the TDC 3000 Engineering Console to confirm the module appears on the UCN segment with the correct node address and status. Perform a loop check on each AI channel using a calibrated 4–20 mA source. Compare live readings against the historian to confirm signal integrity before returning the loop to automatic control.

Q: What if the physical card cage slot is damaged or the backplane connector is corroded?
A: A damaged backplane connector will prevent reliable communication regardless of module condition. In this case, the card cage itself — or the specific slot’s backplane PCB — may require replacement. Contact TOPNLMS for availability of TDC 3000 card cage assemblies and backplane repair services.

Warranty Assurance

Every Honeywell 51401140-250 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment testing protocol includes:

• Visual inspection for physical damage, corrosion, and component integrity
• Power-on functional test to verify module initialization and self-diagnostics
• Signal channel verification across the full 4–20 mA input range
• Communication bus response check (where test bench infrastructure permits)
• Anti-static packaging and shock-resistant carton for international freight

If a module fails within the warranty period due to a manufacturing or component defect, TOPNLMS will provide a free replacement unit or a full refund, subject to return inspection. Our average response time for warranty claims is under 48 hours. Expedited replacement shipments are available for critical process applications.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. Letter of Conformance and Certificate of Origin (China) are available upon request.
