Honeywell 51401052-100 Original Industrial Spare TDC 3000 Compatible

Product Overview

Honeywell 51401052-100 Original Industrial Spare TDC 3000 Compatible: System Stability and Industrial Spare Parts Maintenance Value

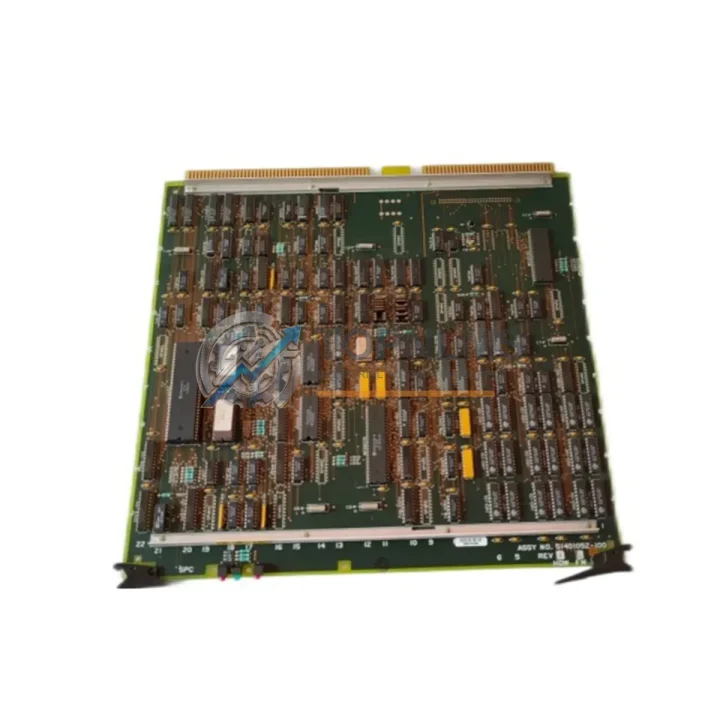

The Honeywell 51401052-100 Smart Peripheral Controller (SPC) Card is a critical original spare component within the Honeywell TDC 3000 Distributed Control System architecture. Designed for continuous process industries including refining, petrochemical, power generation, and large-scale manufacturing, this card serves as the communication and control bridge between the Universal Control Network (UCN) and field-level I/O subsystems. Maintaining a verified stock of the 51401052-100 is a cornerstone of any responsible preventive maintenance program for facilities running legacy TDC 3000 infrastructure.

As TDC 3000 systems age, the availability of original, tested spare cards becomes increasingly scarce. Unplanned downtime caused by a failed SPC card can halt an entire process unit, resulting in significant production losses and costly emergency procurement. Sourcing the 51401052-100 in advance — as part of a structured spare parts inventory strategy — eliminates this risk and ensures your maintenance team can execute rapid, confident replacements during scheduled turnarounds or emergency shutdowns.

Critical Technical Specs

Preventive Maintenance Strategy

A failed 51401052-100 SPC Card rarely occurs in isolation. In a TDC 3000 control cabinet, the SPC card works in close coordination with multiple subsystem components, and a thorough maintenance inspection should address the entire communication and power chain simultaneously.

When scheduling a cabinet inspection or replacing the 51401052-100, maintenance engineers should concurrently verify the condition of the Honeywell 51401356-100 UCN Interface Card, which manages the upstream network connection. Power integrity is equally critical — the Honeywell 51109684-100 Power Supply Module should be load-tested and replaced if it shows any signs of voltage ripple or thermal stress, as power instability is a leading cause of premature SPC card failure.

On the I/O side, inspect the associated Honeywell 51304485-100 Analog Input Module and 51304516-100 Analog Output Module for calibration drift or channel faults. These modules communicate directly through the SPC card, and degraded I/O performance is often misdiagnosed as a controller fault when the root cause lies in aging I/O hardware. Similarly, the 51401195-100 Digital Input Module and 51401196-100 Digital Output Module should be included in the inspection checklist for any cabinet undergoing SPC card replacement.

Terminal blocks and field wiring connections are frequently overlooked during DCS maintenance. Loose or corroded terminal connections on the Honeywell 51196655-100 Termination Assembly can introduce signal noise that stresses the SPC card’s communication buffers. Replacing aged termination assemblies during the same maintenance window avoids repeat interventions. For facilities with redundant UCN architectures, the 51401053-100 SPC Card (redundant pair) should be stocked alongside the primary 51401052-100 to support hot-standby configurations.

Finally, for sites running extended TDC 3000 systems with HMI integration, verifying the firmware and communication health of the Honeywell 51401584-100 LCN Interface Module ensures that the control network remains stable end-to-end after any card replacement. A structured spare parts kit covering these components — maintained in a climate-controlled storage environment — is the most cost-effective insurance against unplanned process shutdowns.

Strategic Replacement Solutions

The Honeywell TDC 3000 platform, while no longer in active production, remains operational in hundreds of process facilities worldwide. Honeywell’s official end-of-life support for many TDC 3000 components has created a critical dependency on the secondary market for original spare parts. The 51401052-100 SPC Card is among the most frequently requested components in this category, as it is a single point of failure for entire UCN segments.

Sourcing an original 51401052-100 from a verified supplier eliminates the compatibility risks associated with counterfeit or refurbished-without-testing alternatives. Each unit we supply undergoes functional verification prior to shipment, ensuring it meets the original Honeywell performance specification. This approach allows maintenance teams to execute like-for-like replacements without requiring system reconfiguration, firmware updates, or re-engineering — preserving the existing control logic, loop tuning, and operator interface configurations that your team has refined over years of operation.

For facilities planning a phased migration away from TDC 3000, maintaining a buffer stock of 51401052-100 cards provides the operational continuity needed to execute migration projects on schedule rather than under emergency conditions. A recommended minimum stock level of two units per UCN segment — with one installed and one on the shelf — is consistent with best practices for critical process control infrastructure.

All units are shipped with full inspection documentation, and our 12-month warranty covers functional defects identified under normal operating conditions. Expedited shipping options are available for urgent maintenance requirements.

Support FAQ

Q1: What is the expected service life of the Honeywell 51401052-100 SPC Card, and when should I plan for replacement?
The 51401052-100 is a mature component designed for continuous industrial operation. In well-maintained cabinets with stable power and controlled ambient temperature, service life typically exceeds 15 years. However, proactive replacement is recommended when UCN communication error logs show increasing fault frequency, when the card has been in service for more than 10 years in high-vibration or high-temperature environments, or as part of a scheduled major turnaround. Do not wait for a hard failure in a production-critical application.

Q2: How do I verify compatibility before installation?
The 51401052-100 is compatible with TDC 3000 systems utilizing the Universal Control Network (UCN) architecture, including High-Performance Manager (HPM), Application Module (APM), and Logic Control Module (LCM) configurations. Verify your system’s UCN revision level and rack slot assignment against the Honeywell TDC 3000 SPC installation manual (document PM12-200) before installation. If you require compatibility verification support, contact us with your system configuration details prior to ordering.

Q3: What pre-shipment testing is performed on each unit?
Every 51401052-100 unit is functionally tested prior to shipment to verify communication interface integrity, power rail stability, and board-level component condition. Units that do not pass inspection are not listed for sale. A test report summary is available upon request. All units are shipped in anti-static packaging with physical protection appropriate for international freight.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers functional defects that manifest under normal operating conditions consistent with the Honeywell TDC 3000 installation specification. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the specified environmental parameters. To initiate a warranty claim, contact us at [email protected] with your order reference, a description of the fault symptom, and any available system error logs. We will respond within one business day with return authorization and resolution options.
