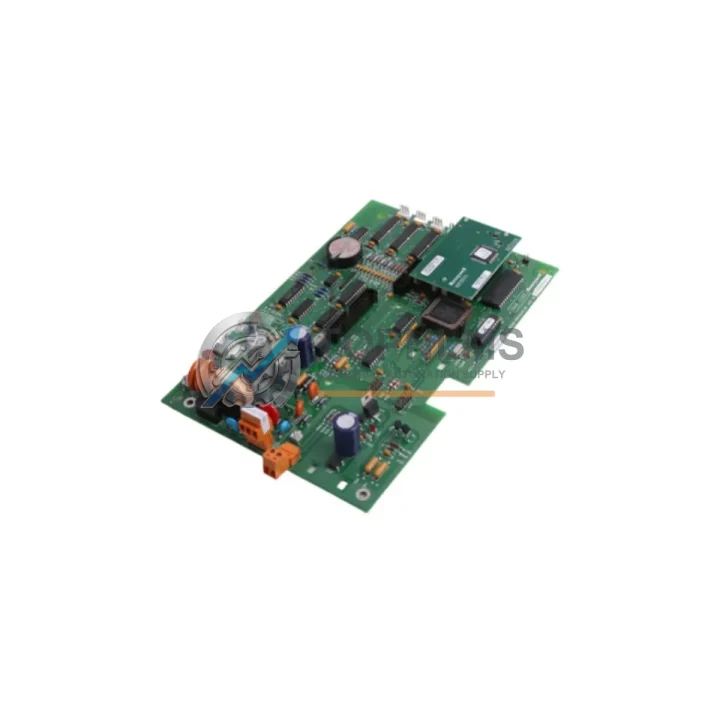

Honeywell 51309355-501 Replacement for TDC 3000: Seamless Transition & Legacy System Compatibility

The Honeywell 51309355-501 is a critical control board within the TDC 3000 Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in refining, petrochemical, power generation, and continuous manufacturing facilities worldwide. As Honeywell has progressively phased out TDC 3000 hardware in favor of the Experion PKS platform, sourcing a verified replacement for the 51309355-501 has become increasingly difficult through standard distribution channels.

TOPNLMS maintains a dedicated inventory of legacy Honeywell TDC 3000 modules, including the 51309355-501, specifically to support facilities that require a drop-in replacement without committing to a full DCS migration. Whether your plant is managing an emergency breakdown, executing a planned turnaround, or building a strategic spare-parts buffer, this module ships ready for installation with full functional verification completed prior to dispatch.

The 51309355-501 control board interfaces directly with the TDC 3000 Universal Control Network (UCN) and Local Control Network (LCN) architecture. It is designed to slot into the standard TDC 3000 card cage without modification to existing backplane wiring, terminal block assignments, or I/O marshalling panels. Engineers familiar with the TDC 3000 environment will find the physical installation straightforward: the board uses the standard card-edge connector format common across the TDC 3000 family, and no firmware re-flashing is required when replacing a like-for-like unit in the same rack position.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC 3000 control board replacement rarely involves a single module in isolation. In practice, the 51309355-501 operates as part of a tightly integrated system where adjacent components must also be verified or replaced to ensure stable operation after the swap.

During the replacement process, engineers commonly inspect and — where necessary — simultaneously replace the Honeywell 51401469-100 Power Supply Module, which provides regulated DC power to the card cage. A degraded power supply is frequently the root cause of control board failures, and replacing the 51309355-501 without addressing power quality risks repeat failures within a short operational window.

The Honeywell 51304485-100 LCN Interface Module is another component that warrants attention during this retrofit. The LCN interface governs communication between the control board and the plant-wide Local Control Network; any degradation in this module can cause intermittent communication faults that are difficult to distinguish from control board failures during initial diagnostics.

For facilities running multiple TDC 3000 nodes, the Honeywell 51401584-100 UCN Tap Module should be inspected as part of the same maintenance window. UCN tap integrity directly affects the reliability of the Universal Control Network segment, and a failing tap can cause cascading communication errors across multiple controllers sharing the same UCN segment.

Where the 51309355-501 interfaces with field I/O, the associated Honeywell 51304516-100 I/O Link Interface Module and the corresponding 51309276-100 Field Termination Assembly (FTA) should be verified for continuity and correct termination. Wiring at the FTA level does not change during a control board swap, but terminal block condition and shield grounding should be confirmed before returning the loop to service.

In control rooms where the TDC 3000 system communicates with operator workstations via the Honeywell 51401196-100 History Module or the 51401584-200 Application Module, these upstream components should be confirmed operational before and after the board replacement to ensure that historian data continuity and alarm management functions are not disrupted during the changeover.

For plants considering a phased migration toward the Experion PKS platform, the 51309355-501 replacement can serve as a bridge solution while the broader migration is planned. In this scenario, the Honeywell CC-PCNT01 C300 Controller and associated Experion Series I/O modules represent the eventual upgrade path, but the TDC 3000 infrastructure can continue operating reliably with verified replacement boards in the interim — avoiding the cost and risk of a forced, unplanned migration.

TOPNLMS maintains stock of the above-referenced modules and can supply them individually or as part of a coordinated spare-parts package. Contact our technical team to discuss multi-module procurement and compatibility verification for your specific TDC 3000 configuration.

Retrofit Guidance FAQ

Q: Does replacing the 51309355-501 require any changes to field wiring?
A: No. The 51309355-501 connects to the field via the TDC 3000 backplane and I/O link architecture. Field wiring terminates at the Field Termination Assembly (FTA), which remains undisturbed during a control board swap. No rewiring at the terminal block or marshalling cabinet level is required.

Q: Will the replacement board require re-programming or database download?
A: In a like-for-like replacement scenario, the control strategy database resides on the TDC 3000 History Module and Application Module, not on the control board itself. After physical installation, the board will load its configuration from the network. No manual re-programming of the board is required, though a database download confirmation via the Engineering Workstation is recommended as a post-installation verification step.

Q: Is the replacement board compatible with both UCN and LCN network segments?
A: Yes. The 51309355-501 is designed for the TDC 3000 network architecture and supports both UCN and LCN communication protocols as implemented in the original Honeywell design. No network reconfiguration is required.

Q: What are the physical installation space requirements?
A: The 51309355-501 occupies a standard single-slot position in the TDC 3000 card cage. No additional rack space is required. The replacement module has the same form factor as the original, ensuring compatibility with existing card cage configurations regardless of how densely the rack is populated.

Q: Can this board be installed while the system is running (hot-swap)?
A: The TDC 3000 platform supports redundant controller configurations in some architectures. Whether a hot-swap is possible depends on your specific system configuration and redundancy setup. TOPNLMS recommends consulting your TDC 3000 system documentation and coordinating with your DCS engineer before attempting any live insertion. For non-redundant configurations, a planned shutdown window is the safest approach.

Q: What pre-installation testing does TOPNLMS perform?
A: Each 51309355-501 unit undergoes functional verification on a TDC 3000-compatible test bench prior to shipment. This includes power-on self-test confirmation, communication interface verification, and visual inspection for component condition. A test report is available upon request.

Warranty Assurance

Every Honeywell 51309355-501 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional failure under normal operating conditions and includes replacement or repair at TOPNLMS’s discretion. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling after delivery.

Prior to shipment, each unit is subject to a documented pre-shipment inspection process. Units that do not pass functional verification are quarantined and not offered for sale. This process ensures that every module leaving our facility has been confirmed operational in a TDC 3000-compatible test environment.

In the event of a warranty claim, TOPNLMS provides a streamlined RMA process. Customers are asked to contact our technical team at [email protected] with the order reference and a description of the observed fault. Our team will respond within one business day to initiate the replacement or repair process. Return shipping instructions and a prepaid label (for eligible regions) will be provided upon claim approval.

For time-critical applications where downtime cost is significant, TOPNLMS can arrange advance replacement shipment — shipping a verified replacement unit before the faulty module is returned — subject to a deposit arrangement. This option is particularly relevant for facilities where a spare-parts buffer is not maintained and any delay in module replacement directly impacts production continuity.

TOPNLMS ships globally from Xiamen, China, with express freight options available for urgent requirements. Standard lead time for in-stock items is 1–3 business days for order processing and documentation, with DHL Express, FedEx International Priority, and UPS Worldwide Express available as shipping options. Export documentation, including commercial invoice, packing list, and certificate of origin, is prepared for all international shipments.

For bulk procurement, multi-module spare-parts packages, or long-term supply agreements, please contact our sales team directly to discuss pricing, lead times, and technical support arrangements.
