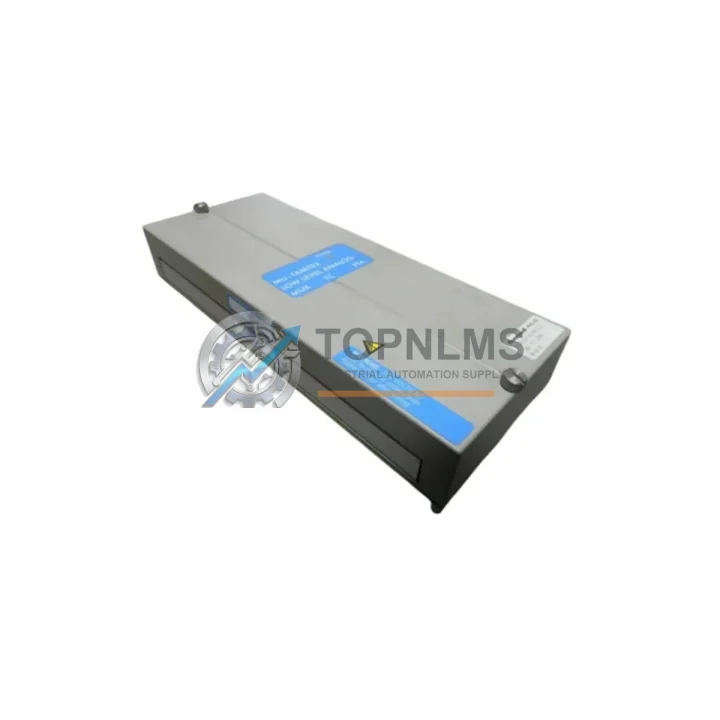

Honeywell 51309223-125 MU-TAMT03 Original Industrial Spare TPS Compatible

Product Overview

Honeywell 51309223-125 MU-TAMT03 Original Industrial Spare TPS Compatible: System Stability and Industrial Spare Parts Maintenance Value

The Honeywell 51309223-125 (MU-TAMT03) is an original analog multiplexer module designed for the TotalPlant Solution (TPS) Distributed Control System platform. In process industries — including refining, petrochemical, power generation, and continuous manufacturing — the TPS DCS remains a backbone control architecture at hundreds of facilities worldwide. Maintaining system stability on aging TPS installations depends critically on the availability of verified, original spare parts such as the MU-TAMT03. This module handles analog signal multiplexing within the I/O subsystem, enabling the controller to accurately read field instrument signals across multiple channels. A failed or degraded MU-TAMT03 can cause loss of process visibility, erroneous readings, or unplanned shutdowns — all of which translate directly into production losses and safety risks.

At TOPNLMS, every 51309223-125 / MU-TAMT03 unit is sourced from verified supply channels, functionally tested prior to dispatch, and backed by a 12-month warranty. We maintain ready stock to support emergency breakdown orders and planned maintenance shutdowns alike, with fast international shipping to minimize your downtime window.

Critical Technical Specs

Preventive Maintenance Strategy

Planned maintenance of a TPS DCS installation should never be limited to a single module in isolation. The MU-TAMT03 analog multiplexer sits within a broader I/O architecture, and its reliable operation depends on the health of surrounding components. During any scheduled shutdown or corrective maintenance event involving the 51309223-125, maintenance engineers are strongly advised to inspect and, where appropriate, pre-stock the following associated components.

The MU-TAIH02 / MU-TAIH04 analog input modules work in close coordination with the multiplexer to condition and digitize field signals. Degraded input modules can produce symptoms that are easily misattributed to the multiplexer itself, so inspecting both during the same maintenance window saves significant diagnostic time. Similarly, the MU-GAIH03 galvanically isolated analog input card is commonly installed in the same I/O cabinet for signals requiring isolation from ground loops — a frequent requirement in refinery and chemical plant environments.

Power integrity is equally critical. The MU-PWRSS / 51401469-100 TPS power supply module feeds the I/O subsystem, and a marginal power supply can cause intermittent analog reading errors that are difficult to trace. Replacing or bench-testing the power supply during the same outage window is a best-practice recommendation for any TPS site with modules older than five years. The 51304485-100 / MU-CBAS01 I/O link cable assembly connecting the I/O subsystem to the process manager should also be inspected for connector wear, shielding integrity, and secure seating — cable degradation is a common and underappreciated source of analog signal noise.

For sites running Honeywell’s HPM (High-Performance Process Manager) alongside TPS I/O, the 51401584-100 HPM I/O link interface card is a recommended co-inspection item. Communication module health — including the MU-TDPR02 / 51309218-175 data highway redundancy module — should be verified during any I/O maintenance event, as a degraded data highway can mask or amplify I/O faults. Maintenance teams should also check the condition of terminal blocks and field wiring termination assemblies in the marshalling cabinet; corroded or loose terminations are a leading cause of analog signal drift that is incorrectly diagnosed as module failure.

Finally, for facilities managing long-term TPS lifecycle extension, maintaining a small buffer stock of MU-TAMT03, MU-TAIH02, and MU-GAIH03 modules — alongside the relevant power supply and cable assemblies — provides meaningful insurance against extended lead times on legacy DCS components. Proactive inventory planning for these items is far less costly than emergency sourcing during an unplanned outage.

Strategic Replacement Solutions

The Honeywell TPS platform, while mature, continues to operate at a large number of process facilities that have chosen lifecycle extension over full DCS migration. For these sites, sourcing original spare parts such as the 51309223-125 / MU-TAMT03 is the most cost-effective and lowest-risk strategy for maintaining system integrity. A like-for-like replacement with an original module eliminates firmware compatibility concerns, avoids the need for I/O reconfiguration, and preserves the existing system’s safety and regulatory certification status.

Compared to third-party or refurbished alternatives, original Honeywell modules carry the assurance of factory-specification performance. For analog multiplexer functions — where signal accuracy directly affects process control quality — this distinction is operationally significant. Facilities that have attempted to substitute non-original modules in TPS I/O racks have reported calibration drift, intermittent channel faults, and in some cases, incompatibility with the TPS system manager’s diagnostic routines.

TOPNLMS maintains stock of the MU-TAMT03 and related TPS I/O components to support both emergency replacement and planned maintenance procurement. Our standard process includes functional testing, secure anti-static packaging, and documentation of test results. Orders are typically dispatched within 1–3 business days, with express shipping options available for urgent breakdown situations. All units are covered by a 12-month warranty from the date of delivery.

Support FAQ

Q1: Is the 51309223-125 a direct drop-in replacement for an existing MU-TAMT03 in my TPS rack?
Yes. The 51309223-125 is the Honeywell part number for the MU-TAMT03 module. It is designed as a direct slot replacement within the TPS I/O subsystem chassis. No software reconfiguration is required for a like-for-like swap, though we recommend verifying the slot assignment and I/O link address against your site’s as-built documentation before installation.

Q2: How do you verify the module is functional before shipment?
Every MU-TAMT03 unit undergoes functional testing prior to dispatch. We check power-up behavior, channel integrity, and communication response. A test record is available upon request. Units are packaged in anti-static materials with physical protection for transit. The 12-month warranty covers functional defects identified after installation under normal operating conditions.

Q3: What is the recommended inventory strategy for TPS spare parts at a site running lifecycle extension?
For sites committed to TPS lifecycle extension beyond the original platform end-of-life, we recommend maintaining at least one cold-spare MU-TAMT03 per I/O cabinet that relies on analog multiplexing. Given increasing lead times for legacy DCS components, a buffer of 2–3 units for high-criticality process areas is advisable. Pairing this with spares for the associated power supply modules and I/O link cables provides comprehensive coverage for the most common failure modes.

Q4: Can you support urgent breakdown orders with fast shipping?
Yes. TOPNLMS maintains ready stock of the 51309223-125 / MU-TAMT03 for immediate dispatch. Express international shipping is available to most destinations. For urgent breakdown situations, please contact us directly at [email protected] or +86 18359293191 to confirm stock availability and arrange priority dispatch. We regularly support emergency maintenance events with same-day or next-business-day shipment.
