Honeywell 51309148-125 Original Industrial Spare TDC 3000 Compatible

Product Overview

Honeywell 51309148-125 Original Industrial Spare TDC 3000 Compatible: System Stability and Industrial Spare Maintenance Value

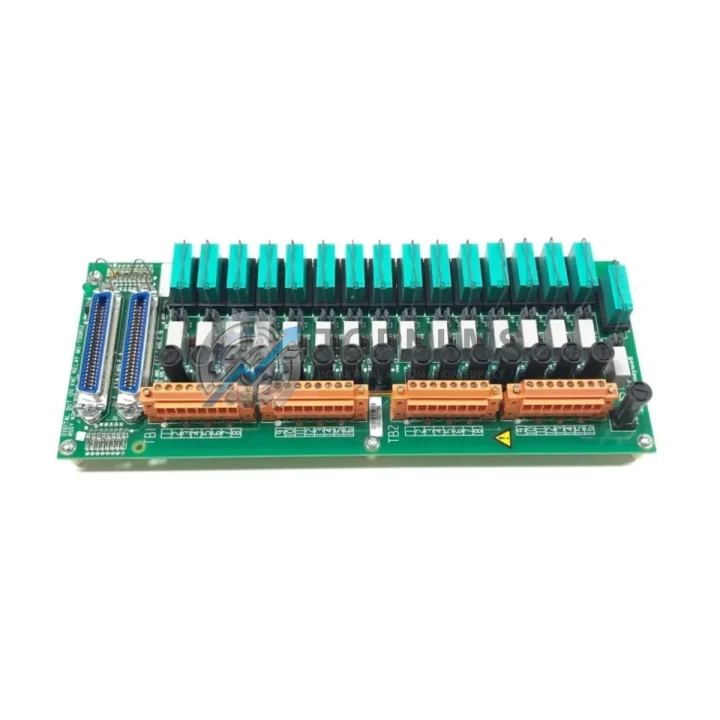

The Honeywell 51309148-125 is an original Digital Relay Output Board designed for the TDC 3000 Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in refining, petrochemical, power generation, and continuous manufacturing environments. As legacy TDC 3000 systems continue to operate well beyond their original design life, sourcing verified original spare parts like the 51309148-125 becomes a critical pillar of plant reliability strategy. This board provides the relay-driven discrete output capability that field devices, solenoid valves, motor starters, and alarm annunciators depend on for safe and deterministic operation.

For maintenance engineers and reliability teams managing aging DCS infrastructure, the 51309148-125 represents more than a replacement component — it is a system stability investment. Unplanned downtime caused by a failed relay output board can cascade across an entire process loop, triggering interlock trips, production losses, and safety system activations. Keeping a verified original 51309148-125 in your critical spares inventory eliminates this risk and ensures that when a board failure occurs, restoration is measured in minutes rather than days.

At TOPNLMS, every 51309148-125 unit is sourced from verified supply channels, functionally tested prior to dispatch, and shipped with full traceability documentation. Our 12-month warranty covers the complete board assembly, giving procurement and maintenance teams the confidence to plan long-term without concern for post-installation failures.

Critical Technical Specs Table

Preventive Maintenance Strategy

A relay output board failure rarely occurs in isolation. In TDC 3000 systems, the 51309148-125 operates within a tightly integrated cabinet architecture where the health of adjacent modules directly affects overall loop reliability. A structured preventive maintenance program should treat the 51309148-125 as part of a broader inspection scope rather than a standalone component.

During scheduled cabinet inspections, technicians replacing or testing the 51309148-125 should simultaneously verify the condition of the Honeywell 51309148-150 Digital Input Board installed in adjacent slots — input and output boards in the same I/O subsystem share backplane power and signal routing, meaning a degraded input board can mask relay output faults or generate spurious diagnostics. Similarly, the 51401476-100 Power Supply Module feeding the I/O card cage should be load-tested; an aging power supply with marginal voltage regulation is a leading cause of intermittent relay output behavior that is often misdiagnosed as a board-level fault.

For plants running HPM (High-Performance Process Manager) nodes, the Honeywell 51304485-100 HPM I/O Link Interface and associated 51309276-150 Analog Output Module should be included in the same maintenance window. These modules share the same I/O bus and cabinet environment, and their failure modes often correlate with relay output degradation in high-cycle applications such as batch processing or frequent valve actuation sequences.

Backplane connector integrity is another critical inspection point. The TDC 3000 card cage backplane assembly — including the edge connector contacts that mate with the 51309148-125 — should be cleaned and inspected for oxidation, particularly in humid or coastal plant environments. Connector resistance buildup is a silent reliability killer that causes intermittent relay chatter and false output states without triggering hard fault diagnostics.

Communication health should also be assessed during the same maintenance window. The Honeywell 51304516-100 LCN Interface Module and 51401584-100 UCN Tap Module govern how the TDC 3000 controller communicates relay output commands to the field. A degraded network interface can cause delayed or missed relay actuation commands that appear as relay board faults in maintenance logs. Verifying network module status alongside the 51309148-125 replacement eliminates this diagnostic ambiguity.

Finally, for plants with marshalling cabinet configurations, the terminal block assemblies and fuse modules wired to the relay output field terminals should be inspected for loose connections, blown fuses, and insulation degradation. A failed field-side fuse protecting a relay output circuit is frequently the root cause of what appears to be a board-level relay failure — and replacing the 51309148-125 without addressing the field wiring will result in repeat failures within weeks.

Strategic Replacement Solutions

The Honeywell TDC 3000 platform has been in continuous industrial service for decades, and while Honeywell has transitioned its current DCS portfolio toward the Experion PKS architecture, thousands of TDC 3000 systems remain in active production service globally. The 51309148-125 Digital Relay Output Board is a direct original replacement for failed or end-of-life boards within this installed base, requiring no firmware changes, no configuration migration, and no re-engineering of existing I/O assignments.

For plants that have attempted to substitute third-party or refurbished relay output boards, the 51309148-125 original restores full diagnostic transparency within the TDC 3000 system — including board-level fault reporting, relay cycle count monitoring, and integration with the plant’s existing Honeywell maintenance management workflows. Original boards also ensure that relay contact ratings, switching speeds, and isolation characteristics match the original system design specification, which is critical for safety-instrumented applications where relay output performance is part of a validated SIL assessment.

Procurement teams managing multi-site TDC 3000 installations should consider stocking the 51309148-125 as a standardized critical spare across all sites. Centralizing spare inventory for this board reduces per-unit procurement costs, simplifies logistics for emergency dispatch, and ensures that maintenance teams at all locations have access to a verified original replacement without relying on spot-market sourcing during a production emergency. TOPNLMS supports bulk procurement inquiries and can provide lead-time commitments aligned with your planned maintenance schedules.

Support FAQ

Q1: What is the expected service life of the 51309148-125, and when should I plan for proactive replacement?
The 51309148-125 relay output board has a design life consistent with Honeywell TDC 3000 platform standards, typically 10–15 years under normal operating conditions. However, relay contact wear is cycle-dependent — boards in high-frequency switching applications (e.g., batch sequencing, frequent valve actuation) may require replacement earlier. We recommend proactive replacement at the first sign of intermittent output faults, increased relay contact resistance, or when the board age exceeds 12 years in continuous service.

Q2: How do I verify compatibility before installation?
The 51309148-125 is designed for direct slot-compatible installation in TDC 3000 I/O card cages. Verify the card cage model, backplane revision, and I/O subsystem configuration against your existing system documentation before installation. TOPNLMS provides pre-shipment functional testing on every unit, and our technical team can assist with compatibility verification based on your system’s HPM or PM node configuration upon request.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers all manufacturing defects and functional failures of the complete 51309148-125 board assembly from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact [email protected] with your order reference, a description of the fault symptom, and photographic documentation of the board condition. Replacement or repair is processed within 5–7 business days of claim verification.

Q4: Can I order multiple units for inventory stocking, and what lead times should I plan for?
Yes — TOPNLMS supports both single-unit emergency orders and bulk stocking orders for the 51309148-125. Standard lead time for in-stock units is 3–5 business days for international shipment. For bulk procurement or scheduled delivery programs aligned with your annual maintenance budget cycle, contact our sales team at [email protected] or +86 18359293191 to discuss volume pricing and delivery commitments.
