Honeywell 51308301-175 CC-TCF901 Ruggedized I/O Termination Module: Industrial Resilience in Harsh Environments

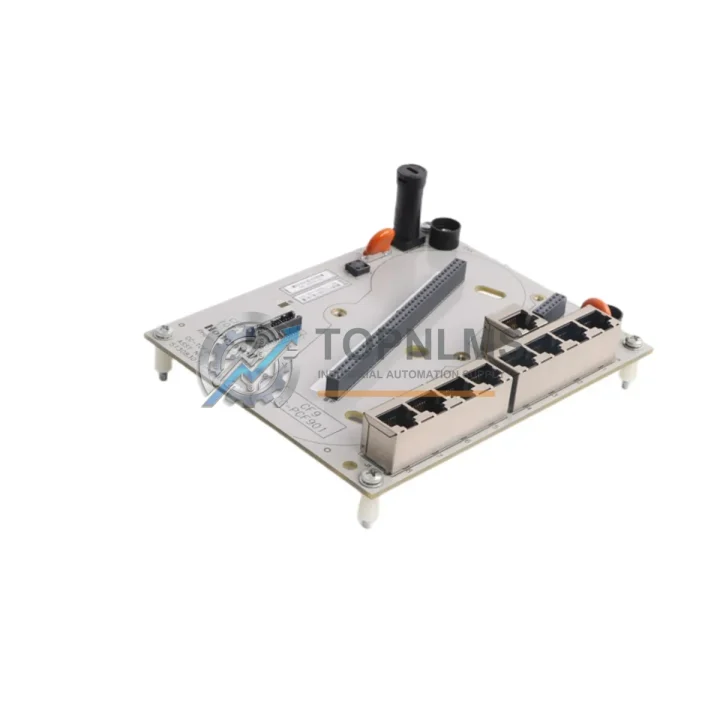

The Honeywell 51308301-175 CC-TCF901 is a CF9 Control Firewall I/O Termination Assembly engineered for the Experion PKS distributed control system platform. Designed to operate reliably under the most demanding industrial conditions — including high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference — this termination assembly serves as the critical field-wiring interface between process instrumentation and the Experion C300 Controller architecture. Its ruggedized construction and Honeywell’s proven DCS engineering heritage make it an indispensable component for facilities where unplanned downtime carries severe operational and safety consequences.

In continuous production environments such as petroleum refineries, chemical processing plants, and power generation facilities, the integrity of every I/O connection point directly determines system availability. The 51308301-175 CC-TCF901 provides a stable, noise-immune termination point that maintains signal fidelity even when installed in close proximity to high-voltage switchgear, variable frequency drives, and large motor starters — all common sources of conducted and radiated EMI in heavy industrial control cabinets. Its shielded architecture and robust terminal block design suppress interference that could otherwise corrupt analog or digital signals traversing the field wiring harness.

Rugged Specifications Table

Comprehensive Protection Solutions

The 51308301-175 CC-TCF901 does not operate in isolation — it is a foundational element within a broader Honeywell Experion PKS control architecture. In a typical Experion PKS cabinet, this termination assembly interfaces directly with the CC-PAIM01 analog input module and the CC-PDOB01 digital output module, providing the field-side wiring termination that keeps process signals clean and correctly routed. The CF9 firewall design ensures that field-side faults — such as wiring shorts or ground loops — are isolated from the controller backplane, protecting the C300 Controller (CC-PCF901) from cascading failures.

Within the same control cabinet, the 51308301-175 CC-TCF901 typically coexists with the CC-TCF901 redundant pair configuration, the Honeywell CC-PWRR01 redundant power supply module, and the CC-FTE001 Fault Tolerant Ethernet switch module, which together form a fully redundant, fault-tolerant control node. The FTE network backbone ensures that even if one communication path is disrupted by EMI or a cable fault, the system continues to operate without interruption — a critical requirement in continuous process industries.

For facilities running mixed I/O architectures, the CC-TCF901 termination assembly is also compatible with Honeywell HLAI (High-Level Analog Input) and LLAI (Low-Level Analog Input) signal conditioning modules, as well as the CC-TDIL01 digital input termination assembly for discrete field devices. Safety-instrumented system integrators frequently pair this module with Honeywell Safety Manager SC components, ensuring that the process control layer and the safety layer share a common, well-documented wiring infrastructure. Additionally, the Honeywell UDC series universal digital controllers and HC900 hybrid controllers used in auxiliary skid packages can be networked into the same Experion supervisory layer, with the CC-TCF901 serving as the primary I/O interface for the main process units.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the Honeywell 51308301-175 CC-TCF901 is deployed in wellhead control panels, compressor station automation cabinets, and pipeline SCADA interface enclosures. These environments expose control hardware to wide temperature swings, salt-laden air, and persistent mechanical vibration from rotating equipment. The CF9 termination assembly’s robust construction ensures that field wiring connections remain secure and signal-accurate across years of continuous operation without requiring frequent maintenance interventions.

In coal-fired and gas-fired power generation plants, the module is installed in boiler management system (BMS) cabinets and turbine control panels, where it handles analog signals from thermocouples, pressure transmitters, and flow meters. The ability to maintain signal integrity in the presence of high-voltage bus noise and ground potential differences — common in large generating stations — makes the CC-TCF901 a preferred termination solution for plant engineers specifying Experion PKS upgrades or greenfield DCS installations.

Water and wastewater treatment facilities benefit from the module’s resistance to high ambient humidity and chemical vapors. Installed in outdoor or semi-outdoor control enclosures, the 51308301-175 CC-TCF901 maintains reliable I/O connectivity for pump control, valve actuation, and flow measurement loops — all critical to regulatory compliance and public safety. Similarly, in metallurgical and steel production plants, where furnace heat radiation and heavy electromagnetic interference from arc furnaces are constant challenges, the CF9 architecture’s inherent isolation capability provides an additional layer of protection for the control system’s signal integrity.

Mining operations deploying Experion PKS for conveyor control, crusher automation, and ventilation management rely on the 51308301-175 CC-TCF901 to maintain uninterrupted I/O communication in dusty, vibration-intensive underground and surface environments. The module’s DIN-rail mounting and compact form factor simplify installation in space-constrained junction boxes and marshalling cabinets common in mine site infrastructure.
