Honeywell 51306816-200 Replacement for TDC3000: Seamless Transition from Legacy DCS to Reliable Modern Control

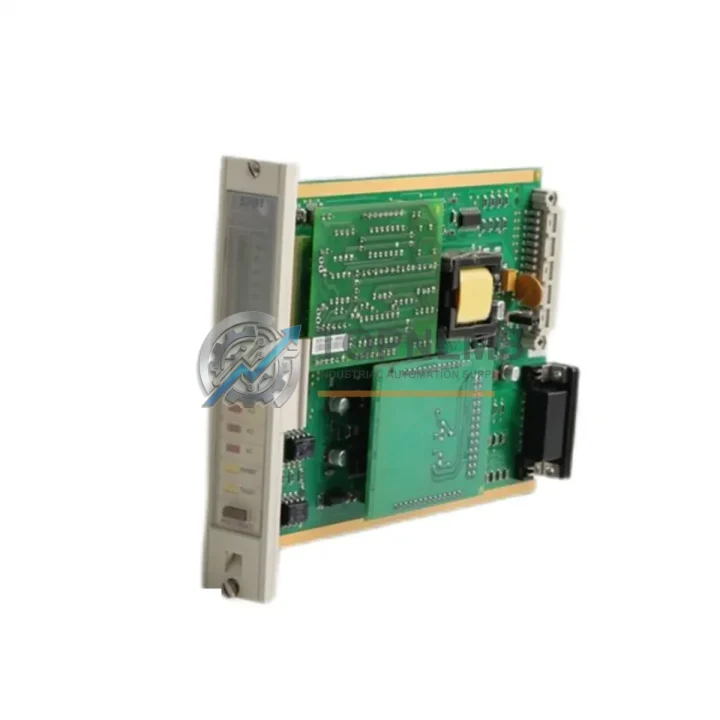

The Honeywell 51306816-200 is a proven DCS I/O board originally designed for the TDC3000 distributed control system — one of the most widely deployed process automation platforms in the oil & gas, petrochemical, power generation, and refining industries. As TDC3000 systems age and original spare parts become increasingly scarce, facilities face mounting pressure to source reliable replacement modules that maintain system integrity without triggering costly full-system migrations. TOPNLMS stocks the 51306816-200 as a direct replacement board, fully tested and ready to ship, enabling your engineering team to restore operations with minimal downtime and zero compromise on control performance.

The 51306816-200 functions as a field I/O interface board within the TDC3000 architecture, handling analog and digital signal conditioning between field instruments and the process control network. Its role is critical: it bridges the physical process — temperature transmitters, pressure sensors, flow meters, valve positioners — with the supervisory control layer. When this board fails or degrades, the consequences can cascade across an entire process unit. Having a verified replacement in inventory is not a luxury; it is a fundamental risk management strategy for any facility running continuous production.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC3000 I/O board replacement rarely involves a single component in isolation. In most field scenarios, the 51306816-200 operates alongside a network of interdependent modules that must remain synchronized during any swap or upgrade. The Local Control Network (LCN) infrastructure — including the Honeywell NIM (Network Interface Module) and the Highway Gateway Module — must remain stable throughout the replacement process to avoid disrupting upstream SCADA or DCS supervisory layers.

At the field level, the 51306816-200 typically interfaces with Honeywell FTA (Field Termination Assembly) panels, which provide the physical wiring connection between field instruments and the I/O board. These FTA panels — such as the 51304485-100 or 51304485-150 series — remain in place during a board swap, meaning field wiring is completely undisturbed. This dramatically reduces replacement time and eliminates the risk of miswiring during reinstallation.

For facilities also managing the Honeywell HPM (High-Performance Process Manager) or the older PM (Process Manager) controllers within the same TDC3000 architecture, the 51306816-200 replacement integrates without requiring any controller firmware updates or database restructuring. The existing process control database — including loop configurations, alarm setpoints, and interlock logic — remains fully intact.

In parallel upgrade projects where customers are modernizing their TDC3000 infrastructure toward Experion PKS, the 51306816-200 serves as a critical bridge component. It allows phased migration: individual process units can be upgraded to Experion C300 controllers while legacy TDC3000 I/O boards continue to serve stable, low-priority loops. This hybrid architecture is well-documented in Honeywell’s migration methodology and is supported by the Universal I/O (UIO) module family, which can coexist with legacy TDC3000 I/O in the same control room environment.

Power supply integrity is equally important. The TDC3000 card cage relies on dedicated Honeywell power supply modules — such as the 51190076-100 series — to deliver clean, regulated DC power to all installed boards. Before replacing the 51306816-200, engineering teams should verify that the card cage power supply is within specification, as a degraded PSU can cause premature failure of a newly installed I/O board. TOPNLMS can advise on compatible power supply modules if required.

For facilities that also operate Honeywell UDC (Universal Digital Controller) units or Honeywell HC900 hybrid controllers in adjacent process areas, the 51306816-200 replacement project is an opportunity to audit the broader spare parts inventory. Ensuring that critical modules — including communication cards, analog input modules, and relay output boards — are stocked at appropriate safety levels reduces the risk of unplanned shutdowns across the entire facility.

Retrofit Guidance FAQ

Q1: Will replacing the 51306816-200 require any changes to field wiring or instrument connections?
No. The 51306816-200 connects to the field via Honeywell FTA (Field Termination Assembly) panels, which remain physically installed during the board swap. Field wiring, instrument loops, and terminal connections are completely undisturbed. The replacement board slots directly into the existing card cage position, and the FTA cable reconnects to the same interface connector.

Q2: Do I need to reload or reconfigure the TDC3000 process database after installing the replacement board?
In most cases, no. The TDC3000 system stores process configuration — including loop parameters, alarm limits, and control strategies — in the system database, not on the I/O board itself. After physical installation, the system will recognize the replacement board and reload its configuration automatically during the next system scan. Your Honeywell-certified engineer should verify board recognition via the TDC3000 Engineering Console before returning the loop to automatic control.

Q3: Is the 51306816-200 compatible with both LCN and UCN communication architectures within TDC3000?
The 51306816-200 is an I/O board that operates within the TDC3000 card cage and communicates via the internal backplane to the Process Manager or High-Performance Process Manager controller. It does not directly interface with the LCN or UCN at the board level — that communication is handled by the PM/HPM controller module. As a result, LCN/UCN architecture differences do not affect the compatibility of this replacement board.

Q4: What if my facility is planning a phased migration from TDC3000 to Experion PKS — should I still invest in 51306816-200 spares?
Yes. Phased migrations typically span 3–7 years, and maintaining TDC3000 I/O board spares is essential to sustaining production continuity during the transition period. Unplanned I/O board failures during a migration project can force emergency shutdowns that disrupt the migration schedule and incur significant costs. TOPNLMS recommends maintaining a minimum of 1–2 spare 51306816-200 boards per process unit as a risk mitigation measure throughout the migration lifecycle.

Warranty Assurance

Every Honeywell 51306816-200 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a structured pre-shipment inspection that includes visual examination for physical damage, connector integrity verification, board-level component inspection, and functional testing where applicable. Units that do not meet our quality standards are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical team with the order reference and a description of the fault, and we will arrange a replacement shipment or issue a credit note based on your preference. Our average warranty response time is under 48 hours for standard cases.

We understand that in industrial environments, a faulty spare part is not merely an inconvenience — it can represent a production loss measured in thousands of dollars per hour. Our warranty policy is designed to reflect that reality: no bureaucratic delays, no ambiguous exclusions, and no cost to the customer for verified warranty replacements.

TOPNLMS maintains ongoing stock of the 51306816-200 and related TDC3000 components to support long-term procurement planning. We welcome blanket purchase orders and scheduled delivery arrangements for facilities that require guaranteed supply continuity over multi-year maintenance contracts.
