Honeywell 51306803-100 Replacement for TDC 3000 LCN NIM: Smooth Transition & Legacy System Compatibility

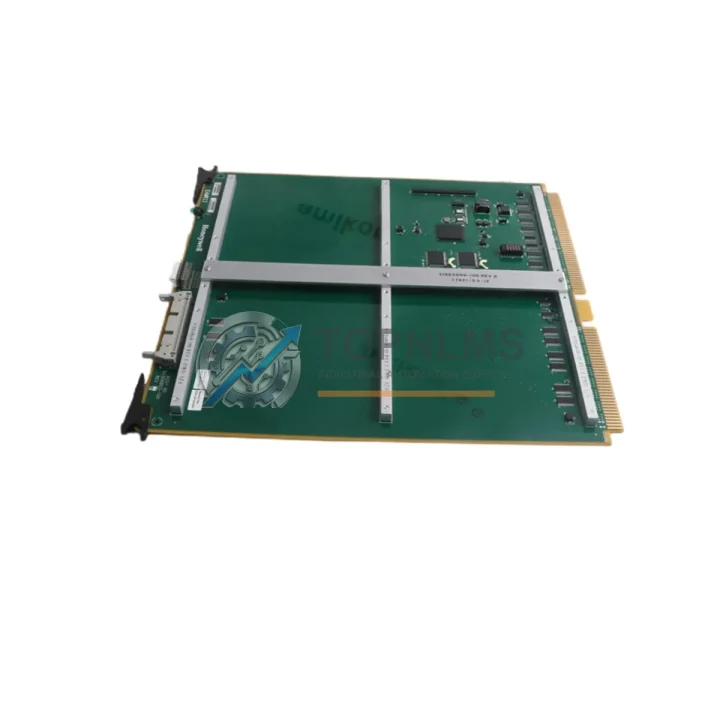

The Honeywell 51306803-100 NIM (Network Interface Module) Modem Board is a mission-critical communication component within the TDC 3000 Local Control Network (LCN) architecture. As Honeywell progressively phases out legacy TDC 3000 hardware, process plants, refineries, chemical facilities, and power generation sites face an urgent decision: source a verified replacement board to maintain system continuity, or execute a structured migration to a modern DCS platform such as Experion PKS. TOPNLMS supplies tested, ready-to-ship 51306803-100 units to support both strategies — minimizing unplanned downtime and protecting your existing control system investment.

The 51306803-100 NIM Modem Board serves as the backbone of LCN node communication, managing data exchange between operator stations, history modules, application modules, and process controllers across the TDC 3000 network. Failure or degradation of this board typically manifests as intermittent LCN communication faults, node dropouts, or complete loss of operator visibility — all of which carry significant operational risk in continuous-process environments. A verified replacement board, sourced and pre-tested before installation, is the fastest path to restoring system integrity without committing to a full platform migration.

For facilities executing a phased migration from TDC 3000 to Experion PKS or a third-party DCS platform, maintaining a healthy LCN during the transition period is non-negotiable. The 51306803-100 must remain fully functional while parallel systems are commissioned, I/O marshalling is reconfigured, and control strategies are validated in the new environment. During this critical window, related components such as the Honeywell 51401642-100 LCN Tap and the 51304485-100 LCN Cable Assembly are equally important to sustaining network signal integrity. Degraded coaxial connections are a common root cause of intermittent NIM faults that are frequently misdiagnosed as board-level failures — addressing the full LCN node health at the time of board replacement reduces the risk of repeat failures during the migration window.

At the power supply level, the 51309512-100 Power Entry Module and the 51401196-100 Power Supply Assembly are frequent co-replacements, particularly in systems that have operated continuously for over a decade. Unstable backplane voltage is a documented contributor to NIM modem board degradation. Addressing power quality upstream at the time of board replacement protects the new unit and extends service life — a consideration that is especially important when the replacement board is intended to bridge operations during a multi-year migration program.

For facilities running Honeywell Universal Control Network (UCN) alongside LCN, the 51304516-100 UCN Tap and associated 51401584-100 UCN Cable are relevant to the broader network audit that typically accompanies a TDC 3000 maintenance or upgrade project. If the migration scope extends to I/O subsystems, the 51304754-150 FTA (Field Termination Assembly) and the 51309218-100 I/O Link Interface Module are commonly sourced together to support a coordinated cutover from legacy I/O to modern marshalling cabinets — reducing the number of separate procurement events and simplifying site logistics.

Where operator interface modernization is part of the project scope, the transition from legacy GUS (Global User Station) hardware to Experion PKS Operator Stations requires careful LCN node decommissioning sequencing. Maintaining a functional 51306803-100 NIM in the legacy nodes during parallel operation ensures that historian data continuity and alarm management are not disrupted during the cutover window. TOPNLMS supports multi-component sourcing across all associated part numbers to simplify procurement and reduce lead-time risk across the full migration bill of materials.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC 3000 LCN maintenance or migration project rarely involves a single component. When replacing or upgrading the 51306803-100 NIM Modem Board, experienced engineers typically address the broader LCN node health at the same time to avoid repeat service events. The Honeywell 51401642-100 LCN Tap and the 51304485-100 LCN Cable Assembly should be inspected and replaced if signal integrity measurements indicate degradation — coaxial connection quality directly affects NIM modem board reliability and is a frequent source of misdiagnosed board failures.

Power infrastructure is equally important. The 51309512-100 Power Entry Module and the 51401196-100 Power Supply Assembly are standard co-replacements in aging TDC 3000 cabinets. Unstable backplane voltage accelerates board-level component wear; resolving power quality issues before installing the replacement 51306803-100 protects the investment and reduces the probability of early failure. For sites where the control cabinet layout is constrained, TOPNLMS can advise on physical space requirements and compatible power module configurations based on your specific chassis model.

For migration projects that extend to the UCN layer, the 51304516-100 UCN Tap and 51401584-100 UCN Cable support a coordinated network audit across both LCN and UCN segments. At the I/O level, the 51304754-150 FTA and 51309218-100 I/O Link Interface Module are commonly sourced together when the migration scope includes reconfiguring field termination from legacy TDC 3000 I/O to modern marshalling. TOPNLMS maintains inventory across all of these associated components to support single-source procurement for complex, multi-phase upgrade projects.

Retrofit Guidance FAQ

Q: Does replacing the 51306803-100 board require LCN reconfiguration?
A: In most cases, no. NIM configuration data resides in the module’s non-volatile memory or is restored from the system database. A board-level swap within the same NIM chassis typically does not require re-engineering of LCN node parameters, provided the replacement board revision is compatible with the installed NIM firmware version. TOPNLMS can confirm revision compatibility before shipment.

Q: Can the 51306803-100 be replaced while the LCN is live?
A: Hot-swap capability depends on the specific NIM chassis design and site safety procedures. In most TDC 3000 installations, NIM board replacement requires a controlled node shutdown with advance notification to the DCS system. Coordinate with your Honeywell service representative or system integrator to confirm the correct isolation and restoration procedure for your site configuration.

Q: What are the physical space and installation requirements?
A: The 51306803-100 is a standard TDC 3000 card-cage format board occupying a single slot within the NIM chassis. No additional panel space is required. Verify that the receiving chassis is the correct NIM model and that the slot is mechanically undamaged before installation.

Q: Is the 51306803-100 compatible with both TDC 3000 and TPS systems?
A: The TPS (TotalPlant Solution) platform is an evolution of TDC 3000 and shares the LCN architecture. Compatibility should be verified against the specific NIM chassis part number and firmware revision in your installation. Contact TOPNLMS with your full system configuration for pre-sale compatibility confirmation at no charge.

Q: What if the NIM chassis itself is also faulty?
A: TOPNLMS maintains inventory of complete NIM assemblies in addition to individual boards. If on-site diagnostics indicate chassis-level failure rather than board-level failure, we can supply a complete replacement NIM module to minimize troubleshooting time and reduce the risk of a second service event.

Q: How does this replacement support a migration to Experion PKS?
A: The 51306803-100 is designed to maintain LCN stability during the parallel-operation phase of a migration project. By keeping legacy LCN nodes healthy, engineering teams can commission Experion PKS nodes, validate control strategies, and migrate I/O subsystems without disrupting ongoing production. This phased approach reduces migration risk and allows cutover to be scheduled during planned maintenance windows.

Warranty Assurance

Every 51306803-100 NIM Modem Board shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each unit undergoes functional inspection and verification against known-good reference standards. Units are packaged in anti-static, shock-protected materials appropriate for sensitive DCS electronics, with full traceability documentation included in the shipment.

In the event of a warranty claim, TOPNLMS provides a direct replacement or full refund, with a target response time of 24–48 business hours from claim submission. Our after-sales team is reachable via email at [email protected] or by phone at +86 18359293191. We understand that DCS component failures carry operational urgency, and our support process is structured to match that priority — including expedited replacement shipping where required.

For time-critical procurement, expedited shipping from our Xiamen warehouse is available to most destinations. Lead times, shipping options, and customs documentation support can be confirmed at the time of order. Volume pricing is available for facilities sourcing multiple units for spare parts inventory programs or multi-site migration projects.
