Honeywell 51305896-200 Original Industrial Spare TDC 3000 Compatible

Product Overview

Honeywell 51305896-200 Original Industrial Spare TDC 3000 Compatible: System Stability & Industrial Spare Parts Maintenance Value

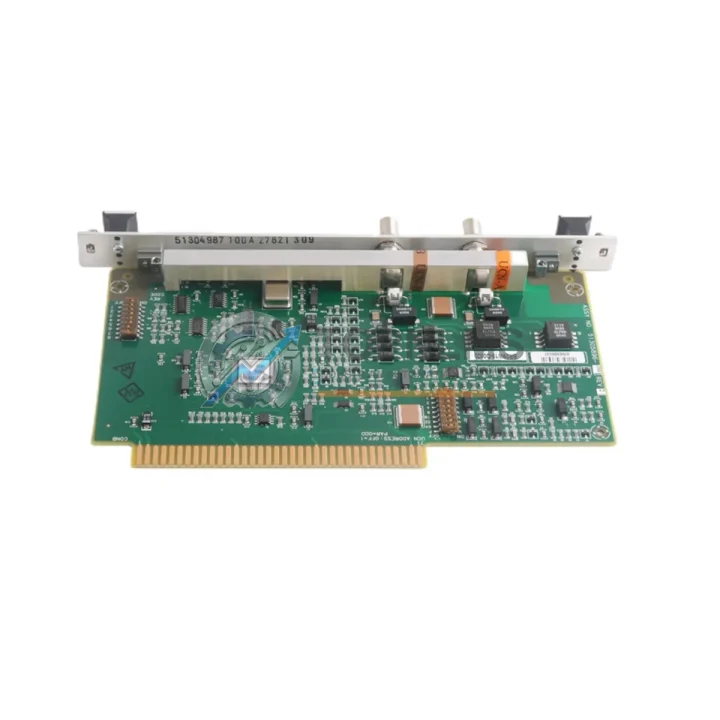

The Honeywell 51305896-200 NIM (Network Interface Module) Modem Board is a critical communication sub-assembly within the Honeywell TDC 3000 Distributed Control System (DCS) architecture. Designed to manage data exchange between the Local Control Network (LCN) and field-level process controllers, this module is a cornerstone of plant-wide communication integrity. For facilities running legacy TDC 3000 infrastructure — common in refining, petrochemical, power generation, and continuous process industries — maintaining a verified spare of the 51305896-200 is not optional; it is a fundamental risk-mitigation strategy.

When a NIM Modem Board fails, the consequences extend far beyond a single loop. Loss of network communication can cascade into blind control, alarm suppression failures, and unplanned shutdowns. Sourcing a tested, original-specification replacement immediately is the difference between a two-hour recovery and a multi-day production loss event. TOPNLMS stocks the 51305896-200 as a ready-to-ship unit, pre-tested against Honeywell TDC 3000 electrical and communication standards, with full 12-month warranty coverage from date of shipment.

Critical Technical Specs Table

Preventive Maintenance Strategy

A scheduled inspection of the TDC 3000 communication backbone should never focus on the NIM Modem Board in isolation. The 51305896-200 operates within a tightly coupled network of hardware that must be evaluated as a system. During any planned maintenance window or unplanned outage investigation, maintenance engineers should simultaneously audit the condition and firmware status of the Honeywell 51401196-100 LCN Interface Module, which handles the upstream Local Control Network handshake. A degraded LCN interface will mask NIM-level faults and lead to misdiagnosis.

The Honeywell 51304485-100 Power Supply Module feeding the NIM chassis is another frequent failure point in aging TDC 3000 cabinets. Voltage ripple or marginal output from a worn power supply can cause intermittent NIM resets that appear as network instability rather than a power fault — always verify supply rail integrity before condemning a communication board. Similarly, the 51109684-100 Coax Cable Assembly connecting NIM ports to the UCN coaxial highway should be inspected for connector oxidation, jacket cracking, and impedance continuity; a degraded cable will produce the same symptom profile as a failed modem board.

For facilities managing multiple TDC 3000 nodes, the Honeywell 51304453-100 AM (Application Module) and 51401584-100 HPM (High-Performance Process Manager) should be included in the same inspection cycle. These modules depend on reliable NIM communication to execute control strategies; any latency introduced by a marginal 51305896-200 will surface as scan-time overruns or historian data gaps in these upstream processors.

Preventive maintenance best practice also calls for keeping a tested spare of the Honeywell 51309276-150 NIM Chassis Backplane on-site. Backplane connector wear is a silent failure mode in systems with 15+ years of service, and a failed backplane will destroy a new NIM board within hours of installation if not identified first. Rounding out the recommended spare kit: the 51196655-100 Termination Assembly for UCN network termination integrity, and the 51401195-100 Highway Gateway Module for sites bridging TDC 3000 to newer Experion PKS or third-party SCADA systems.

For I/O-intensive cabinets co-located with the NIM, a periodic check of Honeywell 51304754-150 FTA (Field Termination Assembly) units and associated 51202329-502 Analog Input Cards ensures that field signal integrity is not masking communication-layer issues. Maintaining a documented inspection log for all these components — cross-referenced against the 51305896-200 replacement date — is the foundation of a defensible preventive maintenance program.

Strategic Replacement Solutions

The 51305896-200 is a direct, form-fit-function replacement for earlier NIM Modem Board revisions within the TDC 3000 platform. Facilities still operating the -100 or -150 revision variants can upgrade to the -200 without chassis modification, firmware re-flashing of adjacent modules, or reconfiguration of LCN node addressing — a critical advantage when replacement must occur during a narrow maintenance window or emergency shutdown.

For sites transitioning from TDC 3000 toward Honeywell Experion PKS, the 51305896-200 provides a cost-effective bridge strategy: maintaining TDC 3000 NIM communication integrity while the migration project is phased over multiple turnarounds. This avoids the capital expenditure of a full DCS cutover while preserving process uptime and operator familiarity with existing HMI displays and control narratives.

TOPNLMS sources the 51305896-200 through verified industrial supply channels. Each unit undergoes functional communication testing and visual inspection before dispatch. Packaging is anti-static and shock-protected for international freight. Standard lead time is 1–3 business days from confirmed order, with expedited options available for emergency plant situations. All units are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.

Support FAQ

Q1: Is the 51305896-200 compatible with all TDC 3000 NIM chassis configurations?
Yes. The -200 revision is backward-compatible with TDC 3000 NIM chassis designed for the -100 and -150 board revisions. No chassis modification is required. Verify your chassis backplane revision against Honeywell’s NIM compatibility matrix if operating a pre-1995 installation.

Q2: What does the 12-month warranty cover?
The warranty covers functional failure and manufacturing defects under normal industrial operating conditions from the date of shipment. It does not cover damage from incorrect installation, overvoltage events, or physical mishandling. TOPNLMS provides a replacement or full refund within the warranty period upon fault verification.

Q3: How is the unit tested before shipment?
Each 51305896-200 is bench-tested for communication signal integrity, connector continuity, and board-level power rail stability. Units that fail any test parameter are quarantined and not dispatched. A test record is available upon request for quality-critical procurement processes.

Q4: What is the recommended spare inventory strategy for TDC 3000 NIM boards?
For facilities with 2–4 active NIM nodes, maintaining a minimum of one tested spare 51305896-200 on-site is recommended. For larger installations or sites with extended lead times from primary suppliers, a two-unit buffer is advisable. Given the age of TDC 3000 infrastructure, OEM new-production availability is limited — securing spares proactively is significantly more cost-effective than emergency sourcing during an unplanned outage.
