Honeywell 51305896-100 Original Industrial Spare Experion PKS Compatible

Product Overview

Honeywell 51305896-100 Original Industrial Spare Experion PKS Compatible: System Stability & Maintenance Value

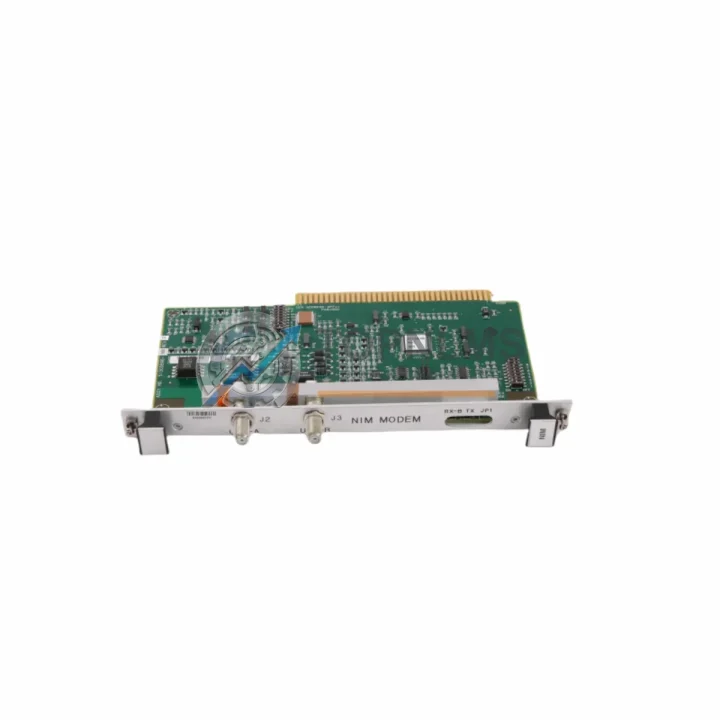

The Honeywell 51305896-100 PWA NIM Modem is a critical network interface module within the Experion PKS (Process Knowledge System) distributed control architecture. Designed to bridge field-level process data with supervisory control networks, this module ensures uninterrupted communication between the C200/C300 controller platform and the Experion server infrastructure. For facilities running continuous or batch processes — petrochemical, power generation, pulp and paper, pharmaceutical — the 51305896-100 is not a peripheral component; it is a load-bearing element of system uptime.

Sourced directly from verified supply channels, every unit offered by TOPNLMS undergoes pre-shipment functional inspection. Each 51305896-100 ships with a 12-month warranty covering manufacturing defects and operational failure under normal industrial conditions.

Critical Technical Specs

Preventive Maintenance Strategy

When a facility schedules a planned shutdown or responds to an unplanned trip on an Experion PKS system, the NIM modem is rarely the only component that warrants attention. Network communication faults in DCS environments are frequently systemic — a degraded 51305896-100 often coexists with aging FTE switch infrastructure, deteriorating cable terminations, or marginal power supply rails.

During any inspection cycle involving the 51305896-100, maintenance teams should simultaneously audit the Honeywell 51305890-175 C300 Controller Module, which shares the same chassis and depends on the NIM for upstream data routing. If the controller shows intermittent communication alarms, the NIM modem is a primary suspect. Alongside the controller, the 51304485-100 Power Supply Module should be load-tested; a sagging backplane voltage is a common root cause of NIM resets that are misdiagnosed as firmware faults.

I/O integrity is equally important. The Honeywell 51305556-175 AI Module (Analog Input) and 51305557-175 AO Module (Analog Output) connected downstream of the C300 should be inspected for channel drift and terminal block corrosion, particularly in high-humidity or coastal environments. Loose terminations on Honeywell 51196655-100 terminal assemblies are a frequent source of spurious process alarms that are incorrectly attributed to the NIM layer.

For facilities with redundant FTE networks, the Honeywell 51309512-175 FTE Network Switch should be included in the inspection scope. A failing switch port can cause asymmetric packet loss that manifests as intermittent NIM communication errors — a fault pattern that is difficult to diagnose without simultaneous switch-level diagnostics. Spare SFP fiber transceivers compatible with the FTE switch should be held in local inventory given their low cost relative to the downtime risk they mitigate.

At the HMI and supervisory layer, verify that the Experion PKS Station (ESVT or ESXP series) operator workstation is running a firmware revision compatible with the 51305896-100 NIM modem firmware. Mismatched firmware versions between the NIM and the Experion server are a documented source of communication instability following system upgrades. If the site is running an older Experion R400 or R430 release, a Honeywell 51401288-100 Communication Module may be required as a bridge component during phased migration.

Finally, for cabinets housing the Experion PKS chassis, inspect the 24 VDC cabinet power distribution rail and associated fuse modules. A blown fuse on the NIM modem supply rail will produce a hard communication loss that is indistinguishable from a failed module until the power circuit is verified. Keeping a set of rated fuse cartridges and a spare Honeywell 51304485-150 Redundant Power Supply on the shelf eliminates this diagnostic ambiguity entirely.

Strategic Replacement Solutions

The 51305896-100 has been in service across Experion PKS installations since the mid-2000s. Many sites running R400-series Experion software have no viable upgrade path that does not require a full controller chassis replacement — making the availability of original spare NIM modems a direct determinant of system longevity. TOPNLMS maintains stock of the 51305896-100 specifically to support these legacy-extension scenarios.

For sites transitioning from older Honeywell TDC 3000 or PlantScape architectures toward Experion PKS, the 51305896-100 serves as a validated interface point that preserves existing field wiring and I/O infrastructure while enabling modern supervisory connectivity. This reduces migration capital expenditure significantly compared to full greenfield DCS installations.

Replacement of a failed NIM modem in the field is a hot-swap procedure on redundant Experion PKS configurations, requiring no process shutdown when executed correctly. TOPNLMS provides pre-tested units that are ready for immediate rack insertion, reducing mean time to repair (MTTR) to under 30 minutes for experienced maintenance personnel. Each unit is shipped with original firmware loaded and basic configuration documentation to support commissioning.

For sites managing multi-unit or multi-train facilities, holding a minimum of one spare 51305896-100 per controller cluster is the recommended inventory posture. Given the module’s role in network communication, a single-point failure without a spare on hand can result in extended unplanned downtime that far exceeds the cost of the spare itself.
