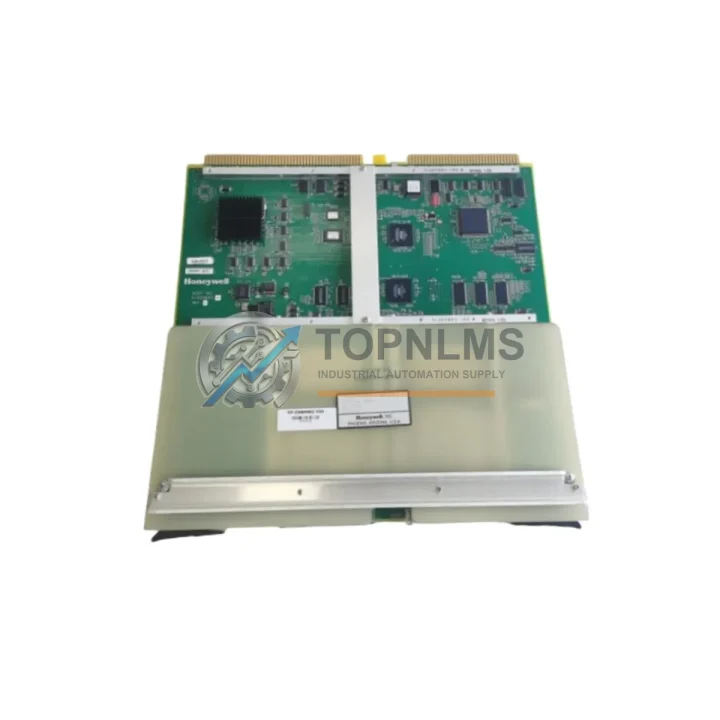

Honeywell 51305542-100 Original Industrial Spare TDC 3000 Compatible: System Stability & Industrial Spare Maintenance Value

The Honeywell 51305542-100 is an original digital input module engineered for the TDC 3000 and Experion PKS distributed control systems. In process manufacturing, refining, chemical, and power generation facilities where Honeywell TDC 3000 platforms remain the backbone of plant-wide control, maintaining a reliable inventory of genuine I/O modules is not optional — it is a core pillar of operational continuity. This module provides the critical digital signal acquisition layer that connects field instruments, limit switches, valve position feedback, and motor status signals to the process controller, ensuring that operators receive accurate, real-time data for safe and efficient plant operation.

When a digital input module fails or degrades, the consequences extend far beyond a single I/O point. Operators lose visibility into field device states, alarm management becomes unreliable, and the risk of undetected process deviations increases significantly. Sourcing a verified original replacement — rather than an untested substitute — eliminates compatibility uncertainty and restores system integrity with confidence. The 51305542-100 is fully compatible with existing TDC 3000 and Experion PKS cabinet configurations, requiring no firmware modifications or hardware adaptation during replacement.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled maintenance approach for TDC 3000 and Experion PKS systems should treat the 51305542-100 digital input module as part of a broader I/O health audit. During planned shutdowns or turnaround maintenance windows, maintenance engineers typically inspect not only the digital input modules but also the associated digital output modules — such as the Honeywell 51305543-150 or equivalent DO modules in the same I/O carrier — to ensure that both signal acquisition and actuation paths are functioning within specification.

Power integrity is equally critical. The 51305542-100 relies on stable 24 VDC field power supplied through the cabinet’s power distribution assembly. Inspecting and, where necessary, replacing the Honeywell 51401469-100 or equivalent power supply modules during the same maintenance cycle prevents secondary failures that can cascade across multiple I/O channels. Fuse modules and terminal blocks within the marshalling cabinet should also be checked: degraded fuse holders or loose terminal connections on components such as the Honeywell 51196893-100 field termination assembly can introduce intermittent faults that are difficult to diagnose remotely.

For facilities running mixed TDC 3000 and Experion PKS architectures, the communication infrastructure between the I/O subsystem and the process controller deserves equal attention. Highway Interface Modules (HIMs) and Data Hiway components — including the Honeywell 51401196-100 series — should be part of the same inspection checklist. A degraded communication module can cause an otherwise healthy digital input module to report erroneous states, leading to unnecessary process interventions.

Analog input modules sharing the same I/O carrier, such as the Honeywell 51304485-100 or 51309276-175 AI modules, should be verified for calibration drift during the same maintenance window. Combining digital and analog I/O inspections in a single planned outage maximizes maintenance efficiency and minimizes the number of production interruptions over the course of a year. Similarly, the I/O Link Interface Module (IOLIM) or equivalent gateway modules connecting field I/O to the UCN (Universal Control Network) should be tested for communication integrity.

Proactive spare parts planning for TDC 3000 systems should also include a buffer stock of the 51305542-100 alongside related components such as the Honeywell 51198685-100 cable assembly and the MC-TDID12 or equivalent digital input termination panels. Maintaining two to three units of each critical I/O module type in the plant storeroom is a widely adopted best practice in process industries, reducing mean time to repair (MTTR) from days to hours when an unplanned failure occurs.

Strategic Replacement Solutions

The 51305542-100 is a direct replacement for aging or failed digital input modules within existing TDC 3000 and Experion PKS cabinets. Because it is an original Honeywell part, it requires no firmware reconfiguration, no I/O builder modifications, and no changes to the existing wiring termination scheme. Maintenance technicians can complete a module swap during a brief process hold or, in systems configured for redundant I/O, without any process interruption at all.

For plants managing the transition from legacy TDC 3000 hardware to Experion PKS, the 51305542-100 provides a cost-effective bridge strategy. Rather than committing to a full I/O migration project — which carries significant engineering, commissioning, and validation costs — facilities can extend the operational life of their existing control infrastructure by maintaining a curated inventory of original spare modules. This approach is particularly valuable in regulated industries such as oil and gas, pharmaceuticals, and power generation, where control system changes require formal change management and revalidation.

Compared to refurbished or third-party alternatives, original modules like the 51305542-100 carry documented traceability, factory test records, and full compatibility assurance with Honeywell’s system software. This eliminates the diagnostic uncertainty that often accompanies non-original parts and reduces the risk of introducing new failure modes into a stable control system.

Support FAQ

Q1: Is the 51305542-100 compatible with both TDC 3000 and Experion PKS systems?
Yes. The 51305542-100 is designed for use in Honeywell TDC 3000 and Experion PKS distributed control systems. It installs directly into the existing I/O carrier without hardware or software modification. Always verify the carrier model and I/O slot configuration against your system documentation before installation.

Q2: What testing is performed before shipment?
Each unit undergoes functional verification prior to dispatch, including power-on self-test and I/O channel continuity checks. The module is shipped with protective packaging to prevent ESD damage and physical shock during transit. A 12-month quality warranty is included from the date of shipment.

Q3: How many spare units should a plant maintain in inventory?
For critical process units, industry best practice recommends maintaining a minimum of two spare digital input modules per control cabinet. Plants with extended lead times for Honeywell legacy parts — or those operating in remote locations — should consider holding three to five units to cover both planned replacement cycles and unplanned failures.

Q4: Can this module be installed without shutting down the process?
In TDC 3000 and Experion PKS systems configured with redundant I/O, the 51305542-100 can typically be replaced online without process interruption. In non-redundant configurations, a brief process hold is required. Always consult your site’s management of change (MOC) procedure and the Honeywell system documentation before performing any live maintenance activity.
