Honeywell 51305508-200 XLCNE2 Replacement for Experion PKS

Product Overview

Honeywell 51305508-200 XLCNE2 Replacement for Experion PKS: Seamless Transition & Legacy System Compatibility

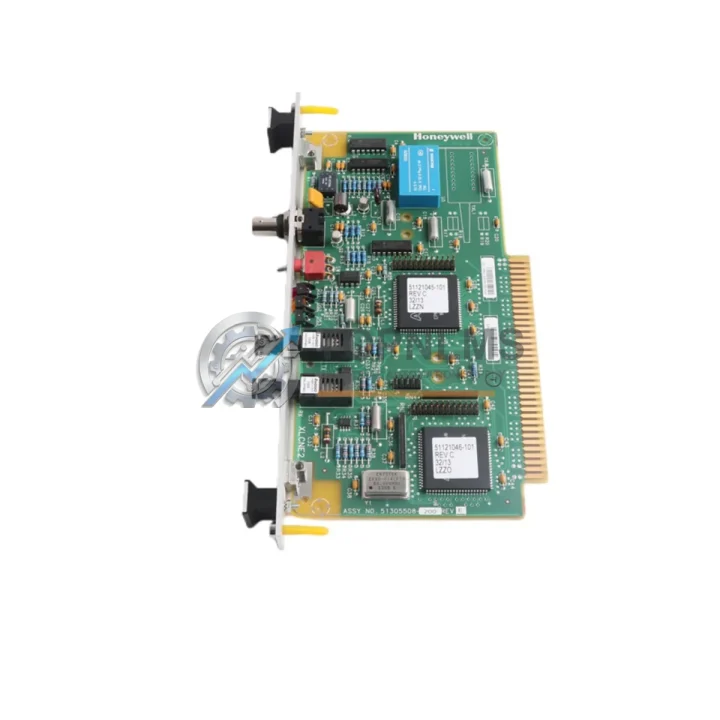

The Honeywell 51305508-200 PWA XLCNE2 Multimode CE Fiber Network Interface Board is a critical communication backbone component within the Honeywell Experion PKS (Process Knowledge System) distributed control architecture. As aging DCS installations approach end-of-support milestones, facilities running legacy C200, C300, or ACE controller nodes increasingly face the challenge of sourcing reliable, tested replacements for discontinued or hard-to-find fiber network interface boards. TOPNLMS maintains verified stock of the 51305508-200 to support exactly these migration and continuity scenarios — enabling your engineering team to restore network integrity without forcing a full platform overhaul.

The XLCNE2 module provides the multimode fiber uplink that connects Experion PKS controller nodes to the FTE (Fault Tolerant Ethernet) backbone. When this board fails or becomes unavailable through OEM channels, the entire control loop dependent on that node is at risk. Our replacement units are sourced from decommissioned systems, fully inspected, and function-tested against Experion PKS communication benchmarks before dispatch. Each unit ships with original firmware compatibility intact, ensuring no re-flashing or reconfiguration is required at the rack level.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Experion PKS fiber network restoration rarely involves a single component in isolation. In practice, when the 51305508-200 XLCNE2 board is being replaced, field engineers typically audit the surrounding infrastructure simultaneously to prevent repeat failures and reduce future downtime risk.

The C300 Controller (51309288-175 or equivalent) is the most common host controller paired with the XLCNE2 fiber interface board. If the controller itself is approaching end-of-life or showing intermittent faults, replacing both the controller and the network interface board in the same maintenance window eliminates the need for a second planned outage. Similarly, the C200 Controller module (51304485-100 series) found in older Experion PKS installations often shares the same chassis and backplane as the XLCNE2, making it a natural co-replacement candidate during rack-level refurbishment.

On the I/O side, Series C I/O Link Interface modules — such as the 51305556-175 IOLI — connect field device signals to the controller network. When upgrading the fiber network layer, verifying the health of these I/O link modules ensures the entire signal chain from field instrument to control room is operating within specification. Power supply modules, particularly the 51309512-175 or 51304362-175 units that feed the Experion PKS chassis, should also be inspected: a degraded PSU can cause intermittent board resets that mimic fiber network faults, leading to misdiagnosis.

For facilities migrating from older TDC 3000 or PlantScape architectures toward Experion PKS, the migration path often involves installing FTE Network Switches (Honeywell-qualified managed switches supporting the FTE protocol stack) alongside the XLCNE2 board to establish the redundant Ethernet backbone. Communication between legacy field devices and the new Experion PKS platform may also require HART Multiplexers or Foundation Fieldbus Interface Modules to bridge older analog instrumentation into the digital control layer without rewiring the entire field junction box network.

In control cabinet environments where space is constrained, Signal Isolators and Terminal Blocks (such as the Honeywell STT series or equivalent DIN-rail mounted isolators) are frequently installed alongside the new fiber board to protect the controller backplane from ground loops introduced during the transition period. Finally, for commissioning and diagnostics, a Honeywell-compatible Programming Cable or FTE diagnostic laptop kit is essential to verify node addressing, confirm fiber link status via Control Builder, and validate I/O channel mapping before returning the loop to automatic control.

Retrofit Guidance FAQ

Q: Can I reuse my existing multimode fiber cables when installing the 51305508-200?
Yes. The XLCNE2 uses standard SC-type multimode fiber connectors (62.5/125 µm). Existing fiber runs do not need to be replaced provided they meet the minimum optical budget for the link distance. Clean the SC connectors before reinsertion and verify link light indicators on the board after power-up.

Q: Do I need to modify my Experion PKS Control Builder configuration after swapping this board?
In most cases, no. The 51305508-200 is a direct hardware replacement. The node address and FTE network parameters are stored in the controller, not on the fiber interface board itself. After physical installation, the controller should re-establish FTE communication automatically. A Control Builder online download may be required if the controller lost its configuration during the outage.

Q: Is this board compatible with both primary and secondary FTE network ports?
Yes. The XLCNE2 supports the dual-port FTE redundancy architecture. Both fiber uplink ports are functional on this unit. Verify port assignment (Port A / Port B) matches your existing FTE switch topology before installation.

Q: What is the physical installation procedure — hot-swap or cold-swap?
This depends on your Experion PKS firmware revision. Releases R400 and above support online module replacement for certain controller types. For earlier firmware, a planned controller shutdown is required. Always consult your site’s MOC (Management of Change) procedure and Honeywell’s module replacement documentation for your specific release.

Q: My cabinet uses a mix of C200 and C300 controllers. Will this board work in both chassis types?
The 51305508-200 XLCNE2 is designed for the Experion PKS controller chassis family. Verify the specific slot assignment and chassis revision in your as-built documentation. If you are unsure of compatibility for a mixed-generation cabinet, contact TOPNLMS with your chassis part number and we will confirm before shipment.

Q: How do I verify the board is functioning correctly after installation?
After power-up, check the LED status indicators on the XLCNE2 faceplate: the FTE link LEDs should illuminate solid green for an established fiber connection. In Control Builder, navigate to the Network tree and confirm the controller node appears online. Run a loop check on at least one I/O channel per connected I/O Link module to validate end-to-end signal integrity.

Warranty Assurance

Every Honeywell 51305508-200 XLCNE2 unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to dispatch, each board undergoes a multi-stage inspection process: visual examination for physical damage, backplane connector integrity check, fiber port optical verification, and functional power-on test in an Experion PKS-compatible test rack. Units that do not pass all inspection stages are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for replacement dispatch on confirmed warranty cases. We maintain buffer stock of the 51305508-200 specifically to support rapid warranty replacements without lead-time delays.

For procurement teams requiring documentation, we can provide an inspection report, test record, and certificate of conformance upon request at the time of order. All units are shipped in anti-static packaging with foam protection, and export documentation (commercial invoice, packing list, and HS code declaration) is included for international customs clearance.

TOPNLMS ships from Xiamen, China, with DHL Express, FedEx International Priority, and UCP freight options available. Typical transit time to major industrial hubs in Southeast Asia, the Middle East, and Europe is 3–7 business days. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.
