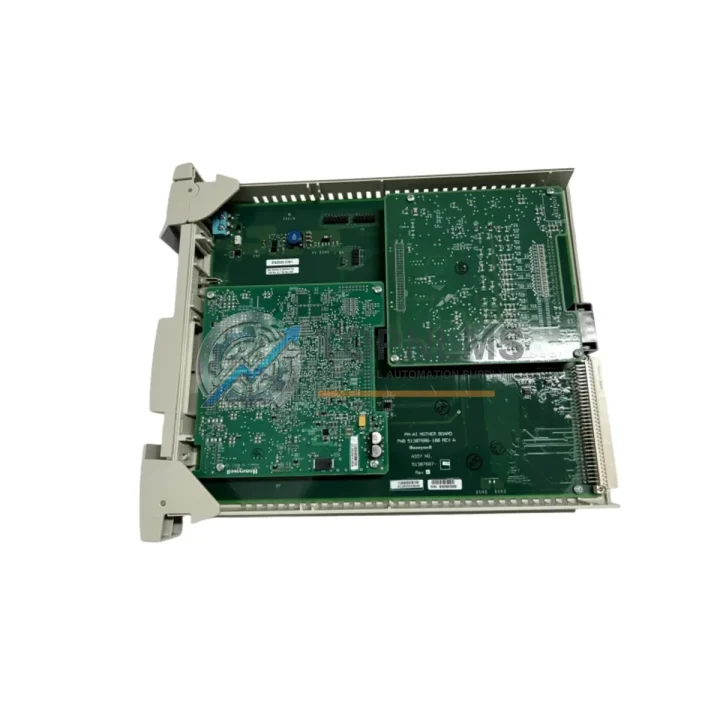

Honeywell 51304754-176 Original Industrial Spare UCN HLAI Compatible

Product Overview

Honeywell 51304754-176 Original Industrial Spare UCN HLAI Compatible: System Stability & Industrial Spare Maintenance Value

In high-availability process control environments, the integrity of every analog input channel directly determines the reliability of your entire DCS loop. The Honeywell 51304754-176 (cross-reference: 51307687-176) is a UCN HLAI (High-Level Analog Input) module engineered for the Honeywell TDC-3000 distributed control system — one of the most widely deployed DCS platforms in refining, petrochemical, power generation, and continuous manufacturing facilities worldwide.

Sourced as an original spare and fully tested prior to shipment, this module is a critical line-replaceable unit (LRU) for facilities that depend on uninterrupted analog signal acquisition from field transmitters, thermocouples, and process sensors. Whether you are managing a planned turnaround, responding to an unscheduled shutdown, or building a strategic spare parts inventory, the 51304754-176 delivers the compatibility, signal fidelity, and drop-in replaceability that maintenance engineers require.

Critical Technical Specs

Preventive Maintenance Strategy

When a TDC-3000 system experiences analog input faults — whether manifesting as bad PV readings, channel failures, or UCN communication errors — the root cause is rarely isolated to a single card. Experienced DCS maintenance engineers know that a thorough inspection of the surrounding control cabinet is essential to prevent repeat failures and reduce the risk of cascading shutdowns.

During any planned replacement of the 51304754-176 UCN HLAI module, it is best practice to simultaneously inspect and, where appropriate, pre-stage spares for the following associated components:

The UCN LLAI (Low-Level Analog Input) module — such as the Honeywell 51304485-100 — shares the same card file and UCN bus infrastructure. Degraded LLAI channels often accompany HLAI failures in aging TDC-3000 cabinets, particularly in facilities where thermocouple inputs and millivolt-range signals are processed in adjacent slots. Inspecting LLAI cards during the same maintenance window eliminates the need for a second shutdown.

The UCN Analog Output (AO) module — typically the Honeywell 51304516-100 or equivalent — controls final control elements such as control valves and variable speed drives. In a loop where the HLAI card has failed, the AO module may have been operating in a degraded or saturated state for an extended period. Verifying AO module health during the same outage is a standard step in loop integrity restoration.

The card file power supply module — including Honeywell’s 51401288-100 or 51190493-100 series — is a frequent silent contributor to intermittent card failures. Voltage ripple or marginal output on the 24 V DC rail can cause HLAI modules to report spurious faults without triggering a hard power alarm. Replacing or bench-testing the card file PSU alongside the HLAI card is a low-cost step that significantly reduces callback risk.

The UCN Highway Interface Module (HIM) and associated UCN coaxial cable assemblies should be inspected for connector oxidation, cable jacket integrity, and termination resistance. UCN communication errors are frequently misdiagnosed as card failures when the actual fault lies in the coaxial bus infrastructure. Stocking a spare HIM — such as the Honeywell 51401195-100 — is recommended for any facility running a TDC-3000 system beyond its original design life.

The Honeywell PM (Process Manager) or HPM (High-Performance Process Manager) controller module that hosts the UCN network should also be evaluated during extended outages. HPM modules such as the 51401642-150 are long-lead items; maintaining at least one cold spare in your facility inventory is a recognized best practice for TDC-3000 lifecycle management.

Finally, field terminal assemblies (FTAs) — including the Honeywell 51196682-100 and related marshalling panel components — connect field wiring to the card file via cable harnesses. Corroded or loose FTA connections are a common source of analog input drift and channel-to-channel crosstalk. Inspecting FTA terminal blocks, fuse modules, and signal isolators during the same maintenance event ensures that a newly installed HLAI card is not immediately compromised by upstream wiring issues.

Strategic Replacement Solutions

The Honeywell TDC-3000 platform, while no longer in active production, remains operational in thousands of facilities globally. Honeywell’s own lifecycle support for TDC-3000 hardware has transitioned to a limited-availability model, meaning that OEM-sourced replacements for modules like the 51304754-176 are increasingly difficult to obtain through standard procurement channels and often carry extended lead times of 12–26 weeks.

Sourcing original spare modules through specialist industrial automation suppliers — with verified stock, pre-shipment testing, and documented warranty coverage — is the most effective strategy for maintaining system uptime without committing to a full DCS migration. The 51304754-176 is a direct, slot-compatible replacement for any TDC-3000 or TPS card file configured for UCN HLAI service. No firmware changes, no reconfiguration of the UCN highway, and no modification to existing field wiring are required. The replacement module is recognized automatically by the system upon insertion, provided the card file slot assignment and UCN node address are correctly configured in the system database.

For facilities managing a phased migration from TDC-3000 to a modern DCS platform — such as Honeywell Experion PKS — maintaining a reliable inventory of original TDC-3000 spare modules extends the operational life of the legacy system during the transition period, reducing the pressure to accelerate migration timelines due to hardware unavailability. This approach protects capital budgets and allows engineering teams to execute migrations on a planned, risk-managed schedule rather than in response to emergency hardware failures.

Support FAQ

Q1: Is the 51304754-176 compatible with both TDC-3000 and TPS (TotalPlant Solution) systems?
Yes. The UCN HLAI module 51304754-176 is compatible with Honeywell TDC-3000 and TPS card files that use the UCN (Universal Control Network) bus architecture. The cross-reference part number 51307687-176 is functionally equivalent and can be used interchangeably in the same card slot. Always verify the card file slot type and UCN node configuration in your system engineering database before installation.

Q2: What pre-shipment testing is performed on this module?
Each unit undergoes functional verification prior to shipment, including power-on self-test confirmation, channel continuity checks, and visual inspection for component damage or corrosion. Units that do not pass functional verification are not shipped. A 12-month warranty from the date of shipment covers defects in materials and workmanship under normal operating conditions.

Q3: How should I manage spare parts inventory for a TDC-3000 system approaching end-of-support?
For TDC-3000 systems in extended operation, industry best practice recommends maintaining a minimum of one cold spare for each critical card type installed in your system — including HLAI, LLAI, AO, and DI/DO modules — as well as one spare HPM or PM controller module per UCN network segment. Given the declining availability of new-old-stock TDC-3000 hardware, procurement lead times should be factored into your annual maintenance budget cycle. Bulk procurement of high-consumption spare types (such as HLAI and AO cards) at a 2–3 year consumption rate is a cost-effective strategy when verified original stock is available.

Q4: What is the lead time and shipping process for this module?
In-stock units typically ship within 3–5 business days following order confirmation and payment. International shipments are supported with standard commercial export documentation. Expedited shipping options are available upon request. For large-quantity orders or facility-wide spare parts packages, please contact our sales team directly to discuss consolidated shipment and volume pricing.
